MODELS 12190, 12191 & 12193 3HP, 5HP & 6.5HP MODEL TILLERS
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
1 9512 Retainer, Snap Ring, “E” Type ..... 2
2 9511 Retainer, Snap Ring ..................... 4
3 1166-1 Shim, 0.062” Thick...................... A/R
1166-2 Shim, 0.030” Thick...................... A/R
1166-3 Shim, 0.015” Thick...................... A/R
1166-4 Shim, 0.010” Thick...................... A/R
1166-5 Shim, 0.005” Thick...................... A/R
4 1086 Bushing, Bronze .......................... 4
5 1916722 Wheel Shaft (A) ........................... 1
5 1916741 Wheel Shaft (B) ........................... 1
5 1916739 Wheel Shaft (C) ........................... 1
6 9305 Key, Hi Pro, 1/4 x 1...................... 1
7 1132-2 Spacer ......................................... 4
8 1904278 Worm Gear, Wheel Shaft ............. 1
9 1915074 Tiller Shaft ................................... 1
10 1104 Woodruff Key, Tiller Shaft............ 1
11 1916542 Worm Gear, Tiller Shaft ............... 1

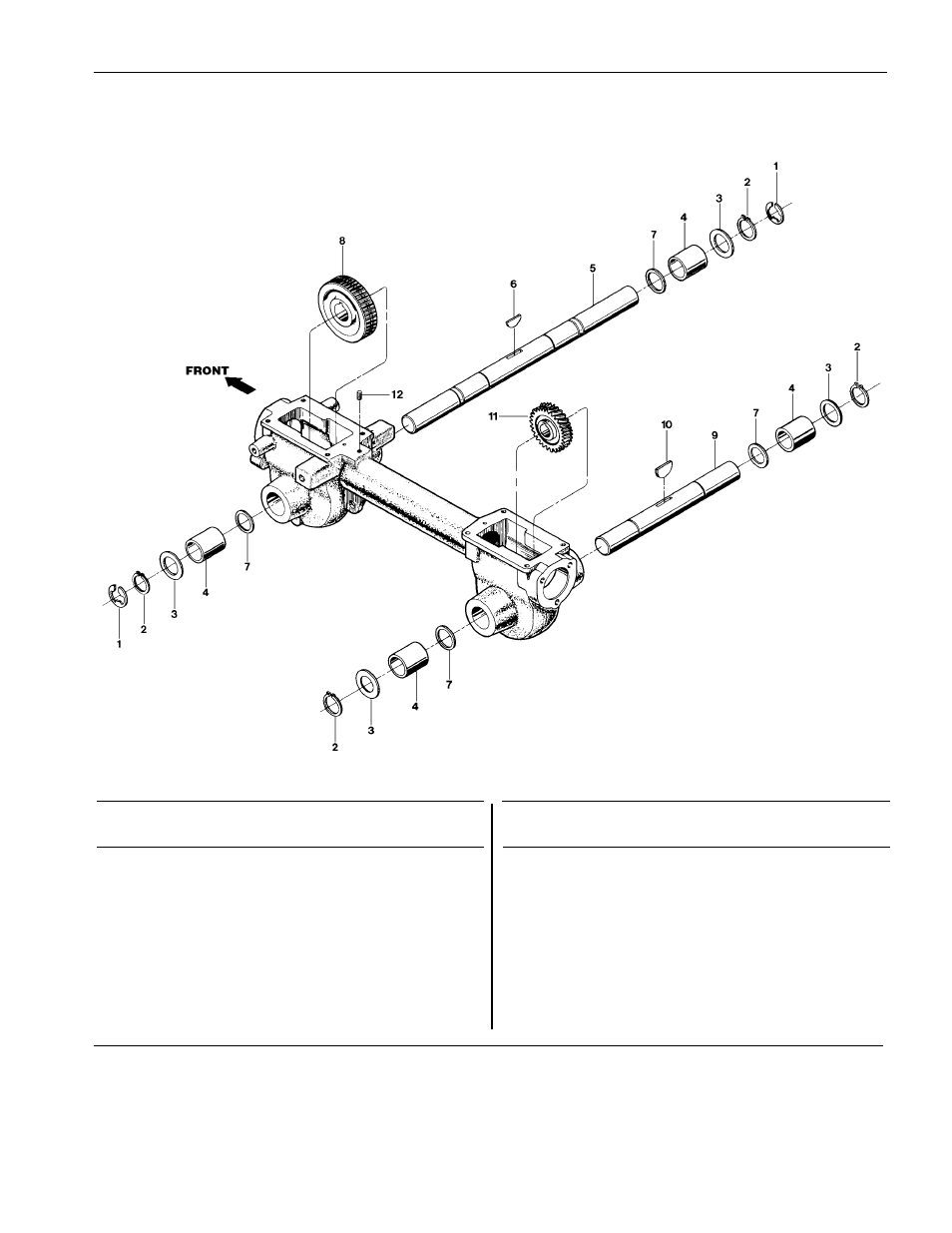

WHEEL AND TILLER SHAFT ASSEMBLIES
A/R – As Required
(A) Model 12190 – 3HP
(B) Model 12191 – 5HP
(C) Model 12193 – 6.5 HP
