3HP, 5HP & 6.5HP MODEL TILLERS MODELS 12190, 12191 & 12193

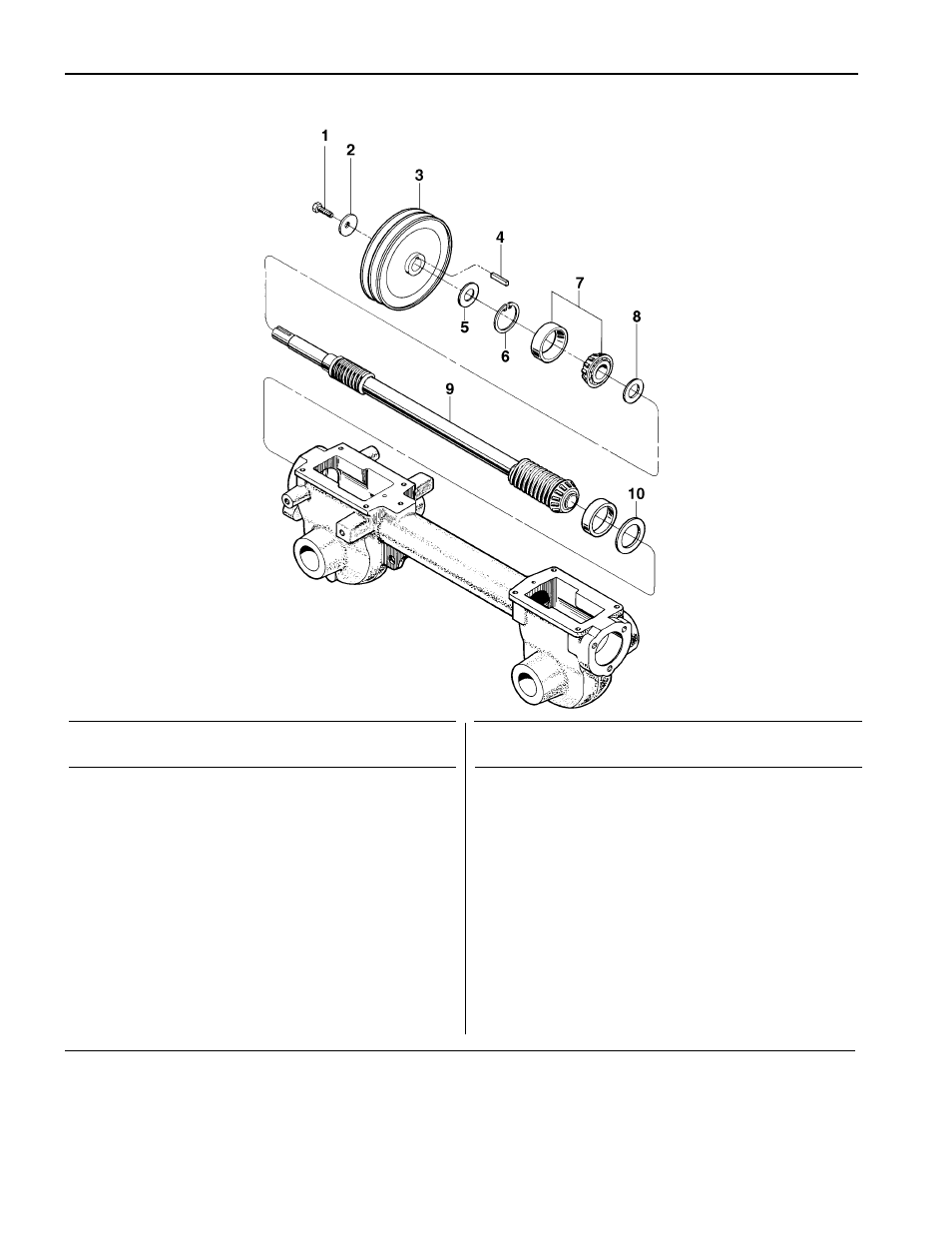

DRIVE SHAFT ASSEMBLY
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
1 1100004 Hex Screw, (A) 5/16-24 x 3/4
Grade 5 ....................................... 1
1 1100005 Hex Screw, (B), (C) 5/16-24 x 1
Grade 5 ....................................... 1
2 9944 Washer, Belleville ............................ 1
3 1911321 Single Groove Pulley, (A)
Transmission .............................. 1
3 1916532 Double Groove Pulley, (B), (C)
Transmission .............................. 1
4 9301 Key–Transmission Pulley, 3/16 x 1..
5 50027 Support Washer, Front .................... 1
6 9517 Snap Ring ....................................... 1
7 1714 Bearing, Tapered Roller (with race) . 2
8 50043 Support Washer, Rear ..................... 1
9 1916936 Drive Shaft Assembly...................... 1
10 1224-1 Shim, Rear Bearing Cap,
.010 thick ................................... A/R
1224-2 Shim, Same as above except
.030 thick .................................... A/R
1224-3 Shim, Same as above except
.005 thick .................................... A/R
1224-4 Shim, Same as above except
.062 thick .................................... A/R
1325C Shim Set–Includes the following
shims: two #1224-1, two 1224-2,
one 1224-3, and one #1224-4 .... A/R
A/R – As Required
(A) Model 12190 – 3HP
(B) Model 12191 – 5HP
(C) Model 12193 – 6.5 HP
