PLANNING AND INITIAL STEPS
We strongly recommend that you start your planning with a meeting. Make sure
you include all the people needed:
• Project manager and assistant(s)
• Carpenters, painters, electricians, mechanical engineer
• HVAC (heating, ventilation, air conditioning) specialists
• IT personnel
• Architect
It is of vital importance that all parties agree on who is going to do what and when,
before you start the installing the system.
ChECklist bEforE tANDbErG iNstAllAtioN
room sizE
Room Dimensions
without second row
Room Dimensions
with second row
depth width depth width height
Minimum
410 cm
14’ 5
1 ⁄
2
”
675 cm
22’ 2” 438 cm
14’ 4
1 ⁄
2
”
675 cm
22’ 2” 211 cm
6’11”
Optimal /
Maximum 466 cm
15’ 3
1 ⁄
2
”
720 cm
23’ 7” 508 cm
16’ 8” 720 cm
23’ 7” 245 cm
8’
width
dep
th
he
igh
t
Door oPENiNG AND PlACEmENt
tip! More on room size can be found in the
document tANDbErG telepresence t3
room requirements.

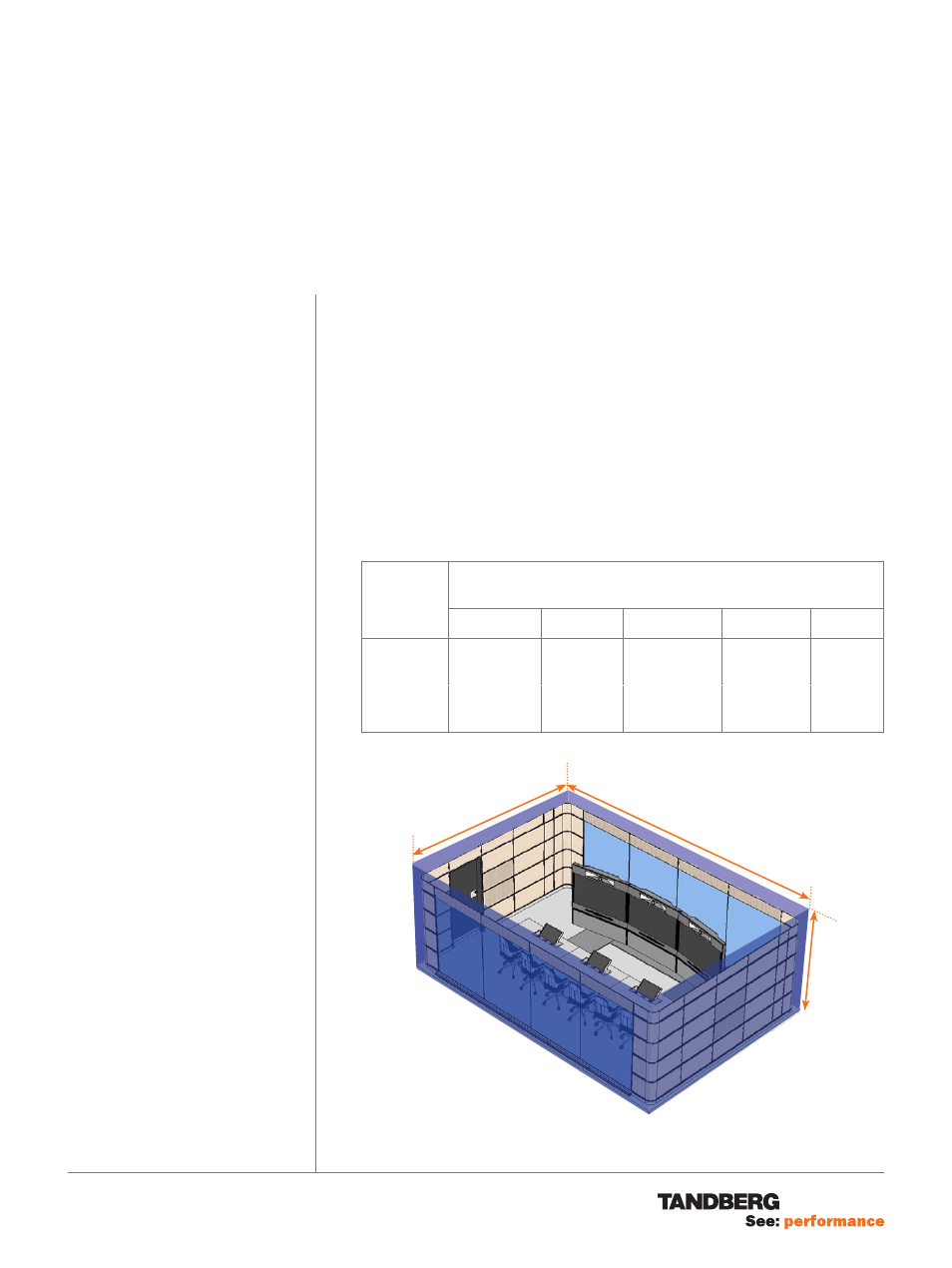

right: Defining the terms depth, width
and height. Note that room dimensions
refer to an empty room before T3 specific
walls and ceiling have been mounted.
Included in the TANDBERG Immersive
Room Package:
• Glass wall accessories T3
• Glass walls T3
• LED lights T3
• Walnut wall panels T3
• Walnut wall panel corners T3
• Walnut wall panel profiles T3
• Main lighting T3
Not included in the TANDBERG
Immersive Room Package:
• Wall lattice construction materials
• Entrance door
• Rockwool or similar insulation material
Special tools required:
• Saw for gypsum with integrated dust
extration
Suggested Workflow
Preparing your room:
• Electricity 2 days
• HVAC 3 days
• Walls w / wooden structure 1 week
• Ceiling 1 day
TANDBERG Immersive Room:
• Glass panels 1 day
• Wood panels 2–3 days
• Carpet 1 day
• Lighting 2 days
