119077.01 TELEPRESENCE T3 ROOM INSTALLATION GUIDE 12.08
TANDBERG
Telepresence T3
ROOM INSTALLATION GUIDE

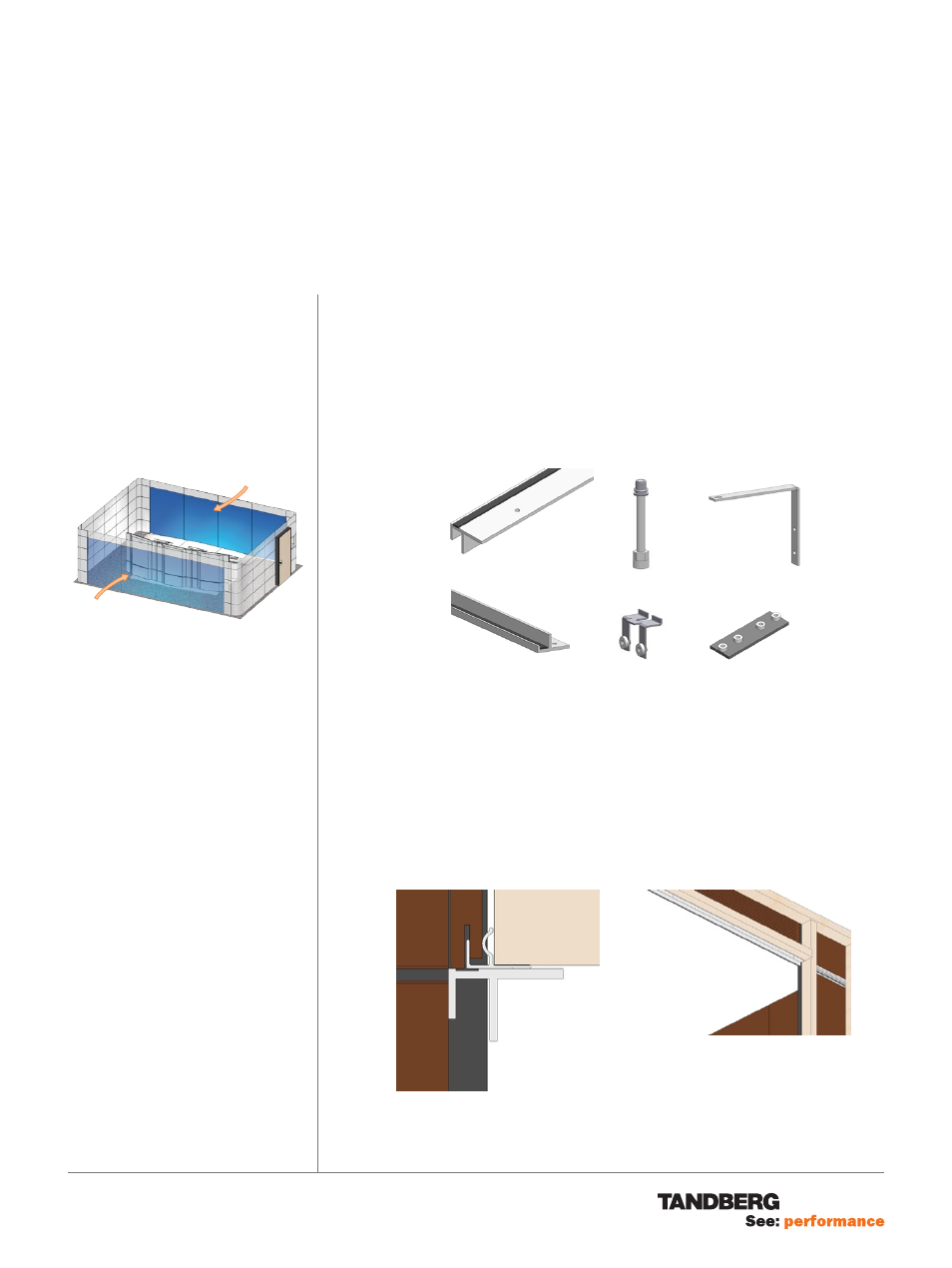

ThE BLUE WALLS
Note! These items are included in the Immersive Room Package.
What to unpack: Unpack the two boxes marked
• Glass wall Accessories T3
• Glass walls T3
box contents:
• The box marked Glass wall Accessories t3 contains the following items:
• The box marked Glass walls t3 contains the following items:
8 glass panels, each consisting of 9 mm ( 5 ⁄
16
”) glass, with the dimensions of
1964 mm × 1480 mm and with a weight of 65 kg or 142 lbs. per panel.
The glass walls are to be mounted with aluminum profiles, fastened with brackets,
joint brackets and adjusting screws and nuts. Brackets are fastened with M5 screws.
Do as follows:
1. Mount the upper profiles to the lattice.
tip: Wear gloves at all times when handling
the glass plates.
Caution! The glass panels should be
handled by authorized personnel only.
Caution! Glass plates should always be
stored in upright position.
Caution! The weight of the entire glass
plate should never rest on just one corner.
There are two blue walls altogether, one
behind the participants and one behind the
screens.
The blue wall behind
the participants
The blue wall
behind the screens
8Ч
16Ч
16Ч
6Ч
8Ч 16Ч
