Interface Selection Guide Texas Instruments 4Q 2006
TMDS (for HDMI and DVI)
Transition Minimized Differential Signaling
(TMDS) is the electrical level standard used
to transmit Digital Visual Interface (DVI) and
High-Definition Multimedia Interface
(HDMI) data.
Rx1
Rx1
PC
STB
DVD
Allows Distant Connection
to Connector Socket
Rx
Rx2
Main Picture
in
TV
TV
TV
Game
Console
STB
DVD
PC
Design Considerations
Intra-Pair Skew – The time difference
between the true and complementary signals
of a given differential pair should be kept as
small as possible.
Residual Jitter – The difference in the
amount of measured jitter between the test
point and the signal source. It is the allowable
maximum residual jitter is equivalent to the
minimum jitter budget between transmitter
and receiver.
ESD – External connectors being exposed
to the outside world are especially susceptible
to electrostatic discharge. A higher ESD
rating provides improved protection.
Intra-Pair (ps) Inter-Pair Clock P-P Data P-P
No. of No. of Skew Skew Jitter Jitter ICC (max) ESD HBM Pin/
Device Description Inputs Outputs (max) (max) (ps) (max) (ps) (max) (ps) (mA) (kV) Package Price*
TMDS141 HDMI Hider 1 1 50 100 30 — 150 5 40QFN Web
TMDS341A 3-to-1 DVI/HDMI Switch 3 1 50 100 30 50 230 5 80TQFP 3.50
TMDS442 4-to-2 DVI/HDMI Switch 4 2 50 100 30 — 550 5 128TQFP Web
TS3DV416 4-to-1 Analog Switch 4 1 — — — — — 2 48TSSOP, 2.00
for DVI/HMDI 48TVSOP
TS3DV520 4-to-1 Analog Switch 5 1 — — — — — 2 56QFN 2.97
for DVI/HMDI
*Suggested resale price in U.S. dollars in quantities of 1,000. New products are listed in bold red.
Preview products are listed in bold blue.

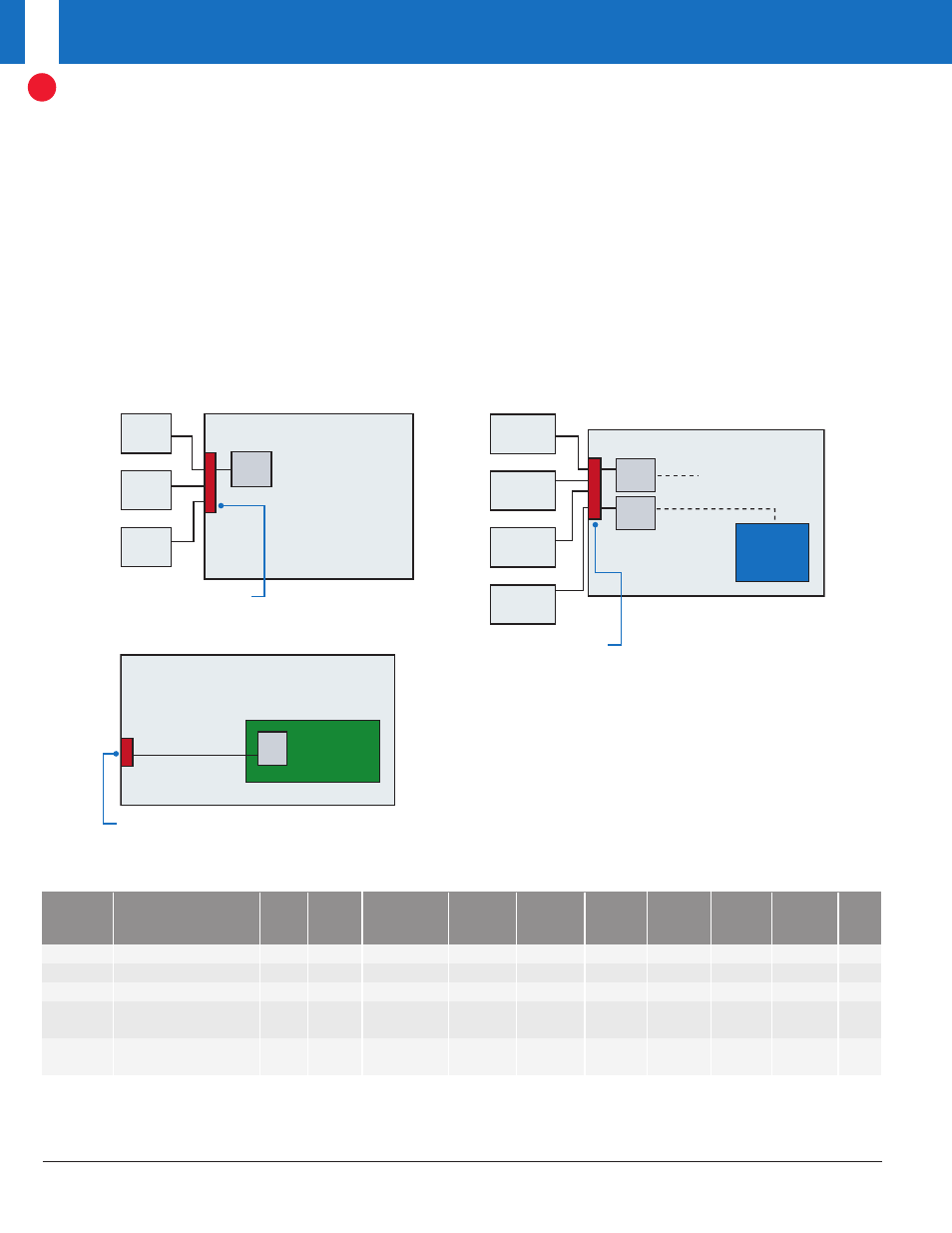

TMDS141 HDMI Hider.
TMDS442 4-to-2 Mux.
TMDS341A 3-to-1 Mux.
