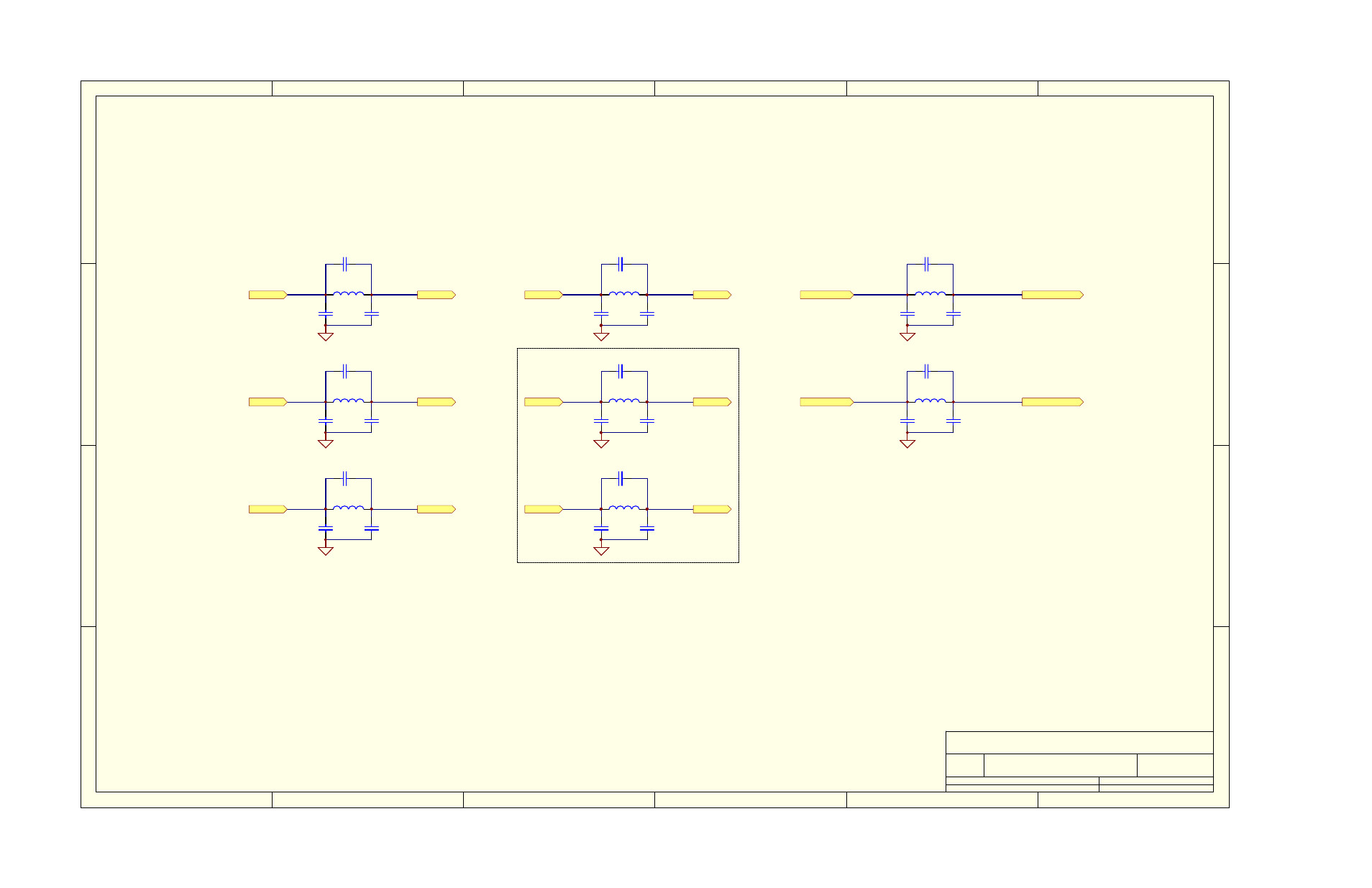

TVP5160EVM - ANTI-ALIASING FILTERS
L4
2.2uH
L3
1.8uH
C13
330pF
C15
330pF
C11 8.2pF
C12
220pF
C4
5.6pF
C14
220pF
L8
2.2uH
C25
330pF
C26
330pF
C24 8.2pF
CVBS_IN
CVBS_OUT
Y_OUT
C_OUT
Y_IN
C_IN
L2
2.2uH
L1
1.8uH
C8
330pF
C10
330pF
C6
8.2pF
C7
220pF
C3
5.6pF
C9
220pF
L7
2.2uH
C22
330pF
C23
330pF
C21 8.2pF
Y/G_IN
Y/G_OUT
Pr/R_OUT
Pb/B_OUT
Pr/R_IN
Pb/B_IN
L6
2.2uH
C18
330pF
C20
330pF
C16 8.2pF
L9
2.2uH
C29
330pF
C31
330pF
C27 8.2pF
SCRT_GRN_OUT
SCRT_BLUE_OUT
SCRT_GRN_IN
SCRT_BLUE_IN
CVBS_IN
CVBS_OUT
Y_IN
Y_OUT
C_IN
C_OUT
Y/G_IN
Y/G_OUT
Pb/B_IN
Pb/B_OUT
Pr/R_IN
Pr/R_OUT
SCRT_GRN_IN
SCRT_GRN_OUT
SCRT_BLUE_IN
SCRT_BLUE_OUT
COMPONENT - YPbPr
CVBS & S-VIDEO
SCART - CVBS & RGB (RED & CVBS shared w/ SV)
NOTE: SV- (Y/C) is shared with SCART - (CVBS/RED)
These anti-aliasing filters are used for both sets of inputs.
