Controls & Features
4
10
Engine Controls
See the separate Engine Operator’s Manual for information and
functions of the engine controls.
Forward Tine Engagement Lever
The forward tine control lever is located beneath the upper
section of the handle. Squeezing the lever against the handle
engages the tine drive. Release the lever to stop the tines.
Depth Stake
The depth stake controls the tilling depth.
Tiller Tines
Tilling tines are used to cultivate, furrow and prepare your
garden for seeding.
Handle Knob
The handle height may be adjusted. Loosen the knob to change
the position. Tighten hardware when complete.

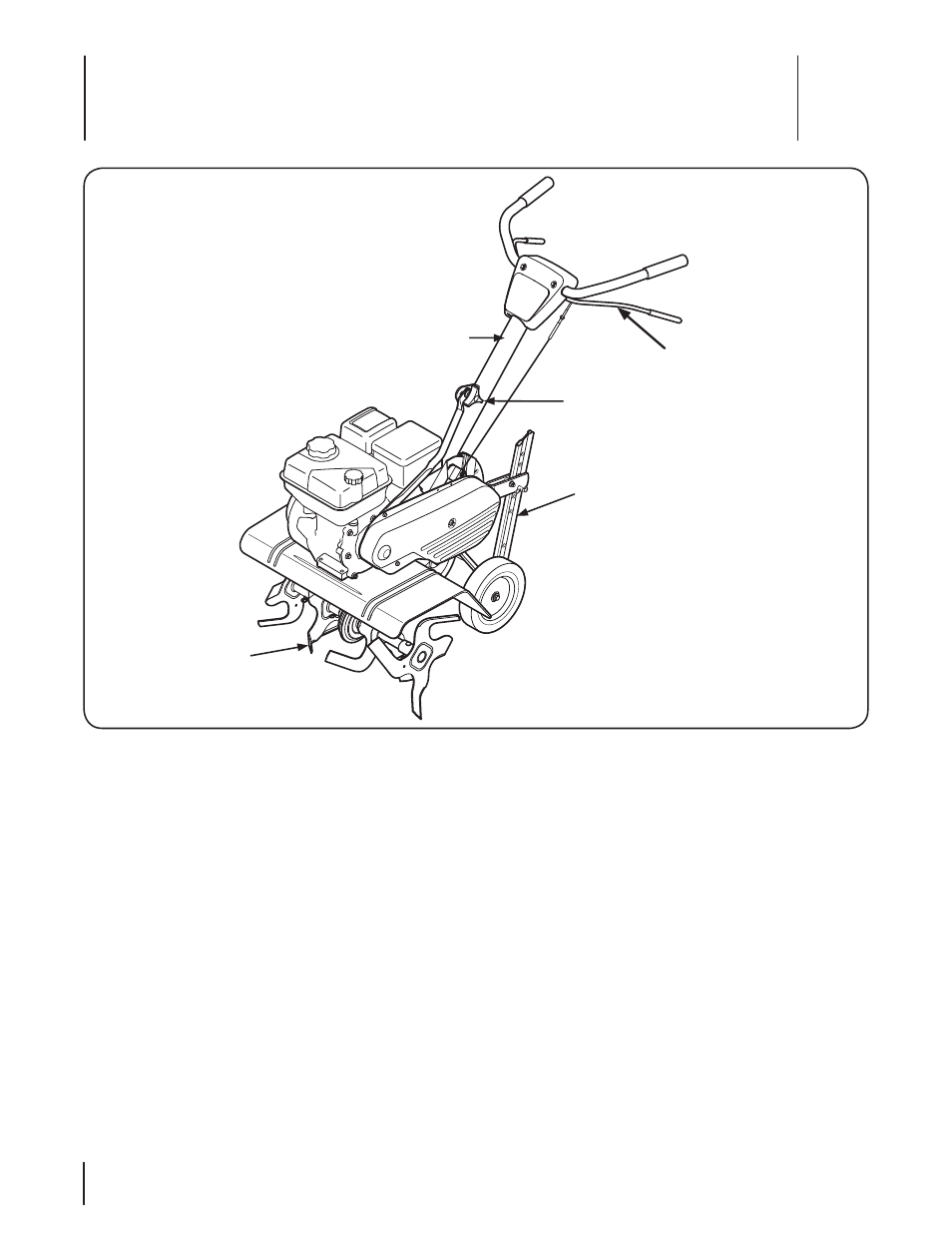

Handle
Tiller Tines
Depth Stake
Handle Knob
Forward Tine
Engagement Lever
Figure 4-1
