Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber cable
Bit Error Rate: <10-9
single mode fiber (recommended): 9 μm
Multimode fiber (recommended): 62.5/125 μm
Multimode fiber (optional): 100/140, 85/140, 50/125 μm
M/GE-PSW-SX-01 (SC) 850nm multimode
Fiber Optic Transmitter Power: min: -10.0 dBm max: -4.0 dBm
Fiber Optic Receiver Sensitivity: min: -17.0 dBm max: -0.0 dBm
Link Budget: 7.0 dB
M/GE-PSW-LX-01 (SC) 1310 nm single mode
Fiber-optic Transmitter Power: min: -9.5 dBm max: -3.0 dBm
Fiber-optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm
Link Budget: 10.5 dB
The fiber optic transmitters on this device meet Class I Laser safety requirements per
IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.
Copper cable
Category 5 and Category 5e: minimum requirement
Gauge 24 to 22 AWG
Attenuation 22.0 dB /100m @ 100 MHz
Maximum Cable Distance 100 meters
• Straight-through or crossover twisted-pair cable may be used.
• Shielded (STP) or unshielded (UTP) twisted-pair cable may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network.
• All four pairs are used in a gigabit Ethernet network.
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

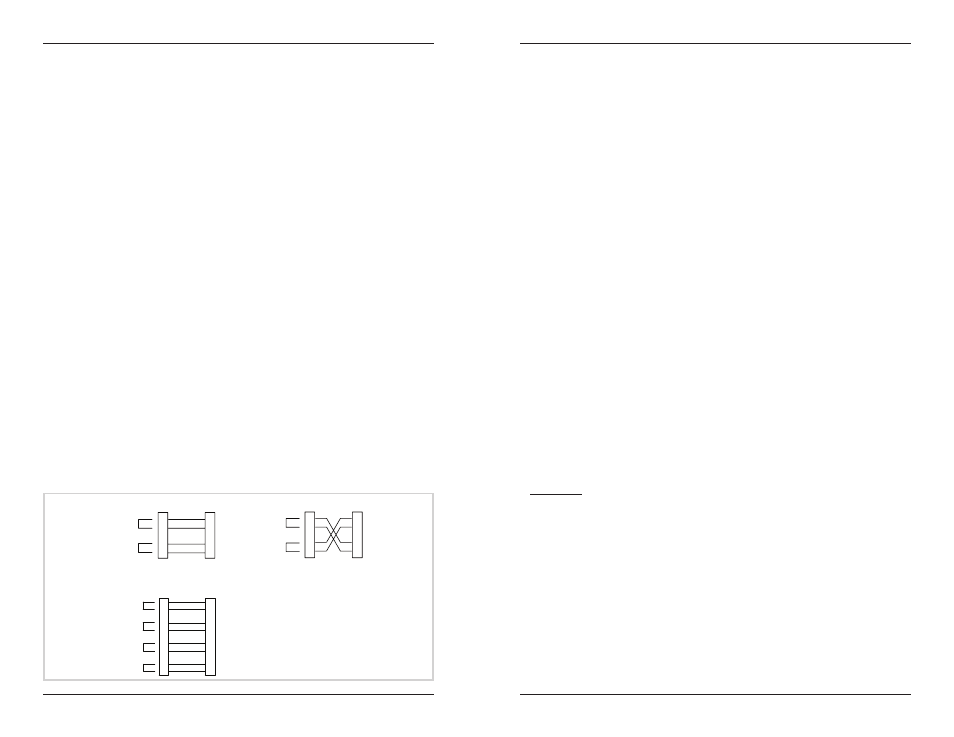

CAT5e Gigbit Ethernet
Straight-Through Cable
Twisted Pair #2
Twisted Pair #1
Twisted Pair #4
Twisted Pair #3
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Twisted Pair #1
Twisted Pair #2
Twisted Pair #1
Twisted Pair #2
1
2
3
6
1
2
3
6
1
2
3
6
1
2
3
6
e l b a C r e v o s s o r C e l b a C h g u o r h T t h g i a r t S
[email protected] -- Click the “Transition Now” link for a live Web chat. 11
Technical Specifications
For use with Transition Networks Model M/GE-PSW-xX-01 converters.
Standards: IEEE 802.3-2000
Data rate: 10 Mb/s, 100 Mb/s, 1000 Mb/s
Dimensions: 1.8"W x 3.35"D x 0.85"H (45.7 x 85.1 x 21.6 mm)
Weight: 3.15 oz. (127.5 g) approximately
MTBF*: 24,466 hours (MIL217F2 V5.0) (MIL-HDBD-217F)
100,130 hours (Bellcore7 V5.0)
Packet size: Memory: 9256K bytes
MAC addresses: 8K
Maximum packet size: 1632 bytes, untagged
1628 bytes, tagged
Power sources: Unit will accept - 5 to 28 VDC
Barrel connector - Wall Mount AC Adapter
(400mA at 12VDC)(The external power supply provided
with this product is UL listed by the power supply’s
manufacturer.)
Power consumption: 262mA @ 12VDC, 3.15 watts
Environment: Tmra**: 0°C to 50°C (32°F to 122°F )
Storage Temp: -25°C to 65°C (-13°F to 149°F)
Humidity: 5% to 95%, non-condensing
Altitude: 0 to 10,000 feet
Warranty: Lifetime
*MTBF is estimated using the predictability method. This method is based on MIL-
217F at 25°C ambient temperature, typical enclosure heat rise of 10°C with nominal
operating conditions and parameters. Installation and configuration specific MTBF
estimates are available upon request. Contact Technical Support.
**Manufacturer’s rated ambient temperature.
CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232,
RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-
building (inside plant) link segments that are not subject to lightening transients or
power faults. Copper-based media ports, e.g., Twisted Pair (TP) Ethernet, USB,
RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-
building (outside plant) link segments that are subject to lightening transients or power
faults. Failure to observe this caution could result in damage to equipment.
