E6581295⑥
- 7 -

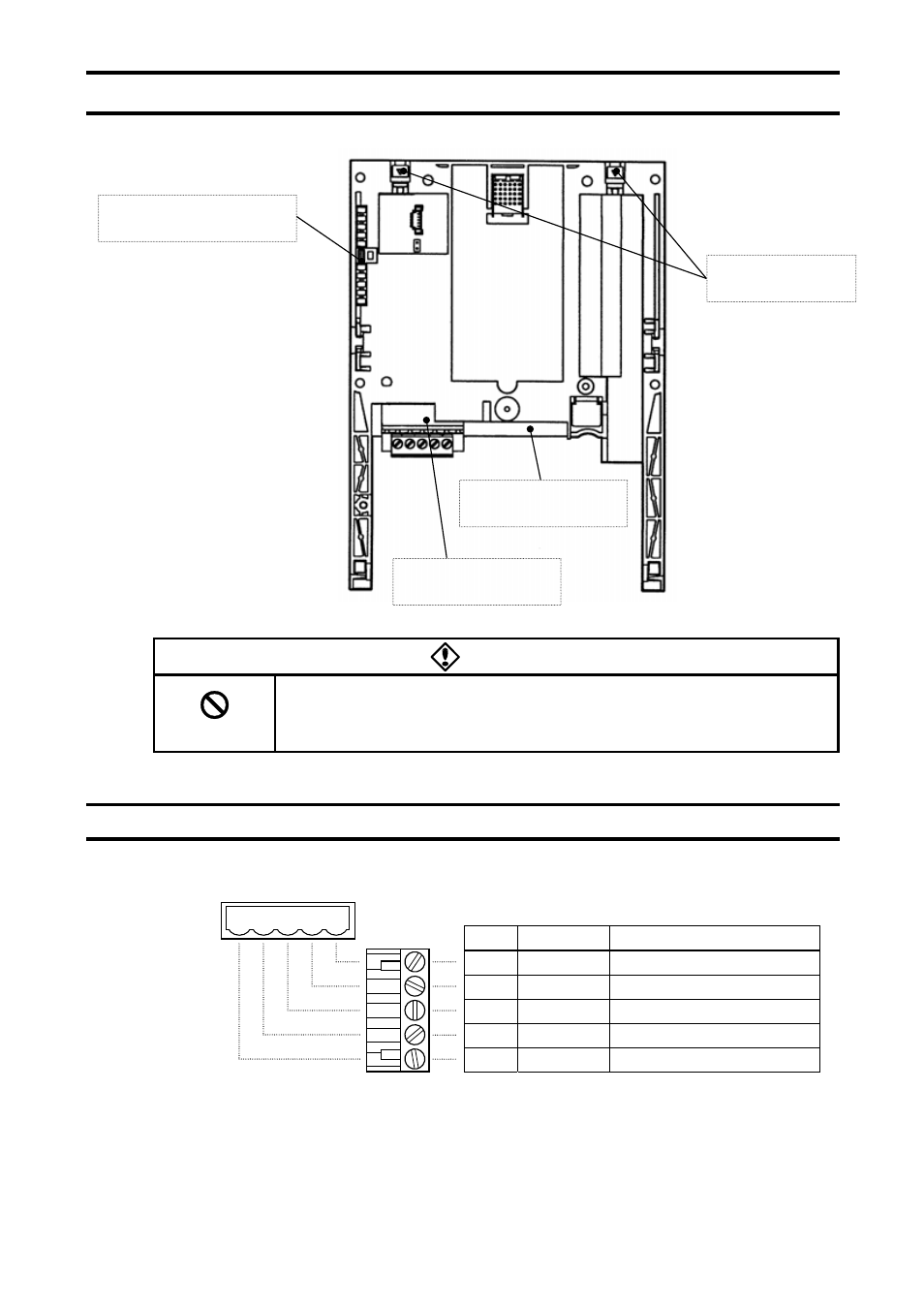

2. Exterior features
The external view of this option and the name of each part are shown below:
Danger
Prohibited
▼ Do not change the switch setting when the power is on.
It could lead to electric shocks, or the option might breaks down or get
damaged.
2.1. DeviceNet connector
Used to connect DeviceNet network cables. The terminal is a plug-type and the signal of each
terminal is as follows.
Size of connectable wire: 0.3 to 1.5mm 2 (AWG 22 to 16), Strip-off length: 7mm
Tightening torque: 0.5 to 0.6 N·m
Recommended screwdriver: Small flat-blade screwdriver (blade thickness: 0.6mm, blade width:
3.5mm or less)
DeviceNet connector
(Refer to Section 2.1)
DeviceNet indicator
(Refer to Section 2.2)
Dip switch
(Refer to Section 4.3)
Panel mounting tabs
(Refer to Section 3)
Color Symbol Signal classification:
Red V+ Network Power Supply (V+)
White CAN_H Communication signal (High)
Silver SHIELD Shield
Blue CAN_L Communication signal (Low)
Black
V- Network Power Supply (V-)
