6. DeviceNet Local/Remote Operation

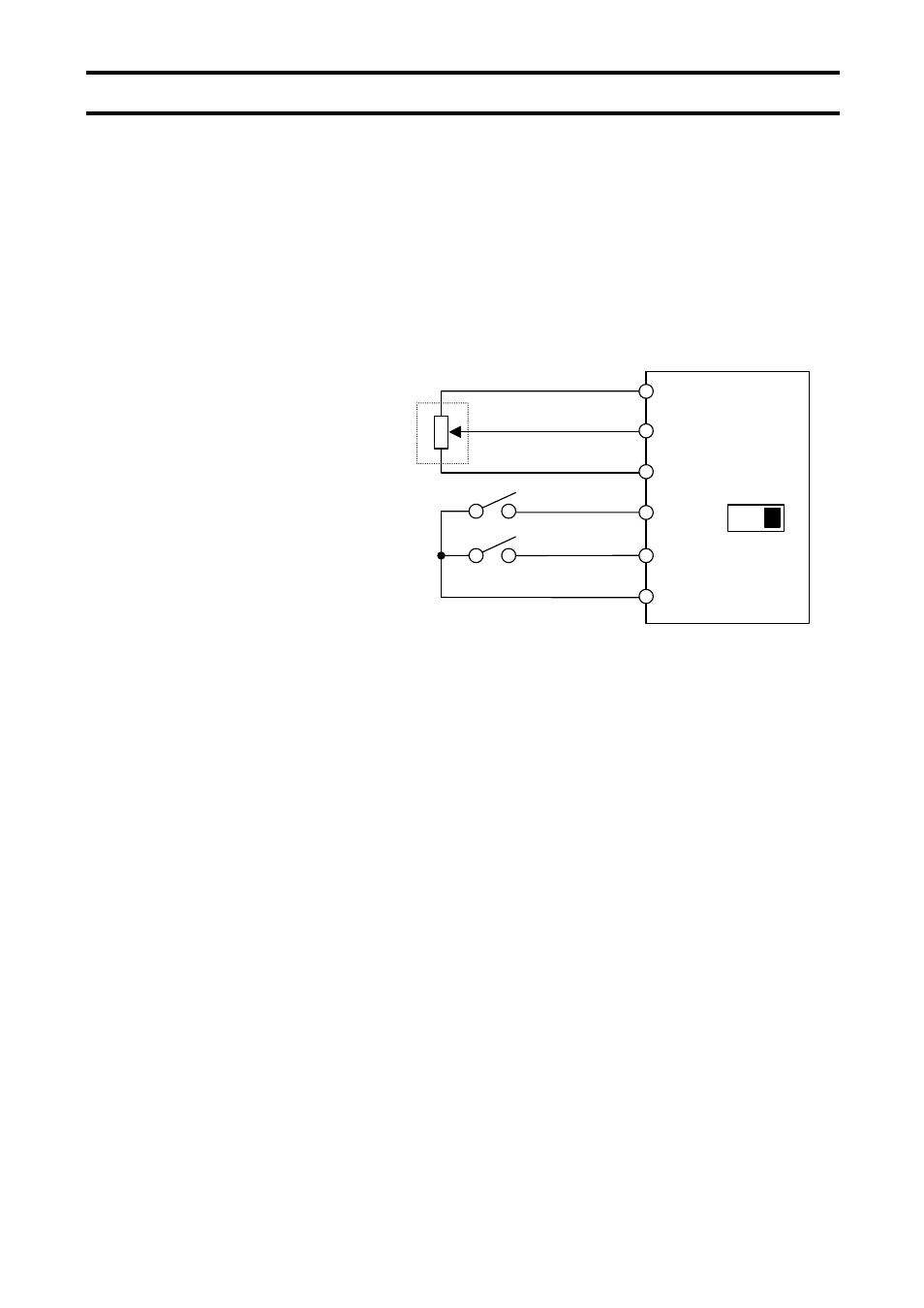

The example below shows how to configure the VF-AS1/PS1 for local / remote operation.

F terminal ............ Operating command
R terminal............ DeviceNet/Local (Terminal in this example) switching
RR/S4 terminal.... Operation frequency command

VF-AS1/PS1

RR/S4

Variable resistor for adjustment

1 -

10k ohm

DeviceNet/Local

Switch

Operation command

SINK

SW1

SOURCE

CCA

cmod

(Command mode selection) = 0 (Terminal board)

fmod

(Frequency setting mode selection 1) = 2 (RR/S4)

f112

(Input terminal selection 2 (R)) = 48 (Remote/Local control)

R-CC terminal open:

VF-AS1/PS1 is controlled as slave device of DeviceNet.

R-CC terminal closed:

F-CC terminal short to RUN
F-CC terminal open to STOP
Output frequency is set up by the RR/S4 signal input.
