■English

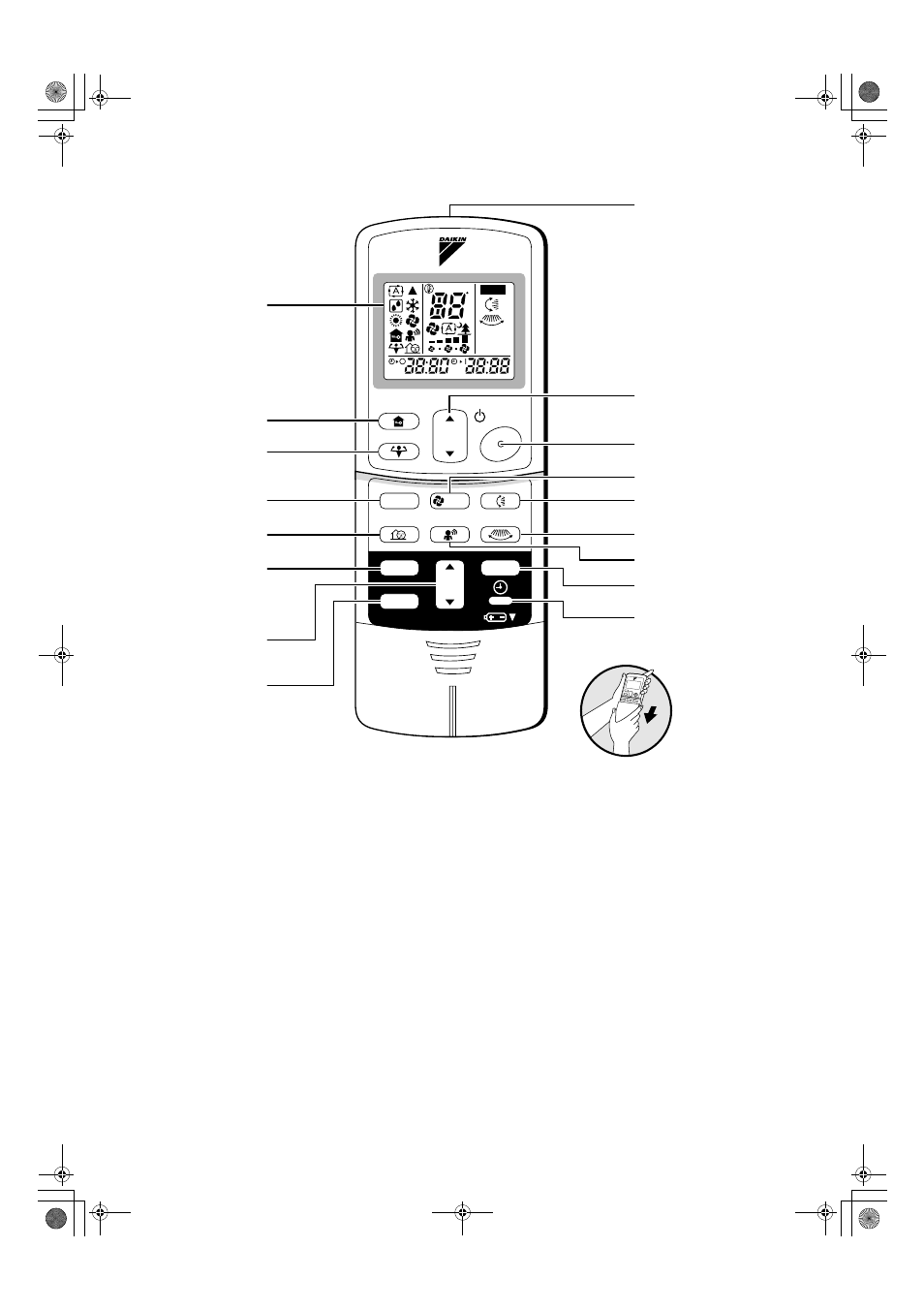

■ Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation (page 16.)
4. POWERFUL button: (Maximum operation)
for POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. SILENT button: for OUTDOOR UNIT SILENT
operation (page 15.)
9. FAN setting button:
• It selects the airflow rate setting.
10. SENSOR button: for INTELLIGENT EYE
operation (page 18.)
11. SWING button: (page 12.)
• Flap (Horizontal blade)
12. SWING button: (page 12.)
• Louver (Vertical blades)
13. ON TIMER button: (page 21.)
14. OFF TIMER button: (page 20.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button: (page 9.)
C
O N
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SILENT SWING
ON CANCEL
OFF
SENSOR
1
2
5
6
9
11
16
17
13
15
14
3
4
7
8
10
12
〈 ARC433A53 〉
