ASSEMBLY INSTRUCTION FOR 29231-16

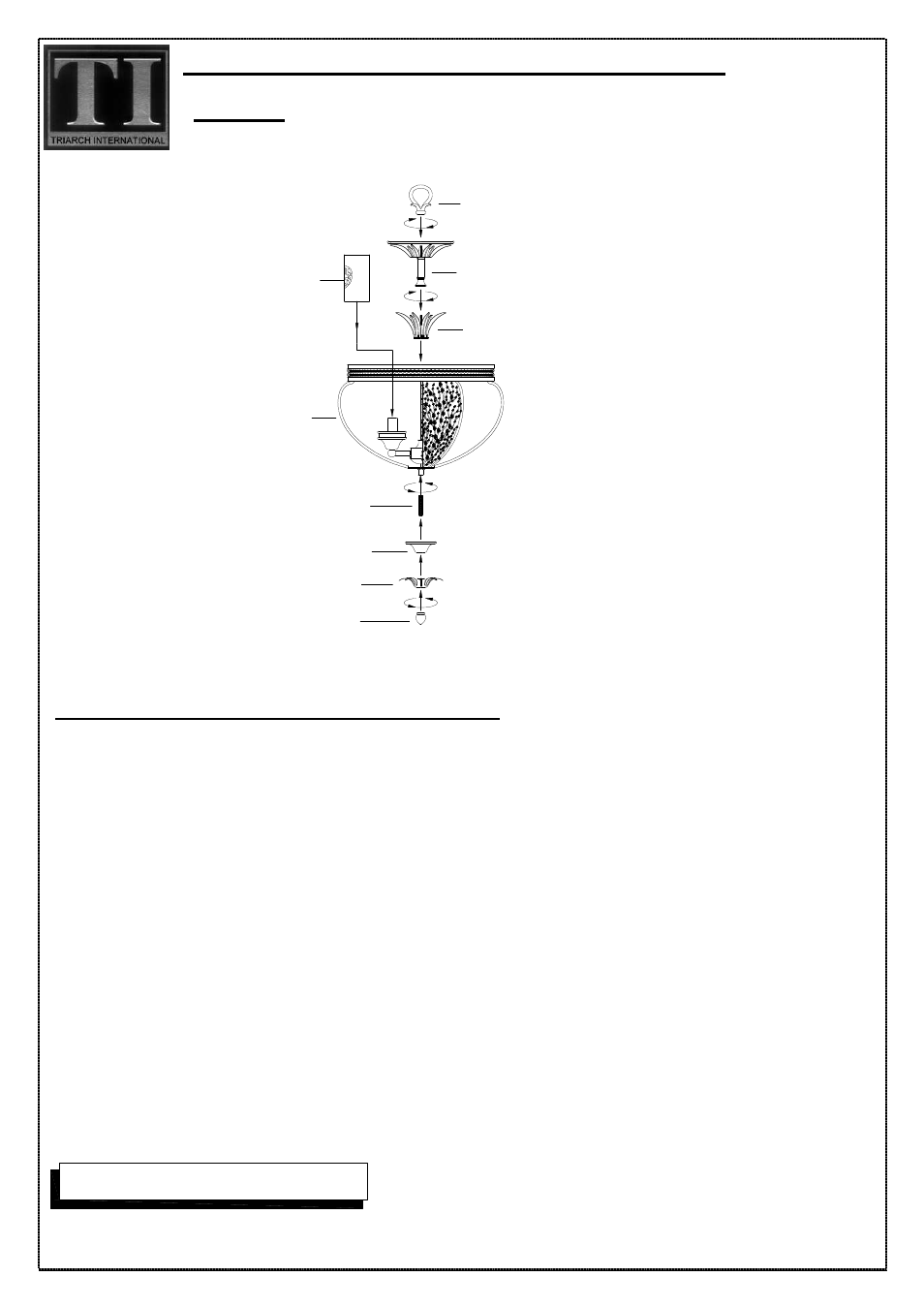

Figure 1.
Glass
Finial
Top assembly
Fixture body
Nipple
leaves (b)
Cap
Leaves (a)
Fixture loop
For chain-hung mounting:(refer to figure 1)
1. Before beginning the assembly, carefully unpack and identify all parts referring to the illustration.
2. Unravel the supply power and ground wires and pass them through the center holes top assembly
and fixture loop in turn.
3. Place leaves (a) over the protruding nipple from top of fixture body, then screw the bottom of top
assembly onto the protruding nipple, screw fixture loop onto the protruding nipple at top of top
assembly. Hands tighten until snug.
4. Thread the top end of nipple into the coupling at the bottom of fixture body. Hands tighten until
snug.
5. Locate the cap and leaves (b) carefully, place them through the bottom end of nipple and secure
with finial as shown in the illustrator.
6. Install proper bulbs (not provided) to each socket referring to the markings and labels on fixture
for maximum wattage.
7. Place glass over each socket.
8. Restore power to the installation point ON. Retain this sheet for future reference.
Page 1 f 2
07.07
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
