Triarch 29230/2 - Manual

07/07 IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!

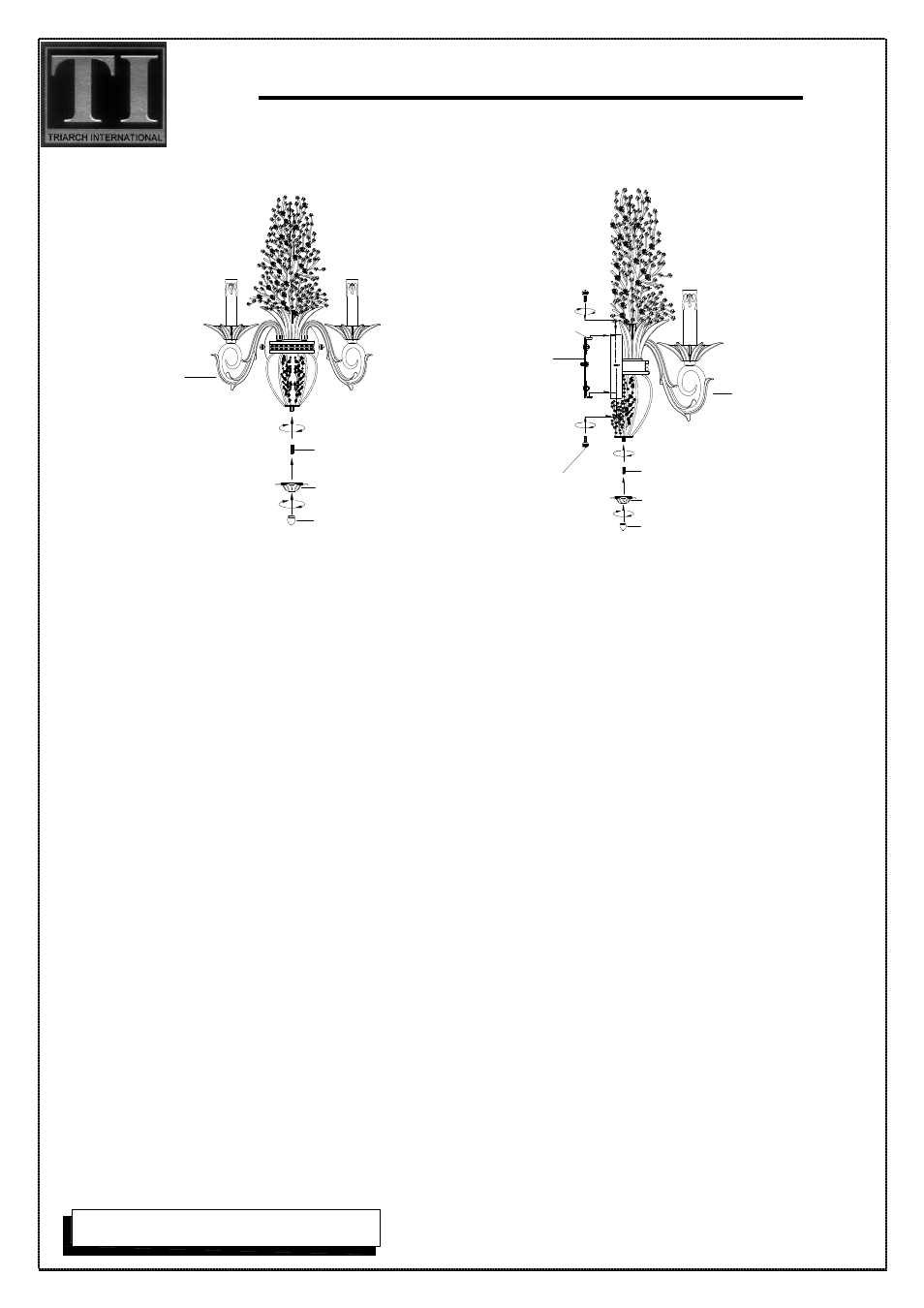

ASSEMBLY INSTRUCTIONS FOR 29230/2
Nipple
Cover
Finial
SIDE VIEW OF FIXTURE
Steel strap
Ball stud
screws
Crossbar with
Fixture body
Fixture body
Nipple
Cover
Finial
FRONT VIEW OF FIXTURE
1. Before beginning assembly, carefully unpack and identify all parts referring to the illustration.
2. Turn off power to the installation point OFF. Locate the crossbar and secure it to the outlet box in
the wall with (2) outlet box screws.
3. Make wires connections: (We recommend 2 people for this step) Locate and attach the house
ground wire to the fixture ground wire. Proceed to attach both to the crossbar with green ground
screw. Using wire connectors connect the house white wire to fixture white (or ribbed side) wire;
connect the house black (or red) wire to the fixture black (or smooth side) wire.
4. Carefully tuck all wires into the wall mounted outlet box and position the fixture over the outlet box.
Align the holes in the back plate with the holes in steel strap mounted at crossbar. Using two ball
studs, attach back plate to crossbar.
5. Install proper bulbs (not provided) to the socket referring to the markings and labels on fixture for
maximum wattage.
6. Restore power to the installation point ON. Retain this sheet for future reference.
