Triarch 29223 - Manual

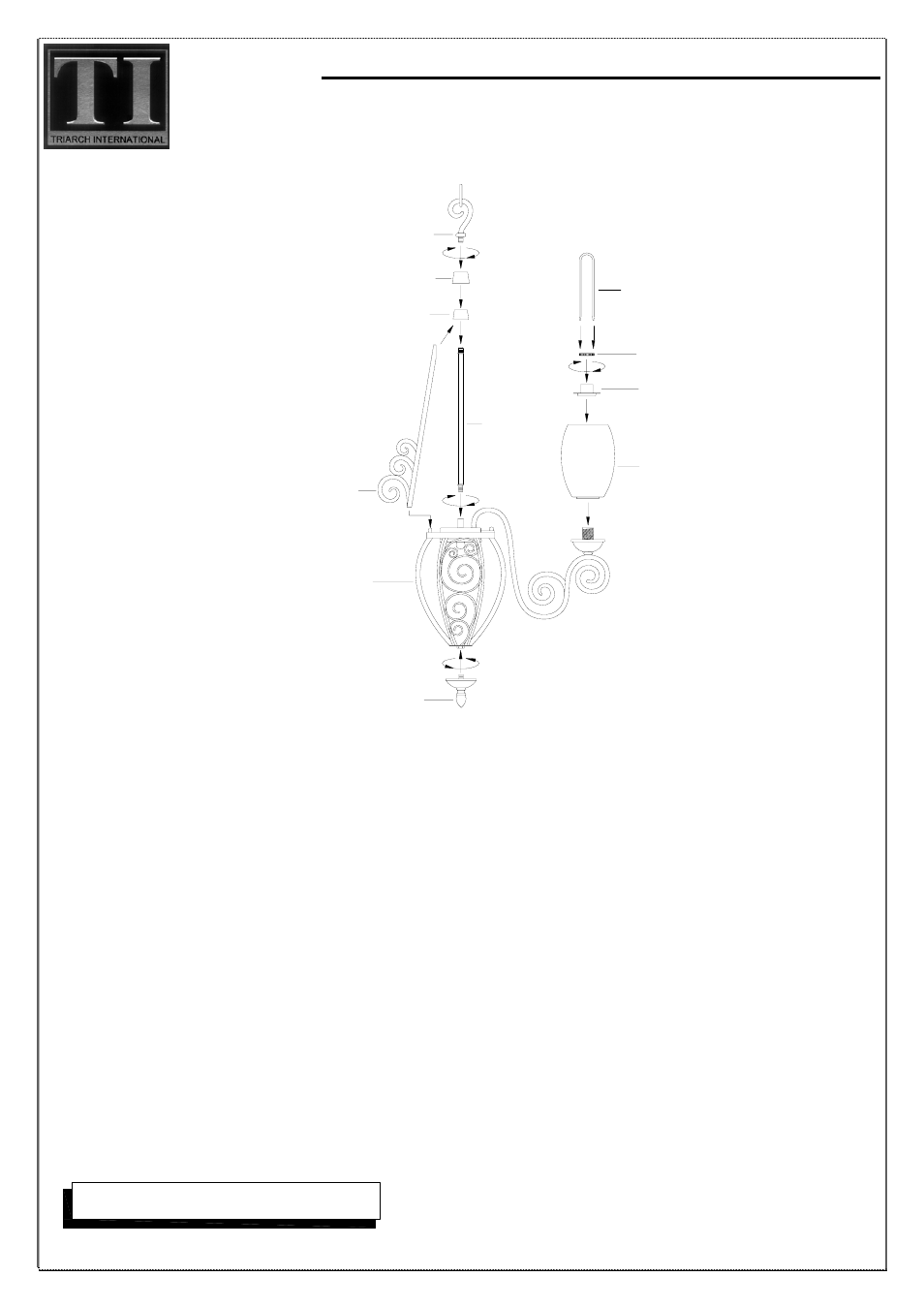

ASSEMBLY INSTRUCTION FOR 29223
Glass
Check ring
Socket ring
Fork
Fixture loop
Cap
Trim
Stem
Fixture body
Arm
Finial
1. Before beginning the assembly, carefully unpack and identify all parts referring to the illustration.
2. Unravel the supply power and ground wires and pass through the center hole of top assembly
and fixture loop.
3. Thread stem into the coupling at the center of fixture body.
4. Install the bottom end of arm onto the protruding nipple of fixture body. Aligning the top end of arm
with side slot of trim, and slide trim over stem and secure them with fixture loop.
5. Thread finial to the coupling at the bottom of fixture body as shown.
6. Carefully place the glass over the socket and secure with check ring and socket ring by fork as
shown in the illustration.
7. Install proper bulbs (not provided) to the socket referring to the markings and labels on fixture for
maximum wattage.
8. Restore power to the installation point ON. Retain this sheet for future reference.
01.07
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
