Toshiba IK-VR01A User Manual
Page 12
- 11 -

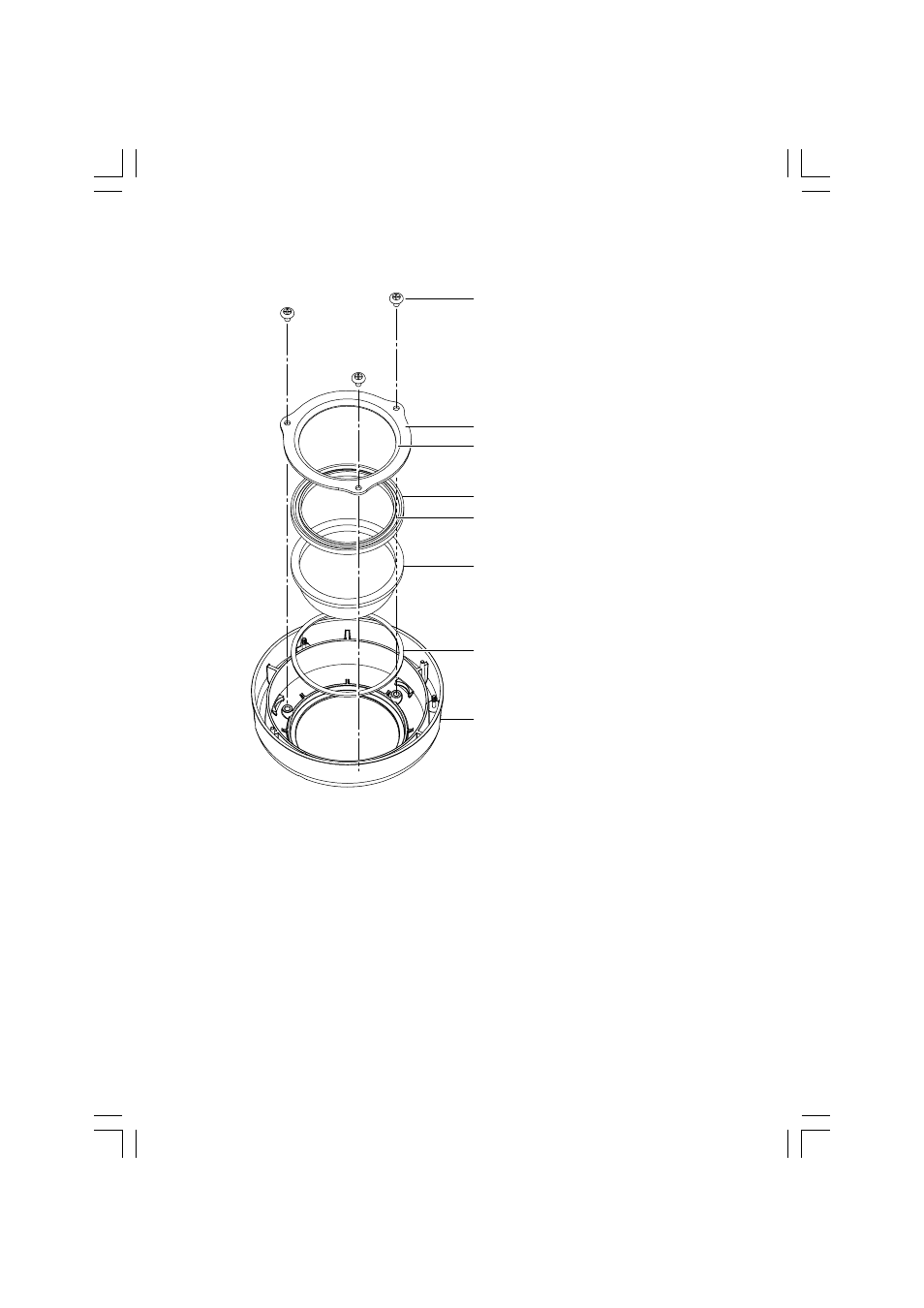

6-2-3 Change of Dome Cover
Screws (x3)
Retainer plate
Put the protruding side downward.
The protruding portion should be set
in the groove of the shock damper.
Shock damper cushion
Note the direction of the damper
cushion.
The groove should be face up.
Dome cover
Gasket
Top cover
Dome replacement
When the dome cover is damaged or to be replaced by
a transparent cover, call your distributor or sales person.
Firmly tighten three mounting screws.
Take care not to let dirt or foreign object enter between
the parts.
