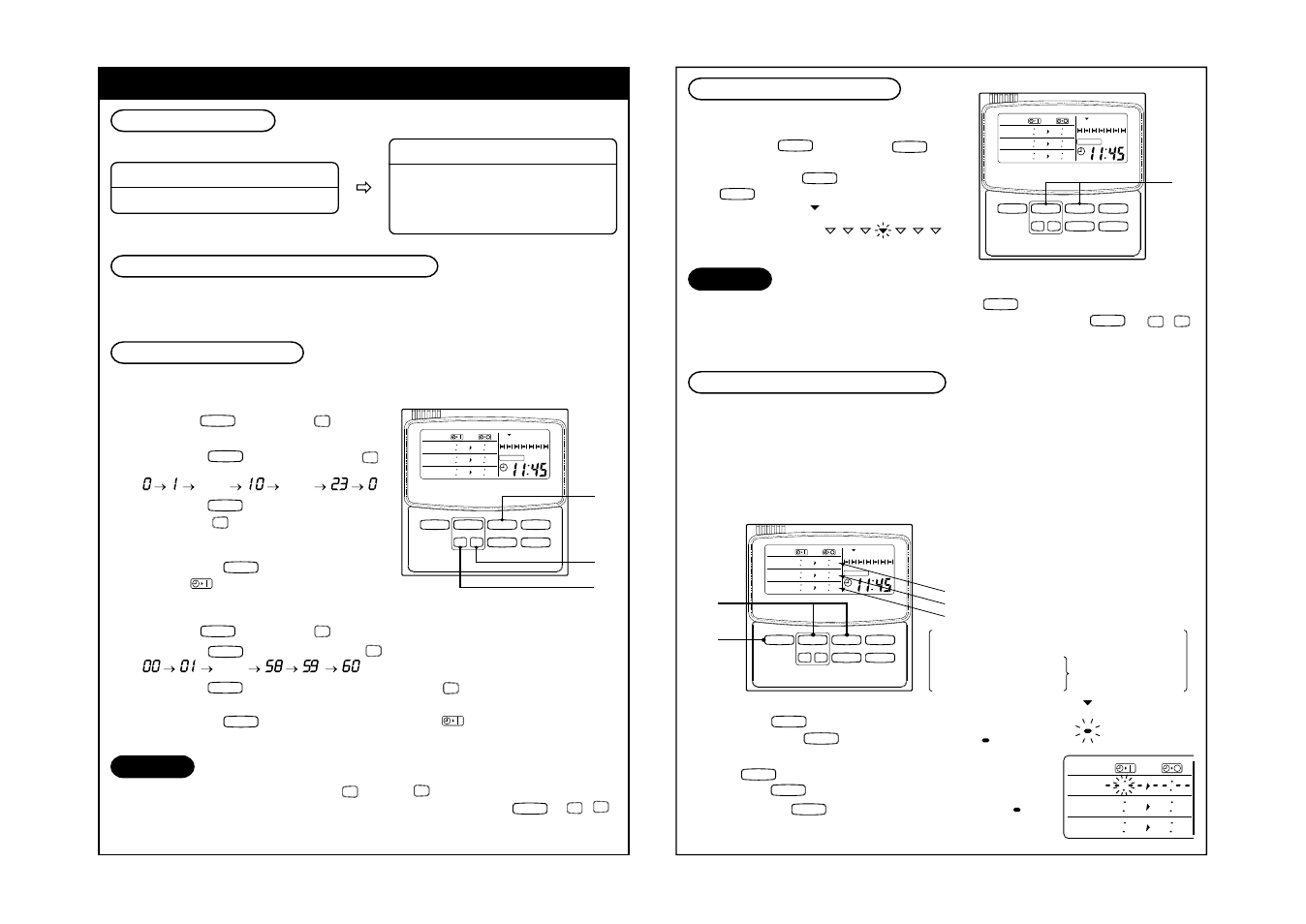

HOW TO USE THE TIMER CORRECTLY
1. Operation procedure
2. Turn on the power supply of the air conditioner
• Turn on the power supply of the air conditioner connected with a program weekly
timer. (For cooling and heating, do not turn off the power supply for compressor
heating.)
3. Setup of the present time
• Set the present time
(Example: Case that the present time is 11:45.)
Power ON
Turn on the power of the air conditioner.
1
While push SET button push HH button
to select “hour” of the present time.
• While push SET button each pushing
HH
button, change sequently.
• • • • • •
• While keep SET button pushed, continu-
ous pushing
HH
button makes fast forward.
(Example: Leave the finger at display of
11, you can set 11 o’clock.)
• When release SET button, the hour is
set, and mark changes flashing to
light.
2
While push SET button push MM button to select “minutes” of the present time.
• While push
SET
button, each pushing MM button change sequently.
• • •
• While keep SET button pushed continuous, pushing
MM
button makes fast forward.
(Example: Leave the finger at display of 45 you can set 45 minutes.)
• When release SET button, the minutes are set, and make changes flashing to
light.
CAUTION
• The time cannot be changed only when HH button or MM button pushed.
• If 30 seconds have passed while the button is flashing without pushing DAY or HH / MM
buttons, the display returns automatically to the original display (Normal display).
In this case, repeat the procedure from the 1st step.
Program weekly timer set up
Setup of the present time
¯
Setup of the present day of the week
¯
Setup of the program operation for a week
WEEKLY TIMER
ERROR
SuMoTuWeTh Fr Sa
PROGRAM1
PROGRAM2
PROGRAM3
CHECK
PROGRAM SET DAY
HH MM CLEAR
CANCEL
1
2
2
1
4. Setup of the day of the week
• Set the today of the week.
(Example: Case of Wednesday)
1
While push SET button push
DAY
button to select “today” of the week.
• While pushing SET button, each push
DAY button, the display of the present
day of the week flashes, and the display
moves in order.
1
First push
PROGRAM
button.
• When pushing PROGRAM button, the reserve mark
flashes.
2
Push DAY button, select the day for operation and
then push SET button.
When pushing
SET
button, the flashed reserve mark
changes, and ON time of the program 1 flashes at the
same time.
CAUTION
• The day of the week cannot be changed only when DAY button is pushed.
• If 30 seconds have passed while the button is flashing without pushing DAY or HH / MM
buttons, the display returns automatically to the original display (Normal display).
In this case, repeat the procedure from the 1st step.
5. How to set program timer operation
Set the present time and the present day of the week surely, otherwise the program
operation is not correctly performed.
This timer can control up to 3 cycle program per day.
(1 cycle or 2 cycles can be also set up.)
The following items can be set to the program operation.
• Setup of [ON] ® [OFF] time ([ON] or [OFF] only cannot be set up singly.
Su MoTu WeTh Fr Sa
WEEKLY TIMER
ERROR
SuMoTuWeTh Fr Sa
PROGRAM1
PROGRAM2
PROGRAM3
CHECK
PROGRAM SET DAY
HH MM CLEAR
CANCEL
1
WEEKLY TIMER
ERROR
SuMoTuWeTh Fr Sa
PROGRAM1
PROGRAM2
PROGRAM3
CHECK
PROGRAM SET DAY
HH MM CLEAR
CANCEL
Operation time of program 1
Operation time of program 2
Operation time of program 3
Example:
To set the operation time of Monday as follows:
From 8:00 to 12:00
From 12:40 to 16:50
From 17:00 to 19:00
Operates
2
1
SuMoTuWeTh Fr Sa
PROGRAM1
PROGRAM2
PROGRAM3
