2.3 Installing Motherboard Components

20

Chapter 2: Setting Up

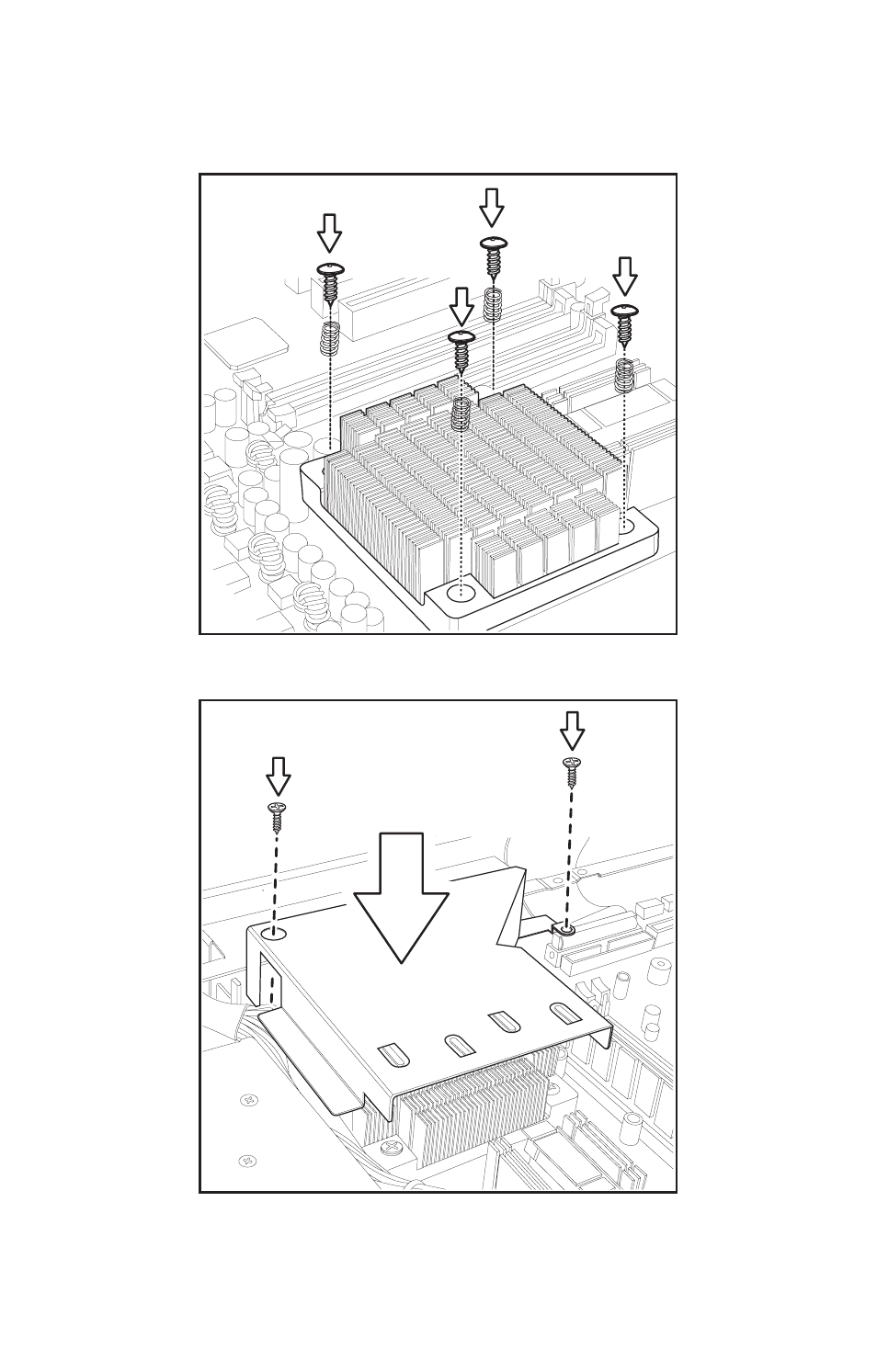

6. Align the heatsink screw holes with the holes on the

motherboard and insert the four heatsink screws as
shown.

7. Place the air duct over the heatsink and replace the heat

shield screws to secure it to the motherboard.
