102

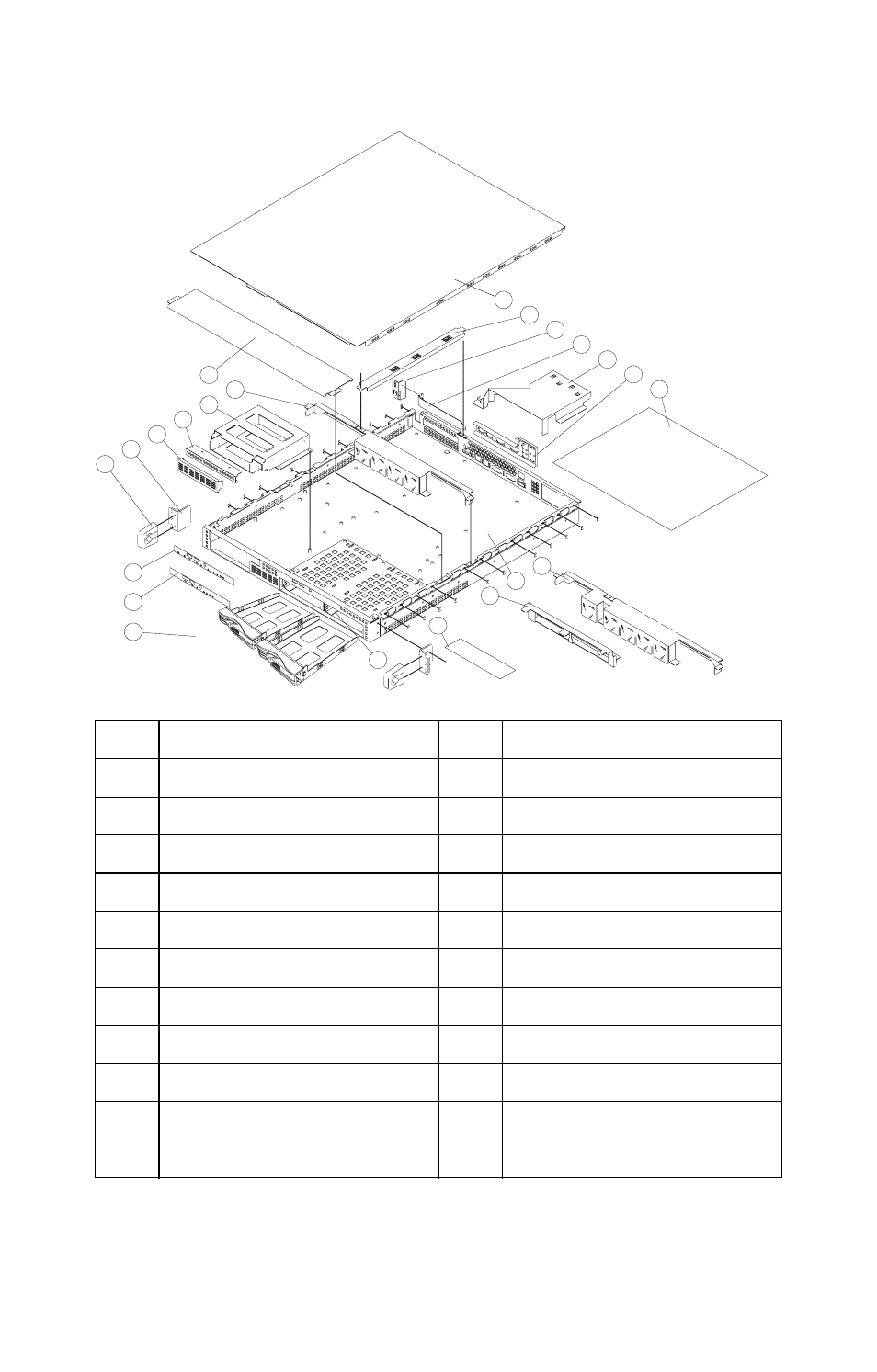

Hardware Diagram
1 Top cover 13 Mount bracket x 2
2 Retention bar 14 Handle x 2
3 Card holder 15 Mylar (front panel)
4 PCI faceplate 16 Mylar (front panel)
5 Air duct 17 1” HDD x 2
6 I/O shield 18 Tray housing x 2
7 Mylar (under motherboard) 19 Mylar (under LED control board)
8 Cable cover 20 Backplane
9 Cross bar and fan bracket 21 Chassis
10 Drive cage assembly 22 Cross bar and fan bracket
11 Slim CD-ROM bay window
12 FDD bay window
1
1
9
8
2
3
1
4
5
6
7
0
1
12
3 1
4 1
5 1
6 1
7 1
8 1
9 1
20 20
21
2 2
˄ ˅
˥˦˧
