Chapter 2: Connecting your TV
OUT
IN
AUDIO
IN
S-VIDEO
VIDEO 1 VIDEO 2
L
R
OUT 1
G-LINK
HDMI IN
DIGITAL AUDIO OUT
TheaterNet
ANT (75 )
ANT1
(CABLE)
ANT2
CableCARD™
COLOR
STREAM
HD-1
COLOR
STREAM
HD-2
VAR
AUDIO
R L
TheaterNet
OUT 2
1
2
S-VIDEO
IEEE1394 EJECT
L/
MONO
AUDIO
VIDEO
R
L/
MONO
AUDIO
VIDEO
R
L/
MONO
AUDIO
VIDEO
R
P B
P R
Y
L
AUDIO
R
P B
P R
Y
L
AUDIO
R
1
2
1
2
L R
L R
IN
OUT
HDMI OUT
VIDEO AUDIO
The HDMI [1] input on your TV receives digital audio
and uncompressed digital video from an HDMI device
or uncompressed digital video from a DVI
[2] device.
This input is designed to accept HDCP [3] program material in
digital form from EIA/CEA-861/861B–compliant [4] consumer
electronic devices (such as a set-top box or DVD player with
HDMI or DVI output).
The HDMI input is designed for best performance with 1080i
high-definition video signals, but will also accept and display
480i, 480p, and 720p signals.

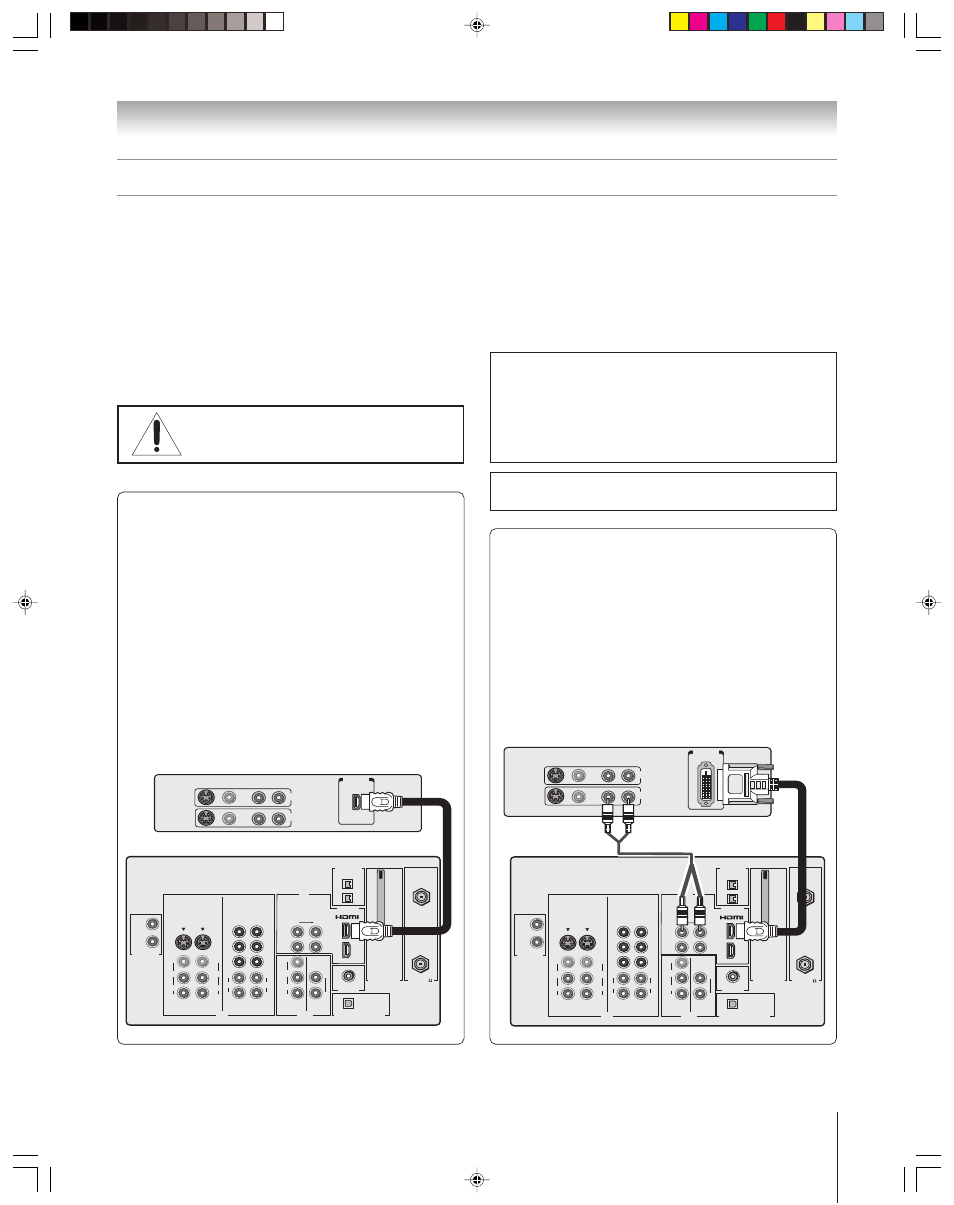

Connecting an HDMI ™ or a DVI device to the HDMI input
TV
HDMI device
OUT
IN
AUDIO
IN
S-VIDEO
VIDEO 1 VIDEO 2
L
R
OUT 1
G-LINK
HDMI IN
DIGITAL AUDIO OUT
TheaterNet
ANT (75 )
ANT1
(CABLE)
ANT2
CableCARD™
COLOR
STREAM
HD-1
COLOR
STREAM
HD-2
VAR
AUDIO
R L
TheaterNet
OUT 2
1
2
S-VIDEO
IEEE1394 EJECT
L/
MONO
AUDIO
VIDEO
R
L/
MONO
AUDIO
VIDEO
R
L/
MONO
AUDIO
VIDEO
R
P B
P R
Y
L
AUDIO
R
P B
P R
Y
L
AUDIO
R
1
2
1
2
VIDEO AUDIO
L R
L R
R
IN
OUT
DVI / HDCP
OUT
TV
DVI device
___________
[1] HDMI = High-Definition Multimedia Interface.
[2] DVI = Digital Video Interface.
[3] HDCP = High-bandwidth Digital Content Protection.
[4] EIA/CEA-861/861B compliance covers the transmission of
uncompressed digital video with high-bandwidth digital content
protection, which is being standardized for reception of high-definition
video signals. Because this is an evolving technology, it is possible that
some devices may not operate properly with the TV.
NOTE: To ensure that the HDMI or DVI device is reset properly, it is
recommended that you follow these procedures:
• When turning on your electronic components, turn on the TV first,
and then the HDMI or DVI device.
• When turning off your electronic components, turn off the HDMI or
DVI device first, and then the TV.
To connect DVI devices, you will need:
• one HDMI-to-DVI adapter cable
(HDMI type A connector) for each device
For proper operation, the length of an HDMI-to-DVI
adapter cable should not exceed 9.8 ft (3m). The
recommended length is 6.6 ft (2m).
• one pair of standard analog audio cables for each
device
An HDMI-to-DVI adapter cable transfers video only. Separate
analog audio cables are required (see illustration below).
See “Selecting the HDMI 1 or HDMI 2 audio mode” on page 50.
___________
HDMI, the HDMI logo, and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing, LLC.
To connect HDMI devices, you will need:
• one HDMI cable (type A connector for each device)
For proper operation, it is recommended that you use
as short an HDMI cable as possible. You should not
encounter difficulty if you use an HDMI cable shorter
than 16.4 ft (5m).
HDMI cable transfers both video and audio. Separate
analog audio cables are not required (see illustration
below). Some CDVs (video CDs) may not output digital
audio signals. In that case, you may hear sound by
connecting analog audio cables. However, if you connect
analog audio cables with this connection, the HDMI
terminal on the TV will not receive the HDMI digital audio
signal and you will hear analog audio only.
See “Selecting the HDMI 1 or HDMI 2 audio mode” on
page 50.
NOTE: NEVER CONNECT THIS TV
TO A PERSONAL COMPUTER (PC).
THIS TV IS NOT INTENDED FOR USE WITH A PC.
NOTE: If your HDMI/DVI device is not working, make sure the device is
plugged in to the corresponding HDMI IN port you are selecting.
