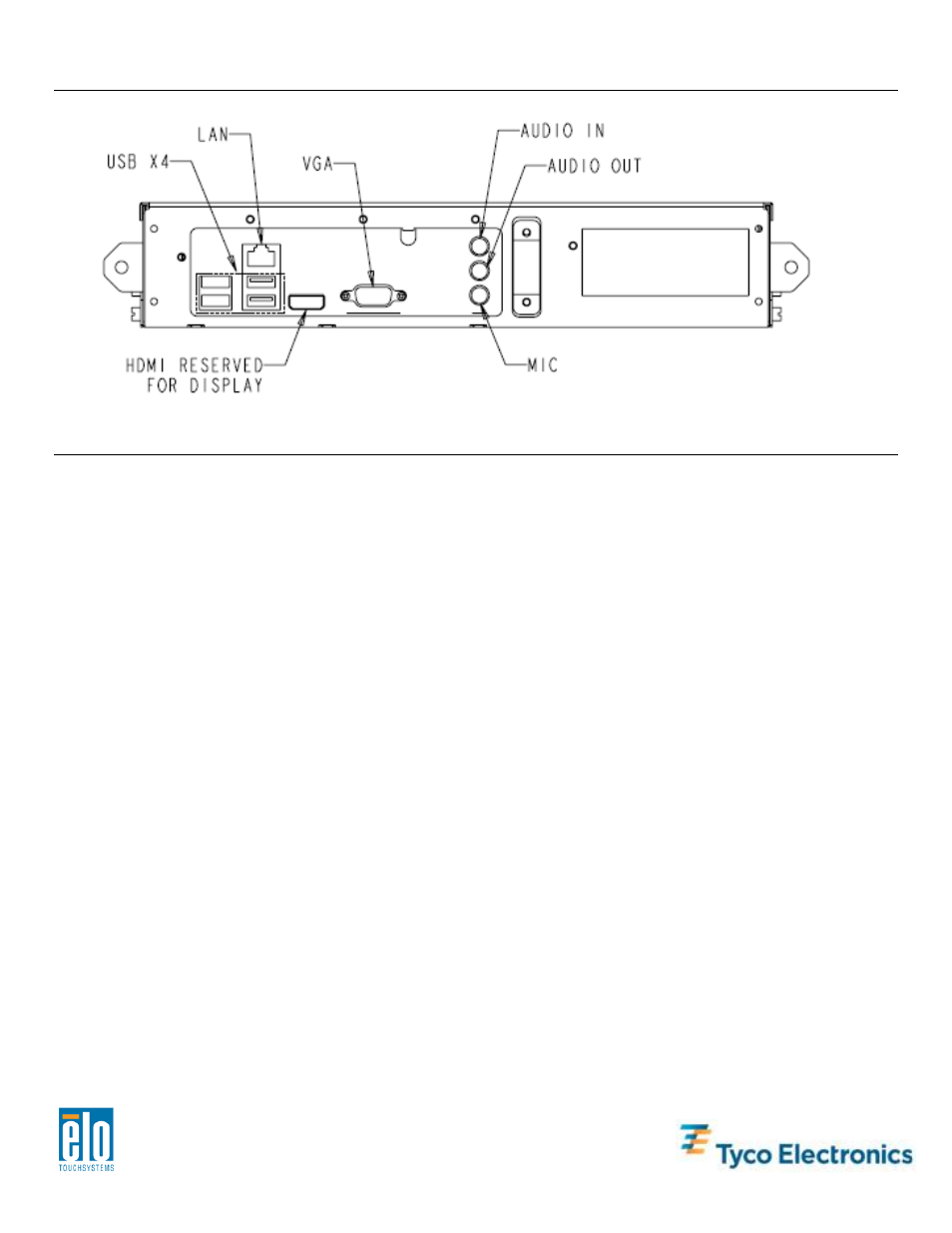

Connector Panel & Interfaces
TouchMonitor & Computer Module Connections
1. Once the Computer Module has been installed, connect the AC power cable between
the touchmonitor’s POWER IN connector and the AC power source.
2. Make any desired connections to the Computer Module connector panel.
3. Press and hold the touchmonitor’s power button for 4 seconds to turn on the Computer
Module.
Note:
Once the Elo Computer Module is installed in the touchmonitor, the
touchmonitor’s VGA & HDMI video and USB touch functions are
disabled. All of the touchmonitor’s video and touch functionality is
handled through the Computer Module docking connection.
