Data Sheet: Supereta
TM
iQM Series –Single Output Quarter Brick
©2004-2006 TDK Innoveta Inc.
iQM 12V/17A Datasheet 8/4/2006 ℡ (877) 498-0099
3/15

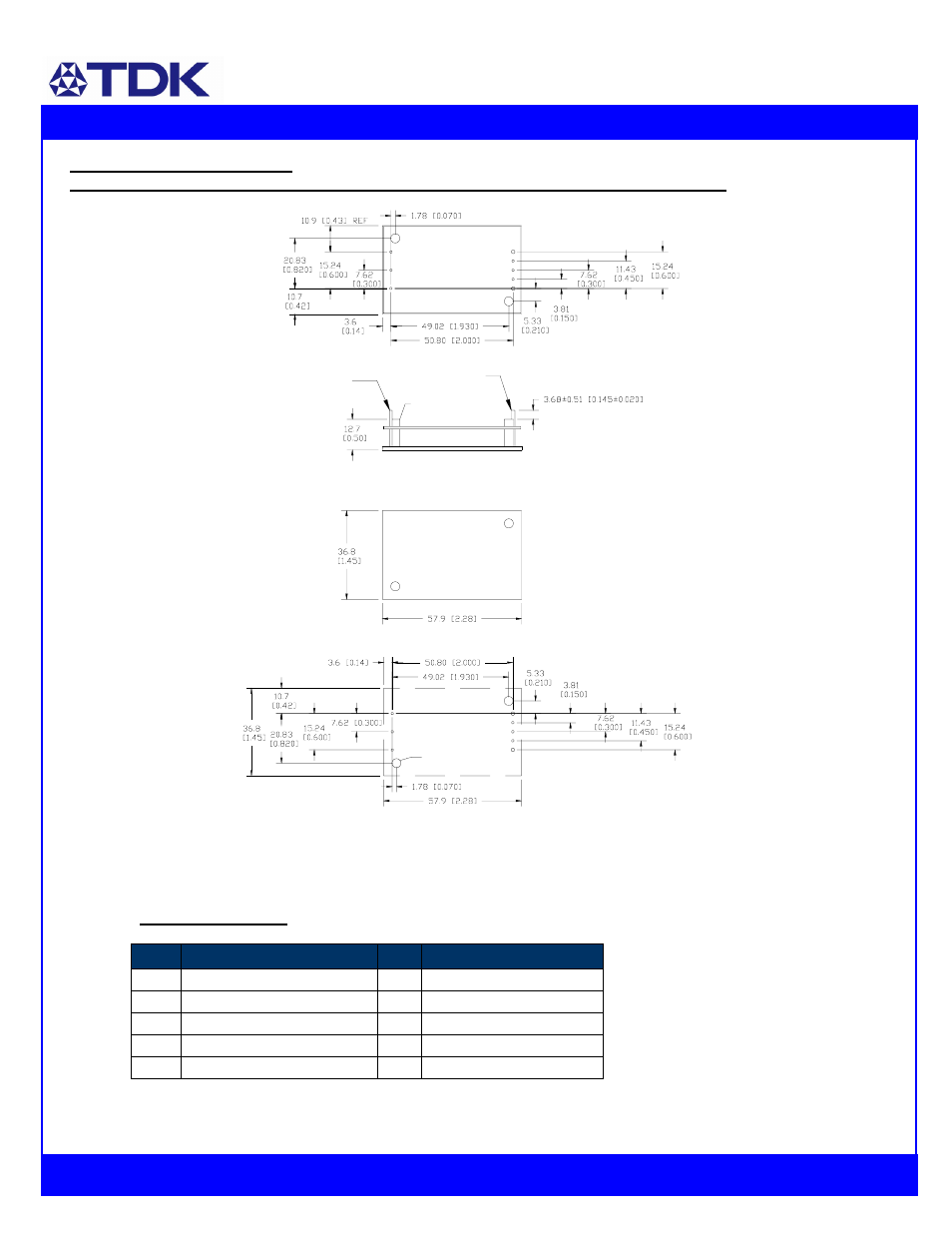

Mechanical Specification:
Dimensions are in mm [in]. Unless otherwise specified tolerances are: x.x ± 0.5 [0.02], x.xx and x.xxx ± 0.25 [0.010].
Pin Assignment:
PIN FUNCTION PIN FUNCTION
1 Vin(+) 4 Vo(-)
2 On/Off 5 Sense(-)
3 Vin(-) 6 Trim
7 Sense(+)
8 Vo(+)
Pin base material is copper or brass with matte tin or tin/lead plating; the maximum module weight is 60g (2.1 oz).
1
2
3
8
7
6
5
4
Recommended hole pattern (top view)
3.40 [0.134] max Dia
2 places
1.52 [.060] DIA
2 pins
M3 X .5 threaded
inserts, 2 places
1.02 [.040] DIA
6 pins
