C M Y CM MY CY CMY K
CM I N T E R TE K
L I S T E D C US
THIS CLASS D DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS AND
COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS
OUVRIR. CAUTION
MANUFACTURED IN THE UNITED KINGDOM
- LIMIT
- SIGNAL
- POWER
FUSE T10AL 250V
USER DSP ON - OFF
INPUT LINK NETWORK IN NETWORK LINK
THIS EQUIPMENT MUST BE EARTHED
A ‘LIMIT/NETWORK
FOUND’LED displays
DSP limiter action for both
output channels. Also
duplicates the function of
the front mounted network
found LED
A ‘LIMIT/NETWORK
FOUND’LED displays
DSP limiter action for both
output channels. Also
duplicates the function of
the front mounted network
found LED
A green signal present LED,
operating at -50dB relative
to the minimum input level
XLR female audio input
XLR male audio link
RJ45 network input RJ45 network link
Rocker power switch
Rugged Neutrik Powercon
locking mains connector
Fuse Holder
A user DSP ON/OFF
switch
In the OFF position this will
return the loudspeaker to
the factory default settings
A ‘NETWORK FOUND’ LED,
mounted on the front of the
cabinet, software controlled
to enable location of specific
nodes on the network
Amplifier & DSP Panel
Power LED
3.0: UNPACKING AND VISUAL CHECKS
Every Tannoy VNET“ product is carefully tested and inspected before being packaged and leaving the factory. After unpacking
your loudspeaker, please inspect for any exterior physical damage, and save the carton and any relevant packaging materials
in case the loudspeaker again requires packing and shipping. In the event that damage has been sustained in transit notify
your dealer immediately.
3.1: PRELIMINARY RECOMMENDATION
A word of warning on high sound levels - these speakers are capable of generating high output levels over sustained periods
of time and such levels, over 95dBspl for 8 hours per day, can eventually cause permanent hearing loss. Since Tannoy
loudspeakers have a natural-sounding flat frequency response and low distortion, it’s possible not to be aware just how high
the sound level is high while working with them.
For continuous exposure we recommend the occasional use of a sound level meter. This should be capable of integrating the
sound level over a period of exposure according to noise control standards and used just to check that noise levels are always
within safety limits.

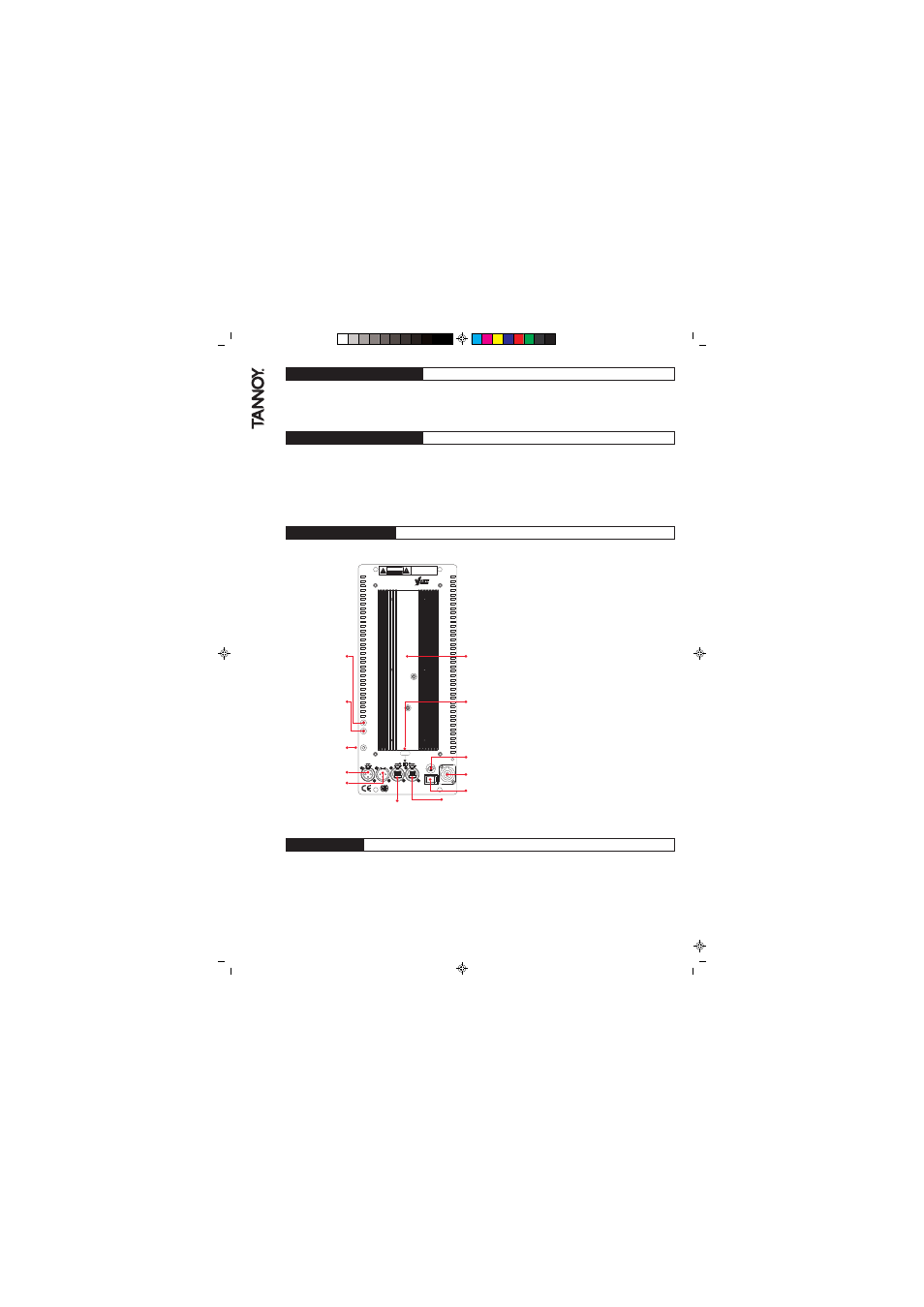

4.0: INTERFACE PANEL
6
• XLR FEMALE AUDIO INPUT — This is a lockable
XLR line input socket for connection to the audio
source. Fully Balanced.
Pin 2 Hot (+), Pin 3 Cold (+), & Pin 1 Ground.
• XLR MALE AUDIO LINK - This is a lockable XLR
line output socket to link additional speakers.
Fully Balanced.
Pin 2 Hot (+), Pin 3 Cold (+), & Pin 1 Ground.
• RJ45 NETWORK INPUT - For Control and
monitoring functions over RS485.
• RJ45 NETWORK LINK - For linking cabinets.
Vnet supports free network topology.
Cabinets can be daisy chained or linked in a
star configuration, or a combination of both.
• ROCKER POWER SWITCH — Turns AC power
on to the unit (100V — 240V)
• FUSE HOLDER — Replace only with 10A 230V
anti-surge fuse. Tannoy part Number 3461 0919.
• AC MAINS CONNECOR — Neutrik Powercon
mains connector (supplied)
• USER DSP ON/OFF SWITCH
• POWER LED — Blue LED indicates when power
has been applied to the speaker.
• LIMIT/NETWORK FOUND LED — Also mounted
on the front of the cabinet. This can be seen
clearly from behind the grill when activated.
• SIGNAL PRESENT LED
5.0: OPERATION
The range of products are fully integrated designs, all speaker management functions which include driver EQ, dynamic
limiting, & crossover functions are carried out within the DSP, therefore the need for external amplification, active crossovers
and limiters is not required. The only input from the user is crossover between full range cabinets & subwoofers, and room
equalization (if necessary).
When routing audio, units may be daisy chained together by linking the Input/link XLR connectors. It is necessary to have
power local to each speaker, as it is not possible to daisy chain the AC power connectors.
