iw62 TS Subwoofer

Tannoy adopts a policy of continuous improvement and product specification is subject to change

iW62TS Subwoofer data file issue:1.06 // 15.01.08

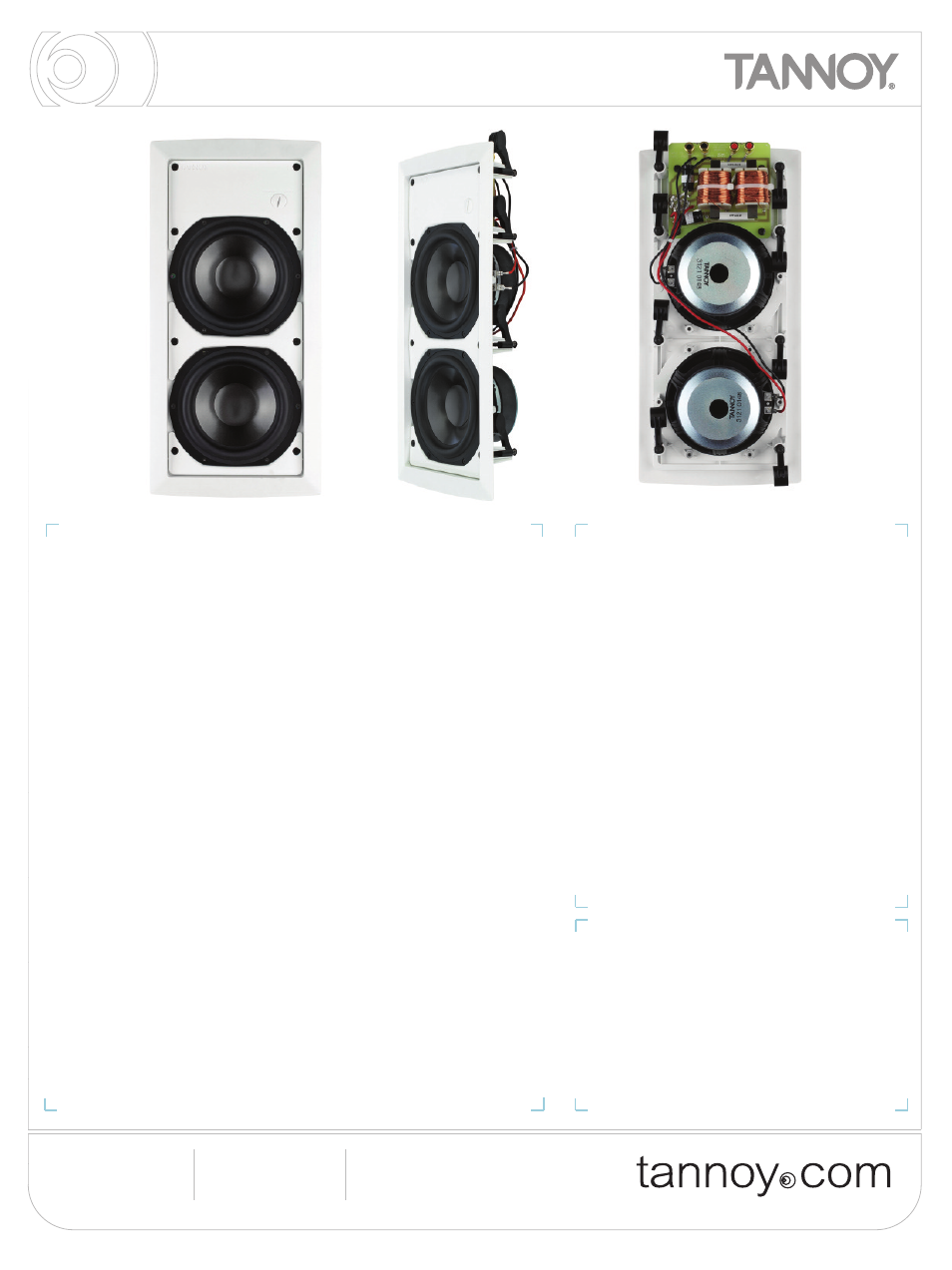

A high performance in wall subwoofer, the iw62 TS is designed to augment the low

frequency output of an in wall system installation. It uses the same construction and

mechanical installation method to ensure it is a perfect match, both acoustically and

visually, to the Tannoy full range in wall units.

The iw62 TS is unique in that it can operate in either passive or active mode, selectable by

a switch on the front baffle. In active mode an external controller can be used to manage

low frequency extension, the application of equalisation and allowing the crossover point to

be tailored to the rest of the system and room. Additionally the iw62 TS will operate in

stereo or mono mode; easily converted by means of link wires on the circuit board.

Designed to partner the Tannoy iw6 DS, iw6 TDC and iw62 TDC full range in wall

loudspeaker products, the iw6s TS in wall subwoofer is equipped with two 165mm (6.50”)

long throw multi fibre, paper pulp bass drivers to deliver effective low frequency

reinforcement; rated from 29Hz - 110Hz in passive mode with a continuous power handling

of 200W RMS.

The driver and passive frequency dividing network are mounted in an injection moulded,

paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.

The excellent structural integrity, when combined with the secure polycarbonate,

self-aligning eight clamp mounting system, ensures a performance enhancing rigid acoustic

coupling with the wall surface. This provides an immensely stable platform for the drivers to

deliver optimum performance. Robust, gold plated spring loaded terminals enable rapid

connection with optimum input signal integrity.

Complementing any style of decor, the perforated metal grille and discreet moulded baffle

can be painted to blend seamlessly with any install environment. This in-wall subwoofer is

capable of delivering impressive results in large residential and commercial applications;

such as small entertainment venues, restaurants, bars, public buildings, board rooms, AV

installations and business music systems.

A steel back can is available as an optional accessory.

Product Description

• Unique application flexibility - easy configuration

possible for active, passive, mono or stereo modes

• Designed to partner the Tannoy iw6 DS, iw6 TDC

and iw62 TDC full range in-wall loudspeaker products

• The two 165mm (6.50”) bass drivers in the iw62 TS

deliver effective low frequency reinforcement from

29Hz - 110Hz in passive mode continuous power

handling 200W RMS

• 2nd order low pass crossover in passive mode -

determined by external controller in active mode

• Simple and effective eight clamp mounting system -

self aligning for easy installation and removal

• Four spring loaded gold terminals - cut links to drive in

stereo mode

• Ideally suited to larger installations where higher

power premium performance in multi room distributed

audio and av systems, small venues, restaurants,

bars, business music systems and a vast array of

other public building installations.

• Grille and baffle can be painted to suit any décor

• Foreground music & paging systems
• Multi-room audio systems
• Home theatre
• Business music systems
• Boardrooms and offices
• Retail environments
• Public address systems
• Reception and waiting rooms
• Airport, convention centres and hotels

Features

Applications
