2 - Parts of the CD-RW5000
12 TASCAM CD-RW5000
[24] COAXIAL digital INPUT
This RCA connector accepts digital audio data in
SPDIF format.
[25] COAXIAL digital OUTPUT
This RCA connector outputs digital audio data in
SPDIF format.
[26] OPTICAL digital INPUT
This optical connector allows input of digital audio
data in SPDIF format.
[27] OPTICAL digital OUTPUT
This optical connector outputs digital audio data in
SPDIF format.
NOTE
If these optical connectors are not being
used, keep them covered with the dust caps
supplied with the unit.
[28] CONTROL I/O
This 15-pin ’D’-sub connector is used for connection
to a suitably-equipped controller.
The pinouts of this connector are given below:
Tally signals are open collector, with a maximum
current of 40 mA. Input signals are active when low
(ground) for
≥
30 ms.
[29] REMOTE IN connector
This connector is used for the RC-RW5000 remote
control unit supplied with the CD-RW5000. Do not
attempt to connect any other kind of remote control
unit to this connector.

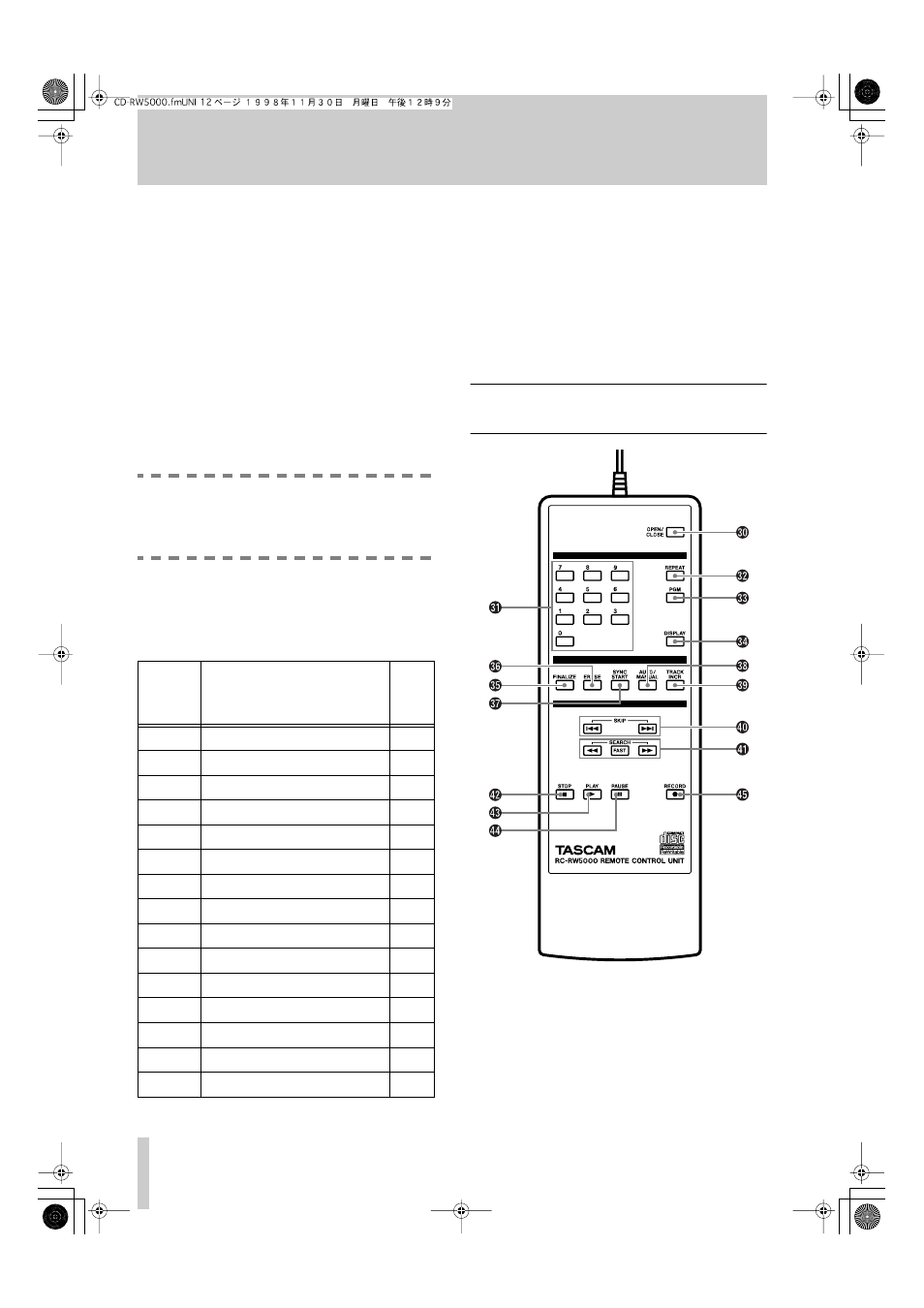

2.3 RC-RW5000 remote control
unit
For the most part, the keys on the remote control unit
duplicate many of the keys on the main unit. How-
ever, there is a set of number keys which can be used
for programmed playback, or to start playback at a
particular track number. There are also some addi-
tional keys available, which are not provided on the
main unit.
Pin
number
Signal
Direction
1 STOP TALLY OUT
2 REC-PLAY TALLY OUT
3 SKIP (forward) IN
4 SKIP (back) IN
5 REC-PAUSE TALLY OUT
6 REC IN
7 Track increment IN
8 Ground —
9 PLAY TALLY OUT
10 PAUSE TALLY OUT
11 N/C —
12 STOP IN
13 PLAY IN
14 PAUSE IN
15 N/C —
