Installation
RT-SVX19A-E4 12

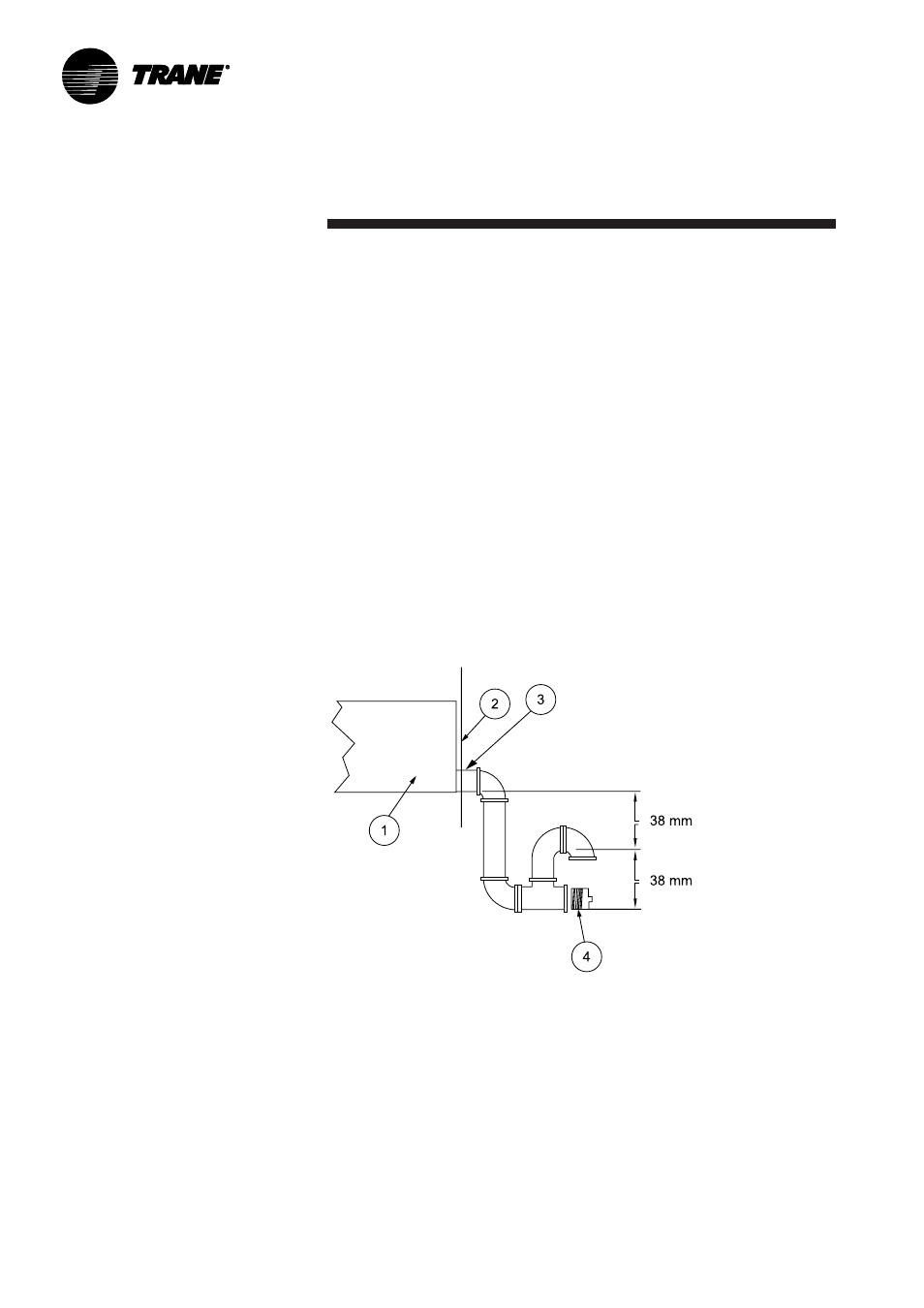

Figure 7 - Condensate drain line connection
1 = Static pressure drain pan
2 = Panel enclosure
3 = 42mm PVC drain
4 = Cleanout plug
RT-SVX19A-E4
Condensate drain piping
A 42mm PVC condensate drain
connection with P-trap is provided.
Follow local codes and standard
piping practices when running the
drain line. Install a trap and be sure
to fill with water before starting the
unit. Pitch the line downward, away
from the unit to avoid long, level,
horizontal runs. Refer to Figure 7.
