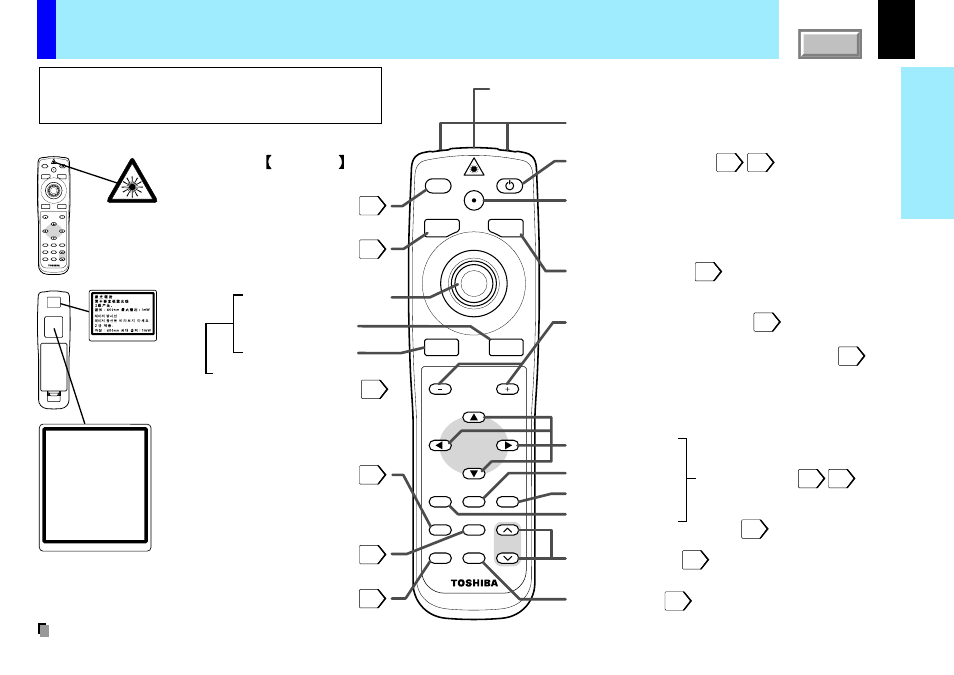

Names of each part on the remote control
INPUT button
MUTE button
RESIZE buttons
R-CLICK button
L-CLICK button
Pointer control button
VOLUME/ADJUST buttons
KEYSTONE button
AUTO SET button
LASER button
PIP button
FREEZE button
CALL button
ON/STANDBY button
Laser emission part
Remote control transmission part
To display the laser pointer by pointing the laser
emission part toward the screen.
To set and/or adjust values on the menu.
To adjust volume when the menu is not displayed.
Hereafter called "VOL/ADJ button" in this manual.
To select the input source.
To correct the keystone distortion
of the picture.
To use as
USB remote control mouse.
To turn the projector on or off (Standby).
To adjust the computer input image automatically.
To enlarge the picture size.
To cut off the picture and sound temporarily.
To display the video input image
as a small size picture in the
computer image display window.
To display the information.
To freeze the picture.
ENTER button
Selection buttons
EXIT button
MENU button
To display the menu screen
and/or select the operation on
the menu screen.
Use the selection buttons and
EXIT button to enlarge the
image.
MENU
ON/STANDBY
LASER
INPUT
L-CLICK R-CLICK
ENTER
KEYSTONE AUTO SET
EXIT
PIP FREEZE
MUTE CALL
RESIZE
VOLUME/ADJUST
30
37
39
43
39
44
32
42
44
35
34
40
38
41
28 33 Top side
Caution - use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Location of the labels
MENU
ON/STANDBY LASER INPUT
L-CLICK R-CLICK
ENTER
KEYSTONE AUTO SET
EXIT
PIP FREEZE
MUTE CALL RESIZE
VOLUME/ADJUST
IEC60825-1 A1;1997
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
WAVE LENGTH : 650nm
MAX OUTPUT : 1mW
LASER–STRAHLUNG
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2 PRODUKT
WELLENLÄNGE : 650nm
MAX AUSGANGSLEISTUNG : 1mW
RAYONNEMENT LASER
NE PAS REGARDER DANS LE
FAISCEAU
APPAREIL A LASER DE CLASSE 2
LONGUEUR D'ONDE : 650nm
PUISSANCE MAXIMA : 1mW
REMOTE CONTROL MODEL CT-90108
REAR
Note
The description in the label differs dependent on the destination of the product.
