7

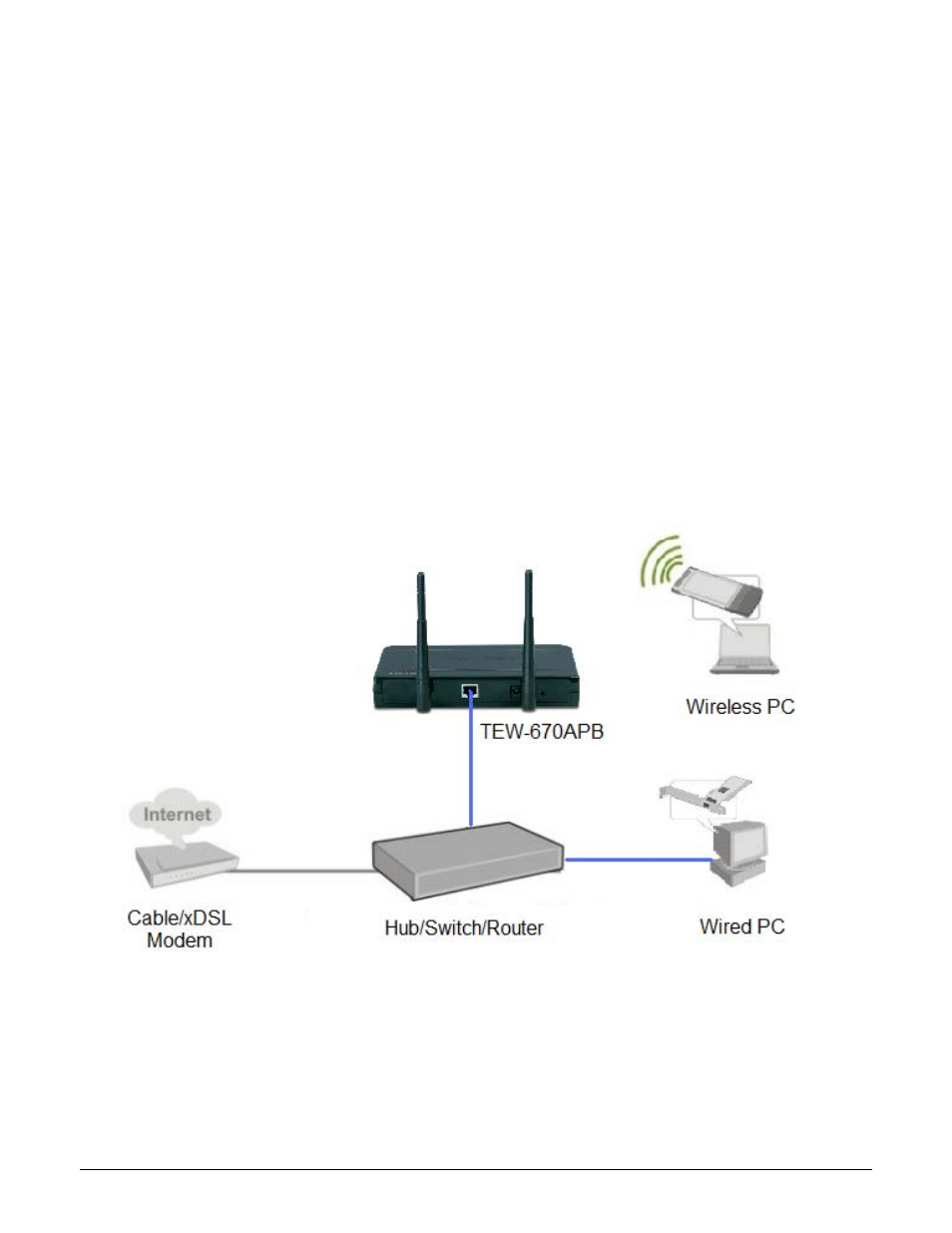

Connect to the Switch/Hub/Router
1. Plug in one end of the RJ45 network cable to a Switch/Hub port,
2. Plug in the other end of the RJ45 network cable to the Wireless Access Point.
Check the installation
The LEDs of the Access Point are clearly visible and the status of the network link
can be seen instantly:
1. With the power source on, once the device is connected, the Power, LAN and
WLAN port LEDs will light up indicating a normal status.
2. If the LAN Port’s Link indicator does not light up then check the RJ-45 cable if
it is firmly connected to the RJ45 port, while the LAN is linked up to the
Switch/Hub, the LAN port’s LED will light up.
