Rear panel – TRENDnet TEW-670APB User Manual
Page 12
5
Rear Panel

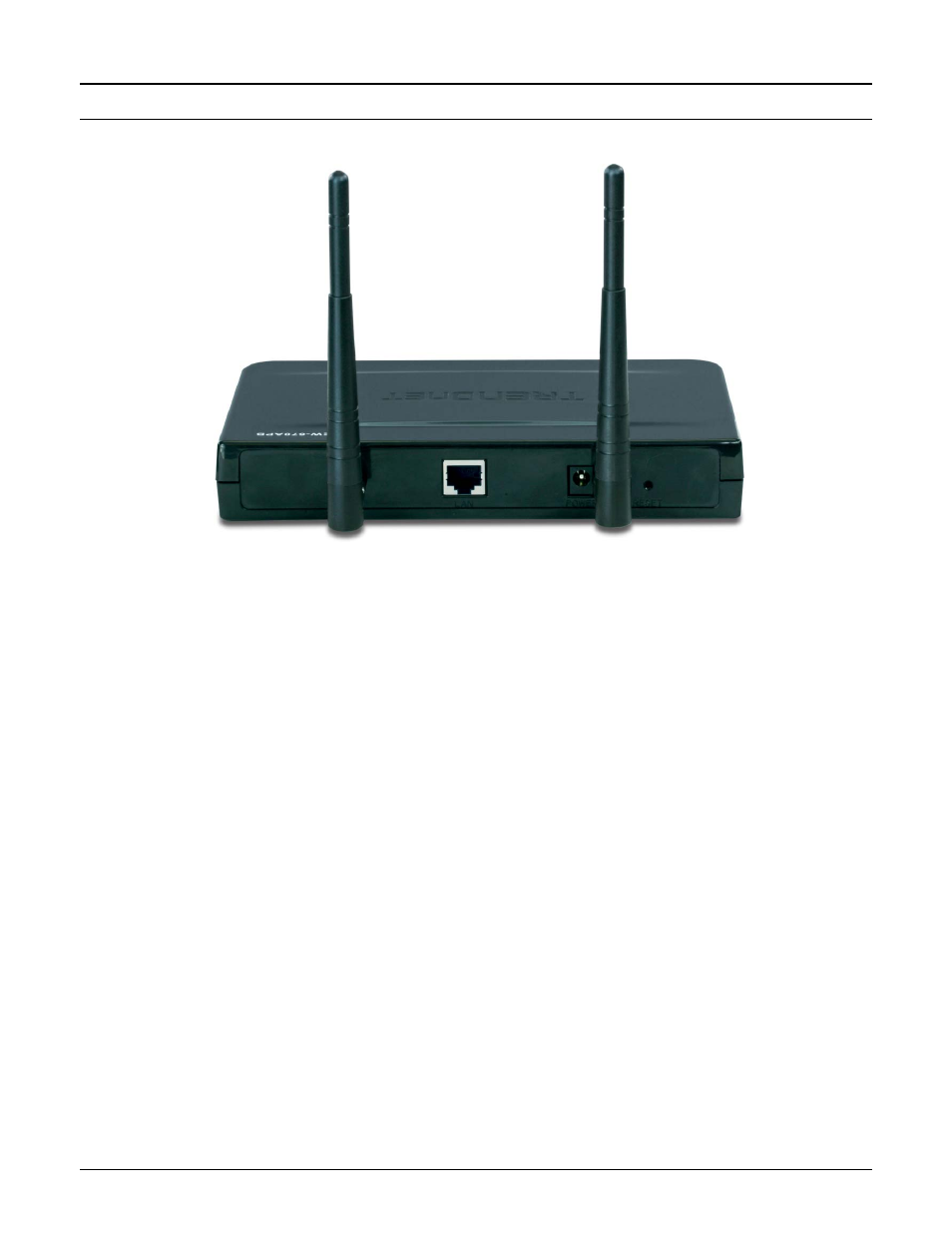

The figure below shows the rear panel of the Access Point
Rear Panel
LAN
Ethernet port with 10/100Mbps Fast Ethernet connections, connect this port to a
switch/hub.
RESET
Press the “RESET” button for more than 5 seconds buttonto reset the settings back
to factory default.
Power
Connect the DC Power Adapter plug to the AP’s power jack.
Antenna
Two external 3 dBi dipole antennas.
