TP-Link TD-8840 User Manual
Page 41
TD-8840
ADSL2+ Modem Router User Guide
35

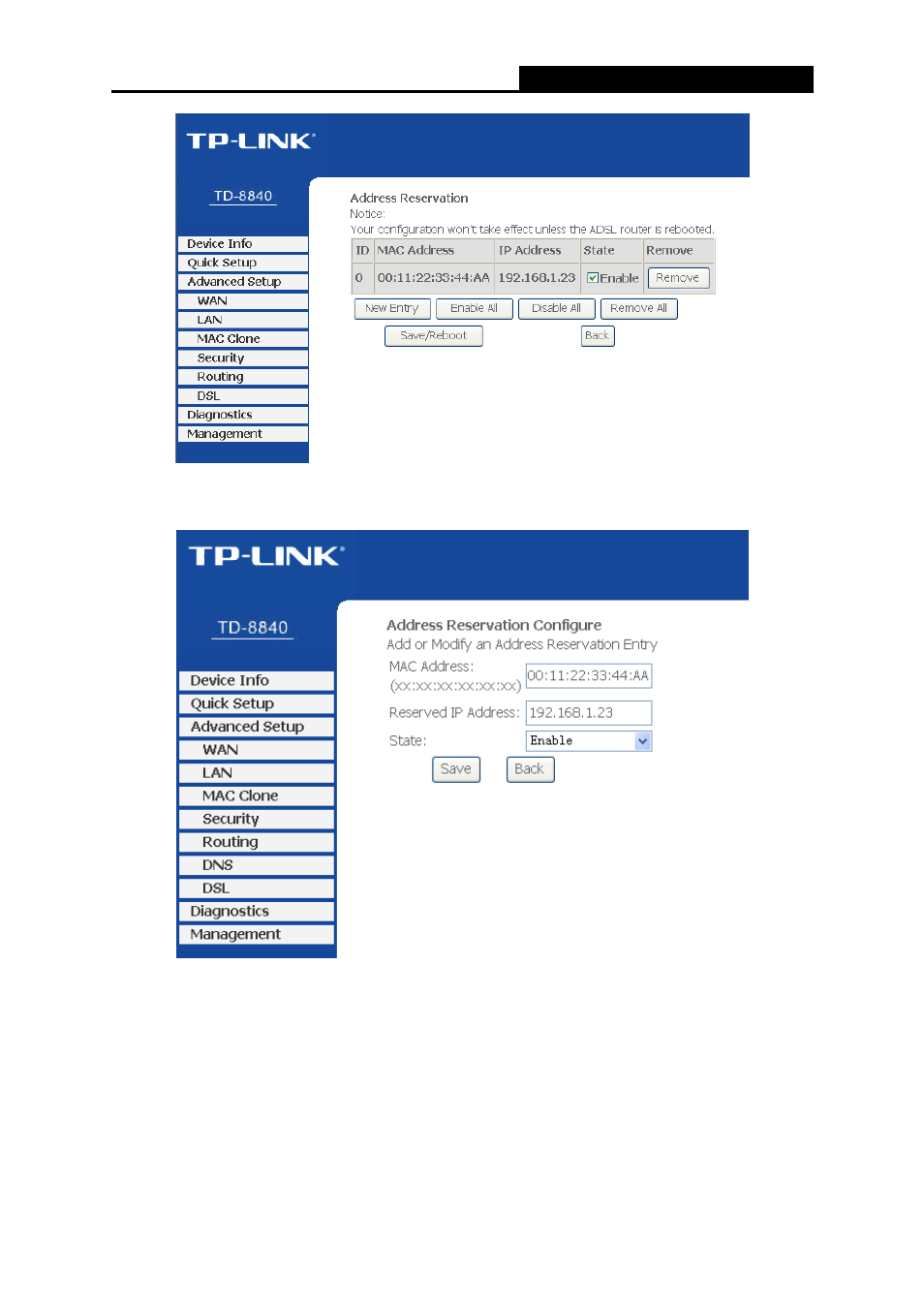

Figure 4-22
2. Click
the
New Entry button in Figure 4-22. Then Figure 4-23 will pop up.
Figure 4-23
3. Enter the MAC address in XX:XX:XX:XX:XX:XX format and reserved IP address in
dotted-decimal notation of the computer for which you want to reserve an IP address.
)
Note:
The MAC Address and IP Address added in
Figure 4-23 are
used for illustrating. They
may be different to your circs.
4. Select
Enable from the State drop-down list.
5. Click
the
Save button, then you will go back to the Address Reservation screen and
