Chapter 3: Replacing Pre-Installed Components
49

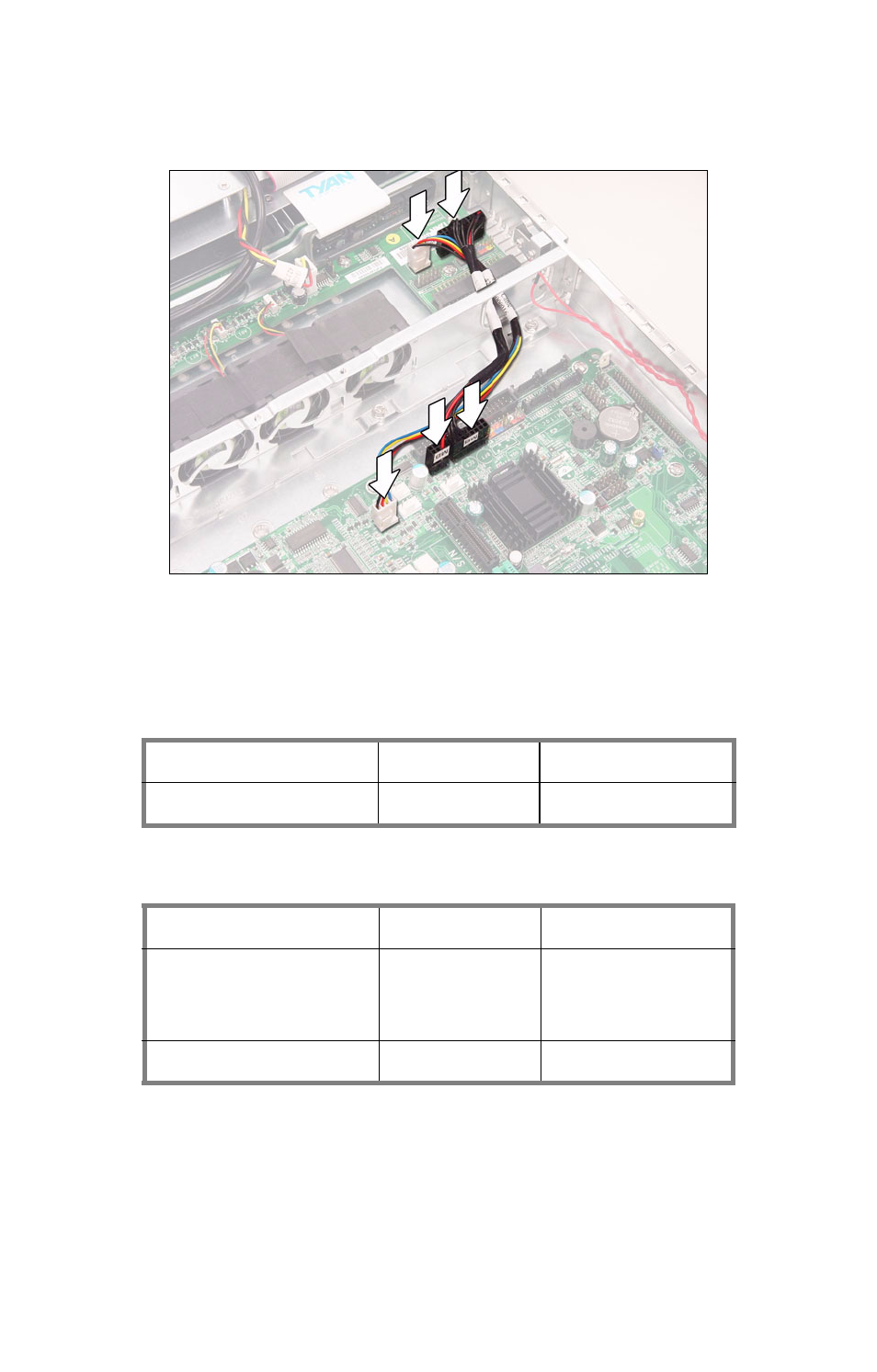

3.6.3 System Fan Layout
System Fan Speed Control Signal
System Fan Monitoring Signal
M1012 Adapter Board
Connect to
Motherboard
J7 PWM Connector
Æ
J15 Connector
Barebone System Fan
Connect to
Motherboard Fan
J14 (Fan 1, 2, 3, 5)
Æ
J19 (Fan 2, 3, 5)
&
J20 (Fan 1)
J7 (Fan 4)
Æ
J15 (Fan 4)
J7
J14
J15
J20
J19
