Page 46: Remove the motherboard
38
Chapter 3: Replacing Pre-Installed Components

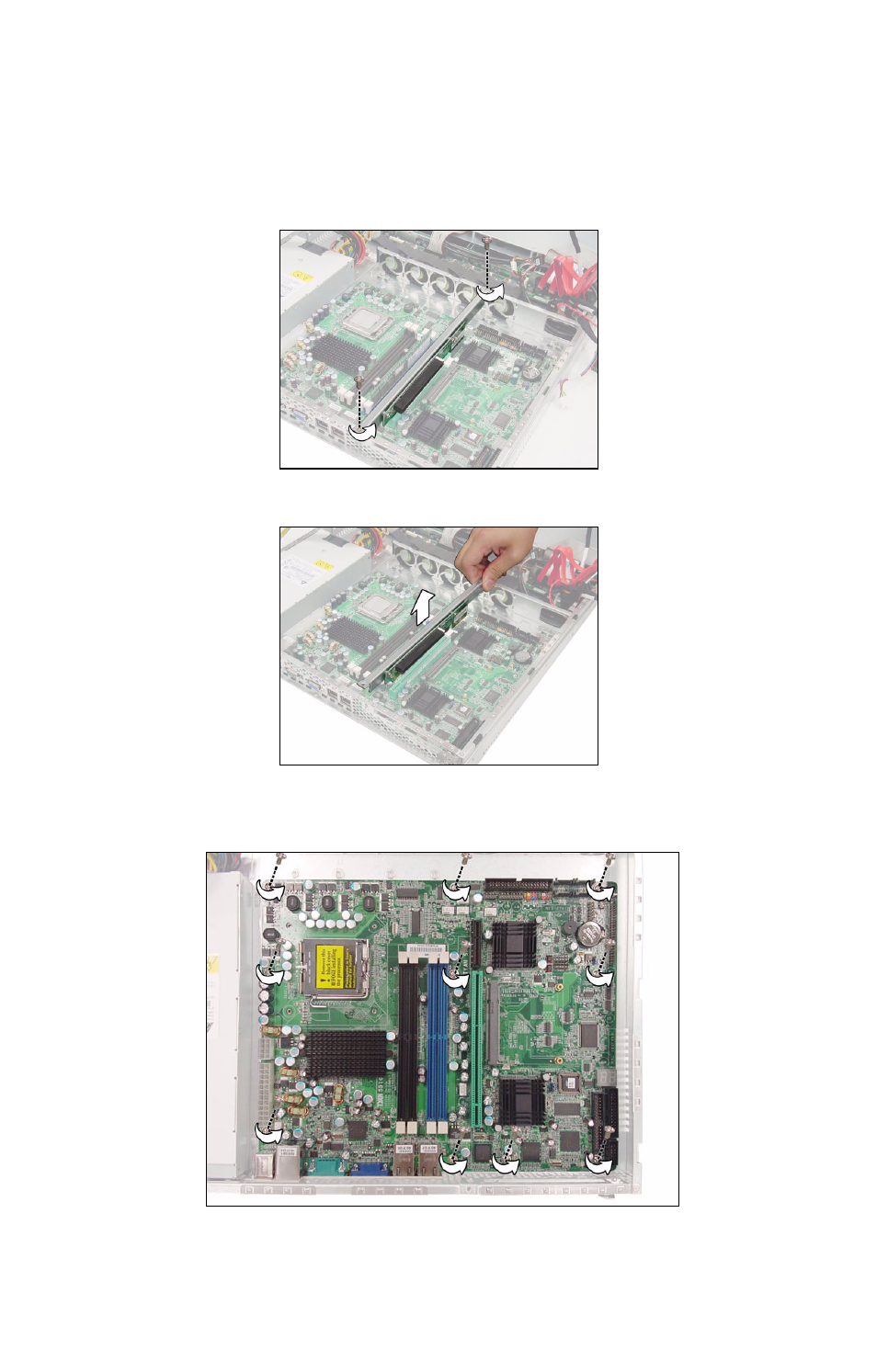

3.4.2 Removing the Motherboard
Follow these instructions to remove the motherboard from the
chassis when all add-on components have been removed.
1. Release the two screws securing the link bar.
2. Remove the link bar.
3. Remove the eleven screws securing the motherboard to
the chassis.
4. Remove the motherboard.
