- 8 -
5-2. Line-Lock Control
• Matching the vertical synchronization with the power frequency is called the Line-Lock.
• This function is activated when the LL switch is set to ON.
LL
ON
OFF

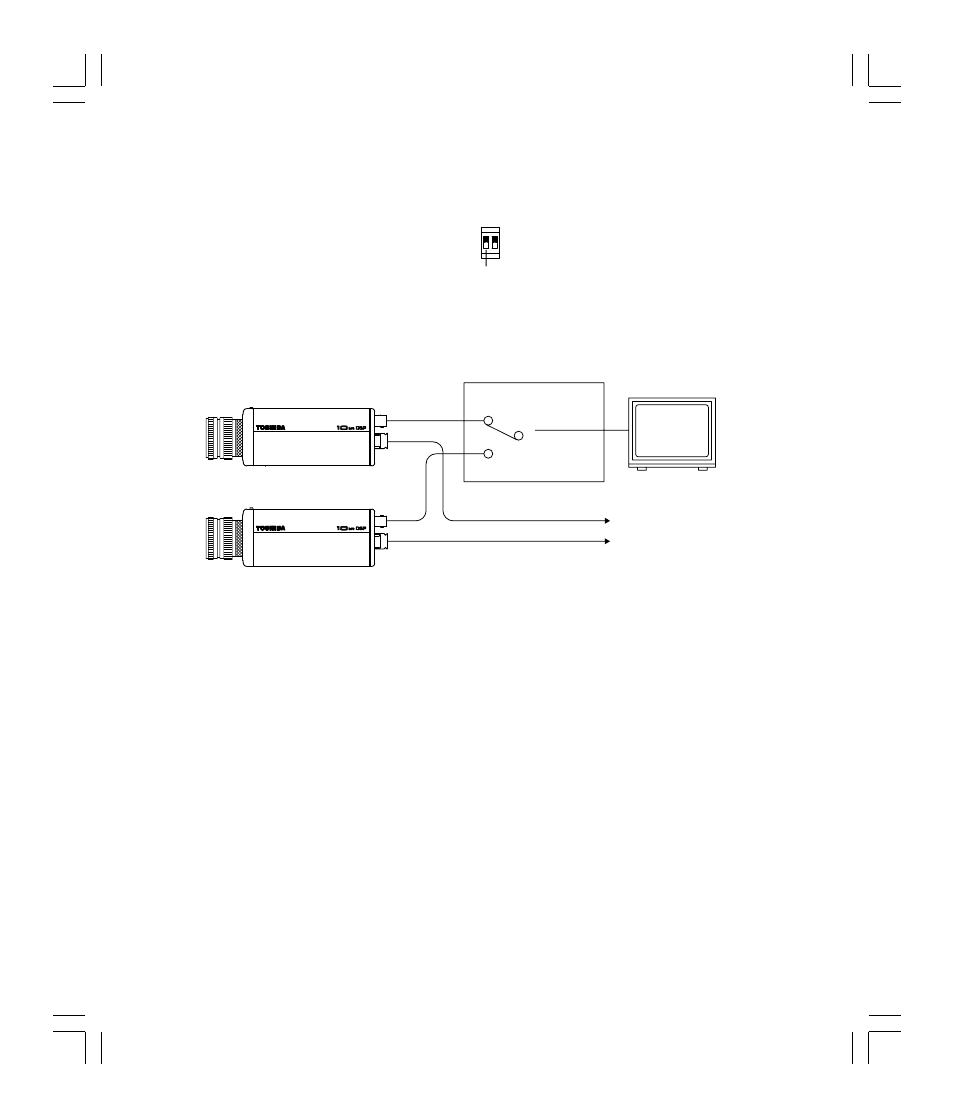

• When two or more cameras are switched by the video switcher for viewing by a monitor TV, the
vertical sync. phase can be locked to the power frequency, and a stable vertical sync. is obtained
without being disturbed at the time of switching.
CAMERA1
CAMERA2 VIDEO SWITCHER
TO 24V AC UL Listed
Class 2 power supply
MONITOR TV
Note:
• The camera is synchronized to the power frequency of 60 ±1 Hz covering a normal fluctuation of
the power frequency. However, the camera may not cover a large fluctuation caused from the
power generated by an engine generator, etc.
• It takes about 10 seconds or more until a stable synchronization is obtained after the power is
turned on. This is normal, because several seconds are required to stabilize the camera against
power noise.
• Refer to "7. LINE-LOCK PHASE" for adjustment.
5-3. Operation
1. Mount the lens to the camera.
2. Mount the camera to the camera mount.
Caution: If the lens weight is more than 2.2 lbs (1 kg) mount the lens to the camera mount.
Refer to section 6 for lens types and connection.
3. Connect the cables and support equipment to obtain a picture.
4. Adjust the lens aperture (if applicable).
