5. CONNECTIONS AND OPERATIONS
• Power plugs of connected equipment must be disconnected before camera
installation.
• A 75-ohm coaxial cable with connector (3C-2V or 5C-2V) is required for standard
connection.
• For details of wiring and operation of equipment to be connected, refer to their
operation manuals.
• Lens, power supply with cable, connectors and coaxial cable are not supplied with
the camera.
Notes on connecting

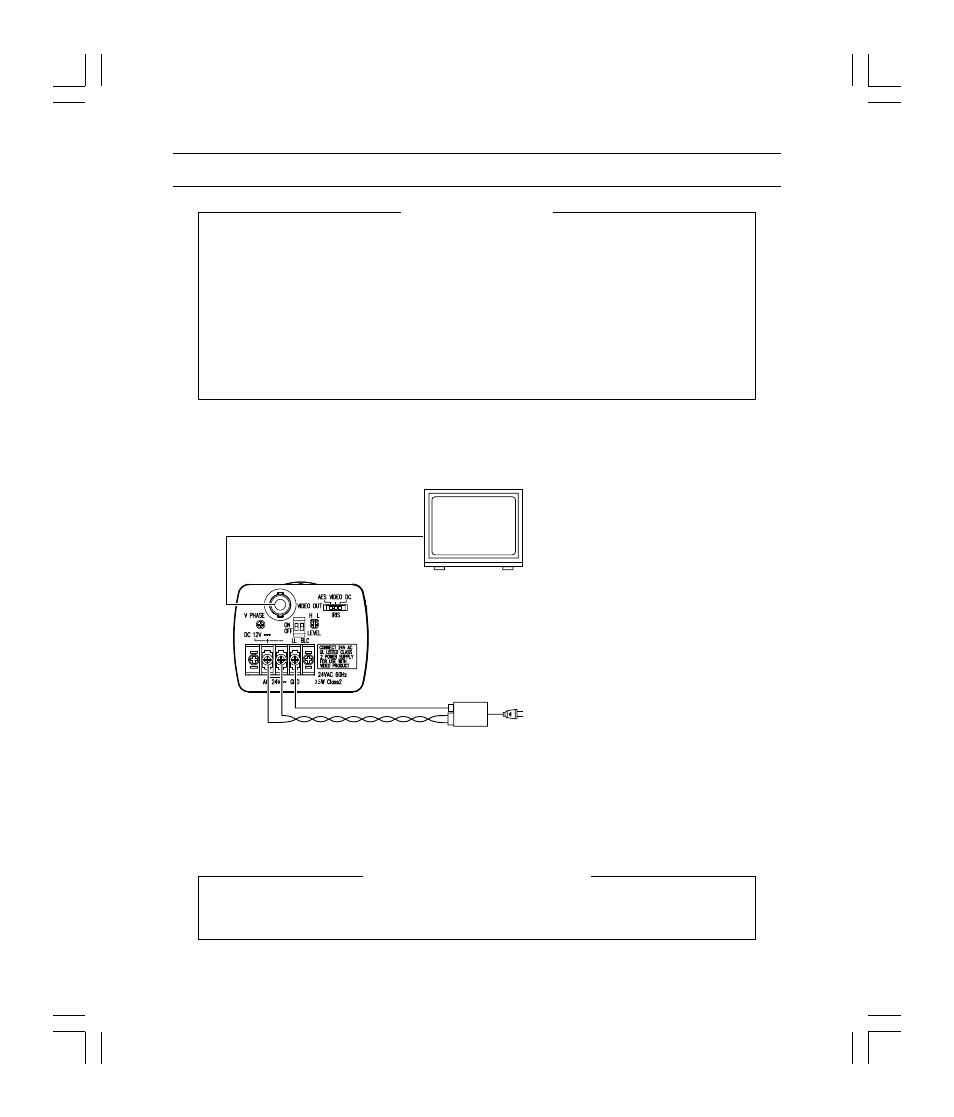

5-1. Basic connection Single system configuration
The recommended power supplies for this camera are 6 watt minimum for each 24V
AC UL Listed Class 2 power supply or 12V DC power supply.
Do not overload power supply
CAUTION: Never input 24V AC and 12V DC at the same time.
( * ) Recommend power cord is twisted pair line
with a minimum wire size of 18 AWG.
CAMERA
MONITOR TV
24V AC UL Listed Class 2 power supply
12V DC power supply
or
120V AC
