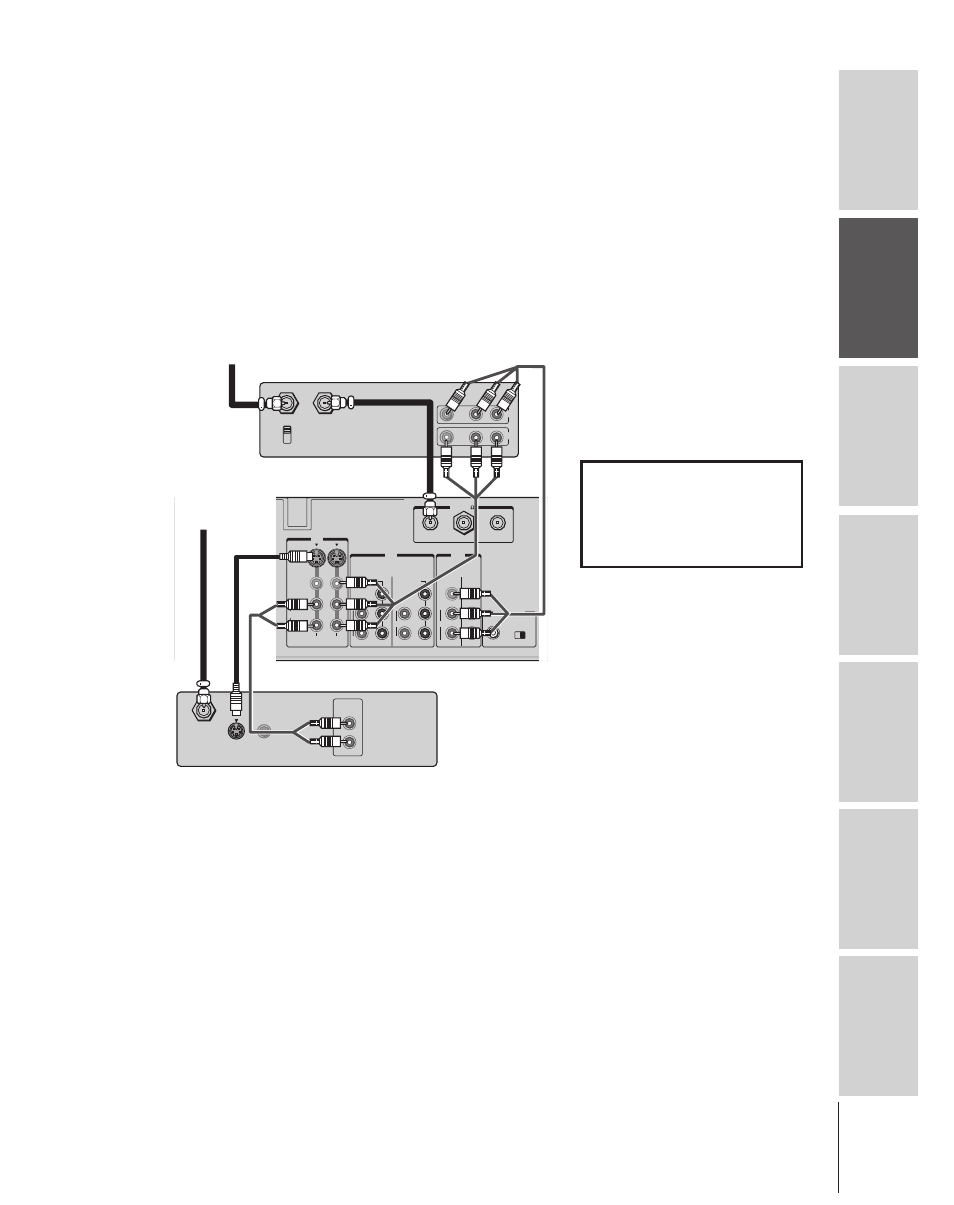

Connecting a DVD player or satellite receiver
and a VCR
This connection allows you to watch DVD/satellite, VCR, and TV
programs, and record one TV channel while watching another
channel.
You will need:
• two (or three, if satellite receiver is used) coaxial cables (one or
more may be provided by your cable or satellite company)
• one set of standard A/V cables
• one pair of audio cables
• one S-video cable (between the TV and DVD player/satellite
receiver)
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L R
CH 4
IN
OUT
IN from ANT
VIDEO
OUT OUT
S-VIDEO
AUDIO
OUT
L
R
ANT-1 OUT ANT-2
ANT(75 )
S-VIDEO
VIDEO
L/MONO
AUDIO
R
VIDEO-2 VIDEO-1
Y
P B
P R
L
Y
P B
P R AUDIO
COLOR
STREAM
HD - 2 COLOR
STREAM
HD - 1
R
L
AUDIO
R
OUT
AUDIO CENTER
CHANNEL IN
L/
MONO
AUDIO
ON OFF
VIDEO
VAR
AUDIO
L
R R
I N
I N
TV
From Antenna
Stereo VCR
From Satellite Dish
DVD Player/Satellite receiver
Note:
For the highest possible picture quality from a
DVD player/satellite receiver without
component video, use an S-video cable
between the TV and DVD player/satellite
receiver. (If your DVD player or satellite
receiver is component video-compatible, see
page 10).
Do not connect both an S-video cable and a
standard video cable between the TV and
DVD player/satellite receiver at the same
time, or the picture performance will be
unacceptable.
Do not connect the DVD player/satellite
receiver and VCR to the same video channel
on the TV. (See the illustrations, which show
the DVD player/satellite receiver connected to
Video-1 on the TV, and the VCR connected to
Video-2 on the TV.)
The unauthorized recording, use,
distribution, or revision of television
programs, videotapes, DVDs, and other
materials is prohibited under the
Copyright Laws of the United States and
other countries, and may subject you to
civil and criminal liability.
