Connections and initial set up

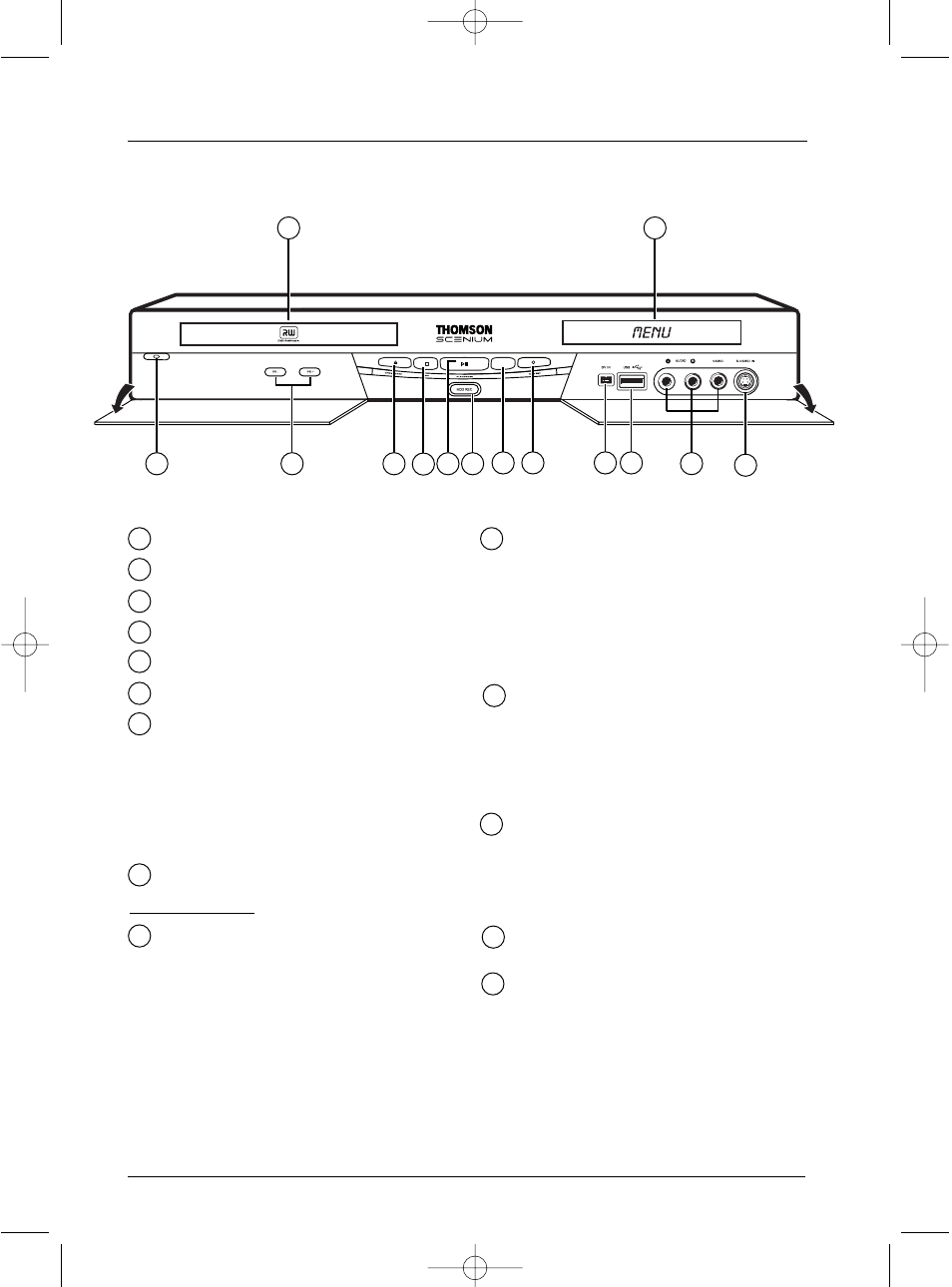

The front of your player recorder

On / Off

Change channel or skip chapter.

Open and close the drawer.

Stops the playback or recording.

Playback or freeze frame.

HDD REC

- To record to the hard disc.

To select the audiovisual sources
(appliances connected to the AV sockets):

AV 2

- Appliance connected to

SCART IN

(satellite received, decoder, etc.).

AV 3

- AUDIO/VIDEO sockets on the

front panel.

Note: USB, DV IN sockets

no selection

DVD REC

- To record to a

DVD R/RW.

Behind the flaps:

DV IN socket (input) - This socket, also
known as an IEEE 1394, allows the display
and/or copying of sound and images from
a digital video camera

Note: to display the images, select DV-CAM in
the main menu

USB

socket - La prise

USB

socket is used

to play and/or copy JPEG images, MP3 files
or AVI files.

Note: recognised players: USB 1.1 MASS
STORAGE CLASS.

Note: to access the peripheral files, in the main
menu select USB Device.

The AUDIO-VIDEO sockets (inputs)
allow the viewing or copying of your video
sequences from a camcorder or any other
AV device that provides a composite video
signal and analogue stereo sound.

Note:View the images using the

key.

S-Video socket (input) to connect a
camcorder or any other S-Video device.

Note: do not forget to connect the audio cables
since the S-Video socket handles only images and
not sound. View the images using the

key.

Displays your DVD recorder’s modes of
operation.

Disc tray.
