Recommended Arrester
Type CA-23RS
Manufacturer
DAI-ICHI DENPA KOGYO CO., LTD.
Frequency range
DC – 2500MHz
VSWR
No more than 1.1
Loss
No more than 0.2dB
Withstand power
200W PEP
Discharge breakdown voltage
DC 230V ±15%
Impulse wave discharge voltage
1,000V
Impulse wave current endurance
6,000A
Impulse wave repetitive discharge endurance
(1×40)
µs, 500A, at least 500 times
Insulation resistance at 100Vdc
At least 10,000MΩ
Connector
N-J / N-J
Dimensions
78(W)×48(H)×20(D)mm
Weight 113g

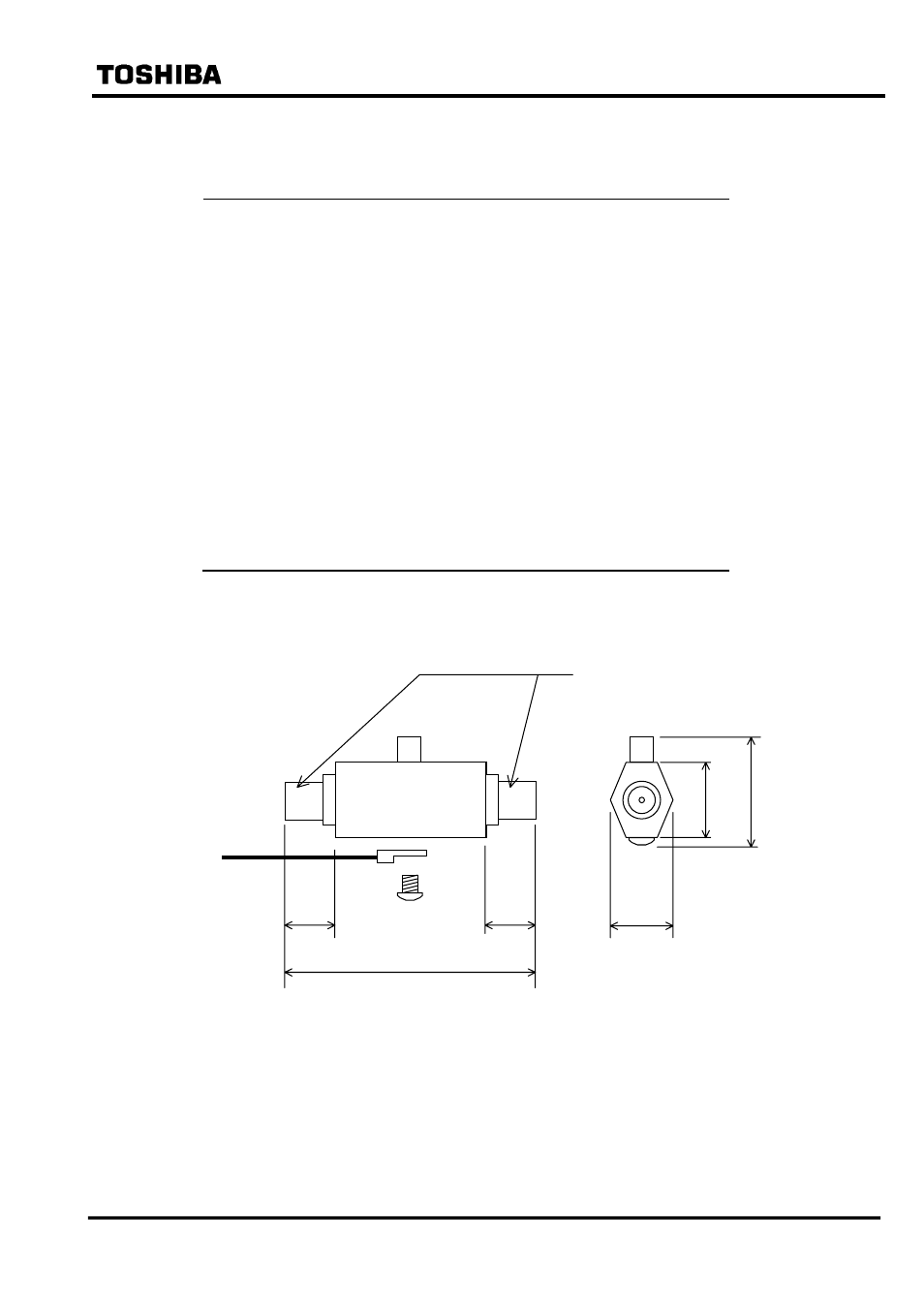

Outline of Arrester
CA－23RS
EARTH CABLE
78
20
30
48
N-J CONNECTOR
φ2.5 – φ3.2
19
19
