13
6 F 2 S 0 7 3 8

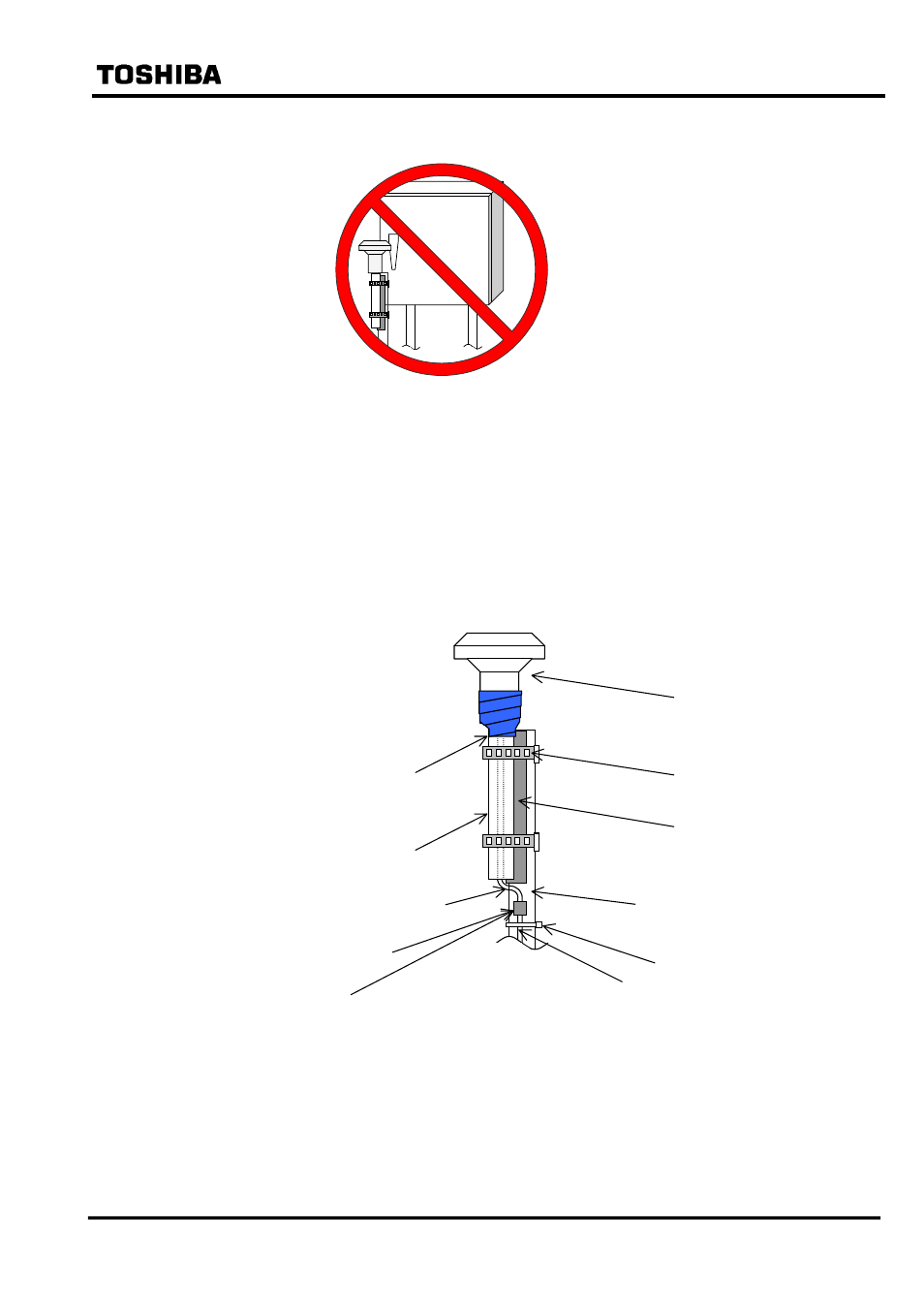

Don’t locate in shade of obstructing objects (Box, antenna, etc.).
Don’t locate in shade of
obstructing objects
(Box, antenna, etc.)
Next, connect the antenna to the arrestor with a coaxial cable.
The following antennas are recommended: GPA-014B or GPA-017S manufactured by Furuno
Electric Co., Ltd. The specifications for and dimensions of these antennas are described in
Appendix C.
The antenna should be fixed to a support pole with Debe clamps and U bolts. An example
installation of the Furuno Electric antenna, using the accompanying clamps, is shown in Figures
6.3.1, 6.3.2 and 6.3.3.
Parker clamp
Antenna
Support pole (φ25 to 70)
Auxiliary mounting
bracket
Convex
Antenna cable
Wind the tape to cover the whole of
junction and U-shaped gap.
Leave the connector slightly loose so
that no excessive force is applied.
Pipe
Connector junction.
Insulation prevention measure
(Autofusion tape, vinyl tape or water-proof cap)
Figure 6.3.1
An Example of Installation, Using GPA-017S for Antenna
