 14 
6 F 2 S 0 7 3 8
Connector junction
Insulation treatment
(Autofusion tape, vinyl tape or
water-proof cap)
Coaxial cable
Antenna
Debe clamp
Support pole ( φ38 to 64 )
Fix the cable to the support
cable by making a circle
while making sure the cable
is long enough.

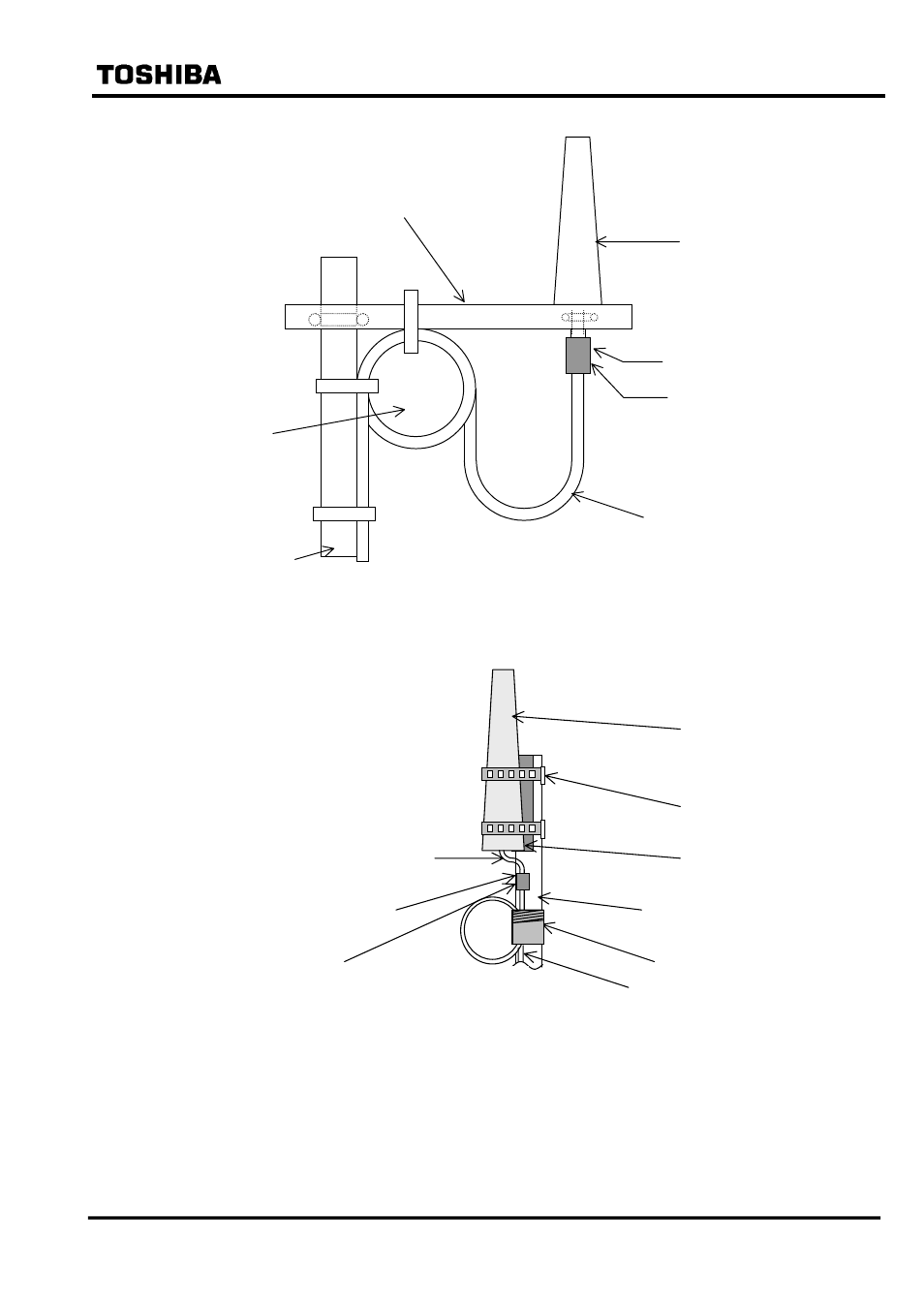

Figure 6.3.2 An Example of Installation, Using GPA-014B for Antenna (A)
Parker clamp
Antenna
Support pole ( φ27 to 90)
Auxiliary mounting
bracket
Tape
Antenna cable
Leave the connector slightly loose so
that no excessive force is applied.
Connector junction.
Insulation prevention measure
(Autofusion tape, vinyl tape or water-proof cap)
Figure 6.3.3 An Example of Installation, Using GPA-014B for Antenna (B)
