10
V

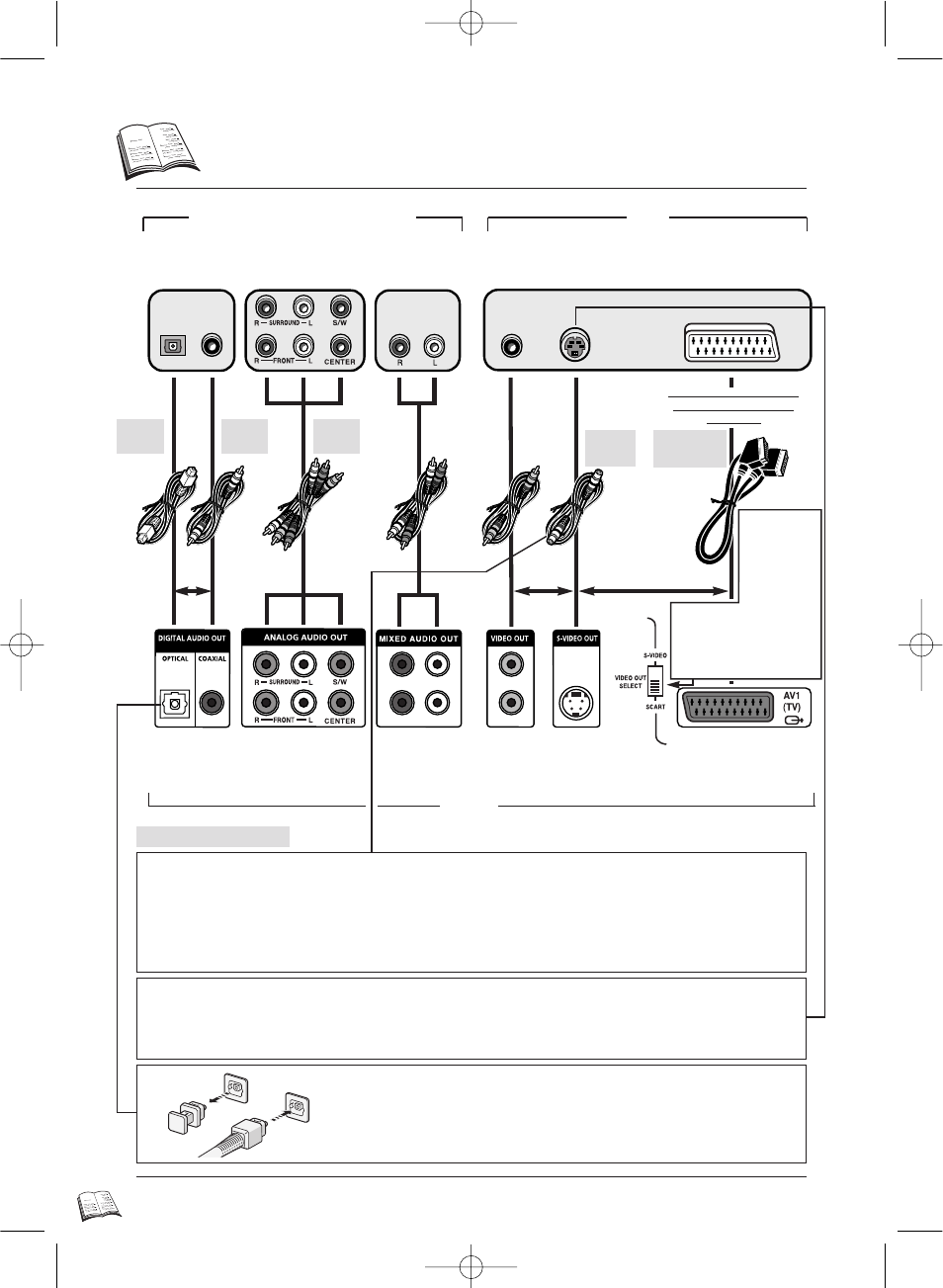

ideo and Audio connections
With a S-Video or Video(cinch) connection, (Not required when using the SCART
connection). Select on your TV set the correct AV input and set the TV screen aspect : 4x3 or
16x9 (see your TV user's manual).
If the SCART socket (with S-Video or RGB) is not free.
Connect your DVD player using a special S-Video cable (not provided) for the video connection
and a Cinch cable for audio left and right inputs (provided).
Note: Always connect your DVD player to the other set (tv, AV Amplifier, ...) with only one
video cable - either SCART, S-Video or Video (Cinch).
Remove the protection cap from the DVD socket and connect the
optical audio digital cable firmly as shown.
Keep the protection cap and always reattach the cap when the
connector is not in use, to keep it dustfree.
V1
V2
R1 L1
R2 L2
PCM/BITSTREAM
5.1
Analog Audio
Audio S-Video Scart Input
RGB
Video
Composite
Digital Audio
Input
TV
Video Inputs
DVD
Audio System or TV
Audio Inputs
Good
Hosiden socket
Better picture
(S-Video connection
page 11) SCART socket
Best picture
(if RGB is selected in
SET UP MENU) (p. 11 )
S-Video
Cable*
Scart Cable*
AV
Cable
AV
Cable
Coaxial
Cable*
AV
Cable*
Optical
Cable*
OR OR OR
* in grey : not provided
Please use an RGB capable
SCART cable (all 21 pins
connected).
The VIDEO OUT
SELECT button at
the rear of the device
permits the S-Video
signal to be sent to
the Scart connector
or the Hosiden
connector. If SCART is selected, the S-
Video signal will not be available at
the Hosiden connector. If S-VIDEO is
selected, the S-Video signal will not be
available on the Scart connector.
