ELECTRO-VOICE ® X-Line TM Rigging Manual 11

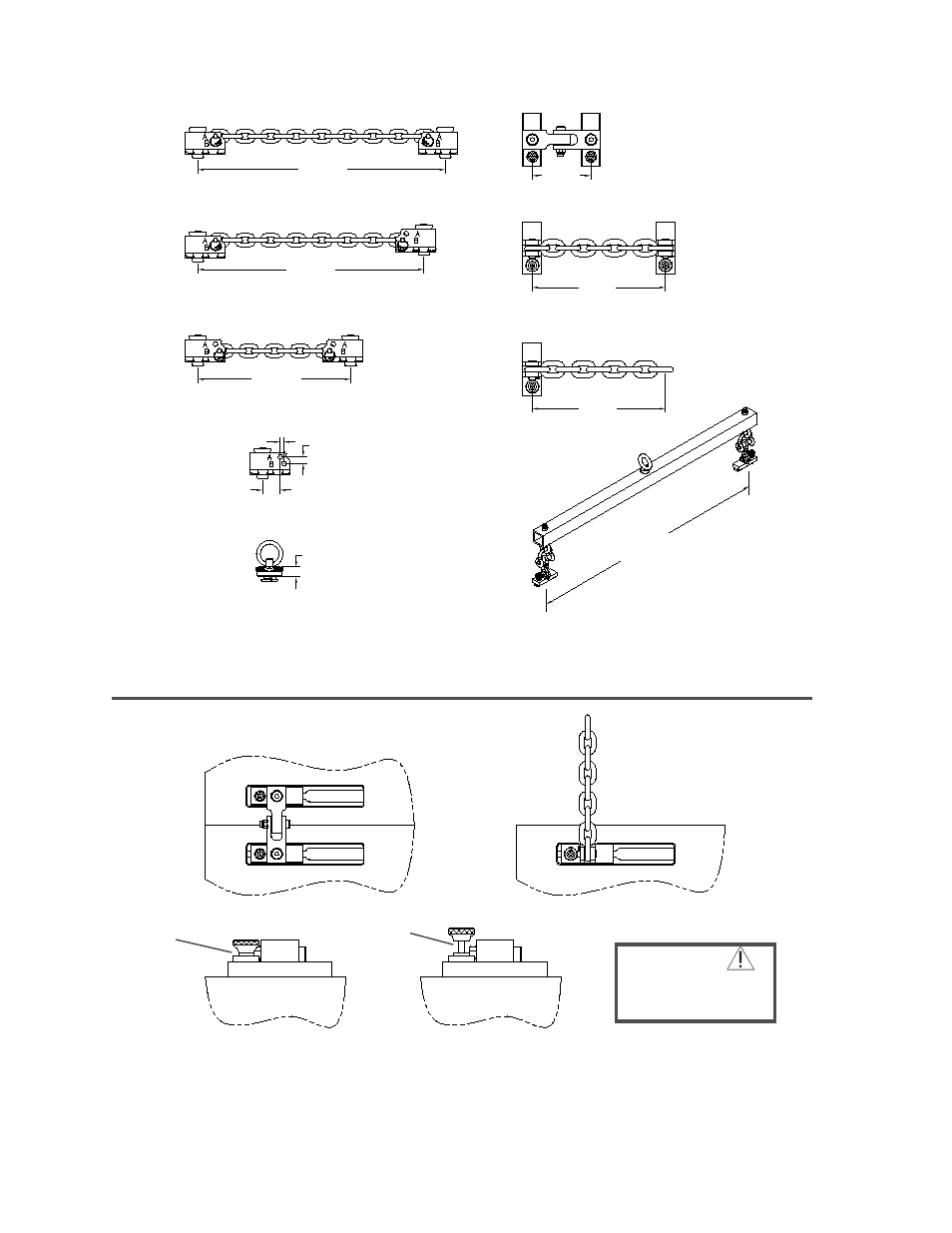

Figure 4:
External Rigging Hardware Details
Figure 5:
Rear Rigging Hardware Installation Details
Xvhl Linking Hinge
Xvhg Grid Hinges,
Xvhp Pickup Hinges,
or Xvbp Pull-Up Bar
CAUTION
Hinge Locking Pins Must
be Fully Engaged In Track
Before Lifting Overhead
16.375in
(416mm)
Xvsl Front Linking Strap 2.5lb (1.1kg)
(A-A Configuration Shown)
14.683in
(373mm)
Xvsd Front Downfill Strap 2.4lb (1.1kg)
(A-B Configuration Shown)
10.105in
(257mm)
Xvsg Front Grid Strap 2.1lb (1.0kg)
(B-B Configuration Shown)
Xvsf Front Fitting 0.9lb (0.4kg)
0.250in (6.4mm)
0.445in (11.3mm)
1.152in (29.3mm)
RS-1B Double-Stud Fitting 0.4lb (0.2kg)
0.875in
(22.2mm)
Xvhl Rear Linking Hinge 3.1lb (1.4kg)
Xvhg Rear Grid Hinge 2.7lb (1.2kg)
Xvhp Pick-Up Hinge 1.7lb (0.8kg)
Xvbp Pull-Up
Bar Assembly
22.9lb (10.4kg)
3.880in
(98.6mm)
8.804in
(224mm)
39.42in
(1001mm)
8.804in
(224mm)
INCORRECT
CORRECT
