Features and
Benefits
WSHP-PRC003-EN 10
Design Advantages
The horizontal and vertical configura-
tios range in capacities from 1/2 to 5
tons. The innovative designs offers
superior field flexibility at the jobsite
along with service accessibility.
GEH 1/2 to 5-Ton Cabinet
The GEH cabinet design includes a
modular platform that utilizes similar
parts and assemblies throughout the
product line. It is constructed of heavy
gauge (non-painted) galvanized metal
for maximum durability and corrosive
resistive exterior.
The cabinet front allows service access
for the controls and refrigeration cir-
cuitry. Water-in/out connection and
high/low voltage hook-up is accom-
plished at the 45-degree corners on the
front-side of the equipment.
The unit offers six product variations of
return-air and supply-air combinations
which may be order-specific or job-site
modified.
See Figure 1 component plat-
form location.
GEV 1/2 to 5-Ton Cabinet
The vertical design, model GEV
includes a modular platform utilizing
similar parts and assemblies to the hor-
izontal to provide a repetitious look and
feel for installation and maintenance
personnel. It is constructed of heavy
gauge (non-painted) galvanized metal
for maximum durability and corrosive
resistive exterior.
The cabinet front allows service access
for the controls and refrigeration cir-
cuitry. Water-in/out connection, drain
connection, and high/low voltage hook-
up is accomplished at the 45-degree
chamfered corners on the front-side of
the equipment. The vertical design
offers four product variations of return-
air and supply-air combinations.
The GEV model’s supply air arrange-
ment may be field converted through a
service kit to aid in stocking of a single
unit variation.
See Figure 2 for compo-
nent platform location.

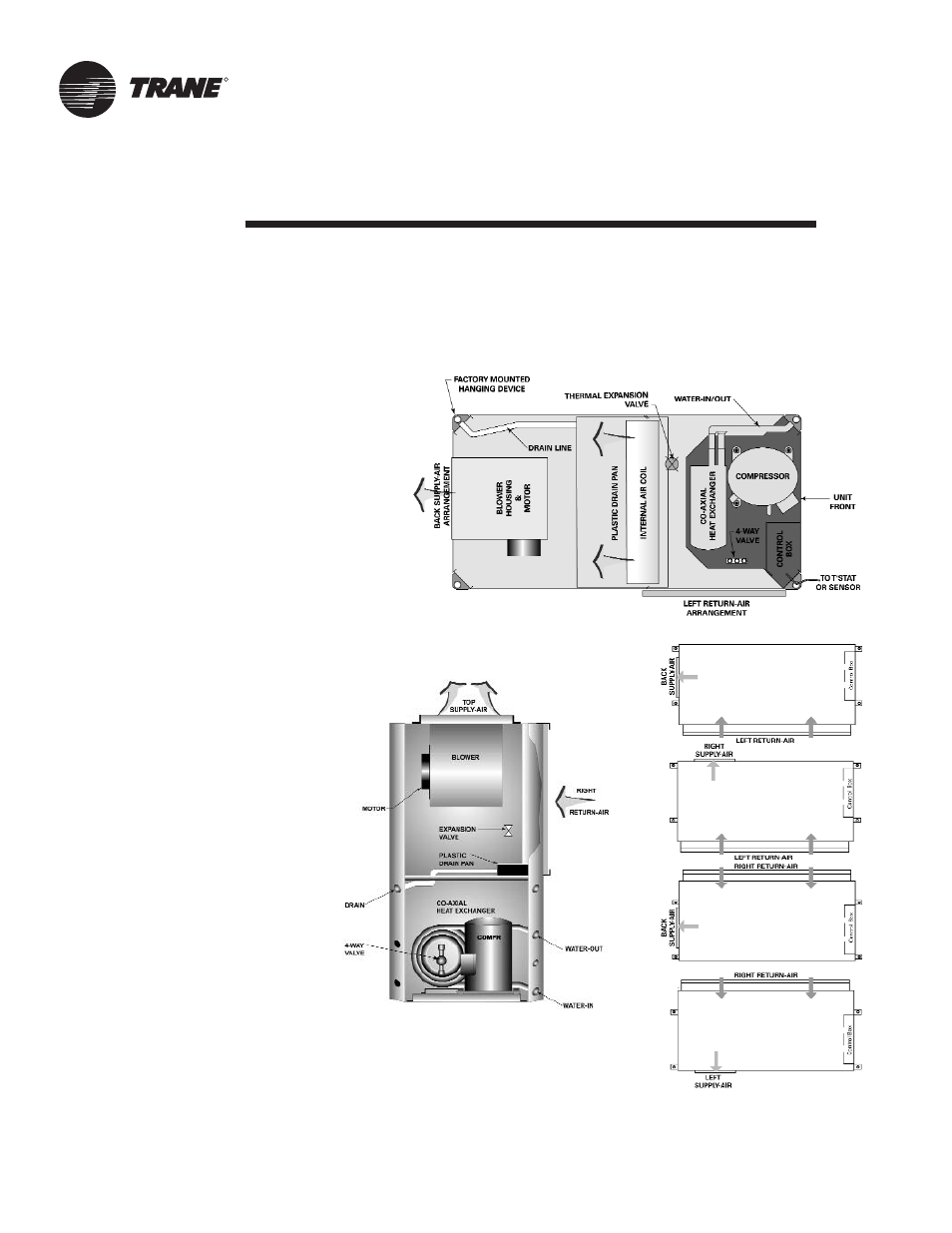

Figure 1: GEH Component platform location
Figure 2: Component platform
location
Figure 3 Large ton GEH air side
combinations.
