18
• The > MONITOR terminals output the TV
program or video (A1, A2/DVD, A3) signals
being displayed on the screen.You can record
a TV program or video signals by connecting a
VTR from the output terminals (
> MONITOR)
to the input terminals of the VTR. However,
except for personal use, you are not allowed
to use video or sound you have recorded
without consent of the owner of copyright
according to copyright law.
• When playing back DVD images by connecting
to COMPONENT VIDEO INPUT, the ( >
MONITOR) video terminal will output “Y”
(Black and White) signal only. In such condition,
abnormal images will occur if recorded.
Notes
• Do not connect one VTR to the output and
input terminals on the TV simultaneously, it
may cause interference.
• Your DVD video player should have either the
P
B
, P
R
or C
B
, C
R
output terminals. This TV is
available for either type.
* Connect either the S-VIDEO terminal or the
VIDEO terminal of the input terminals a(1).
If you use both terminals at the same time,
unusual phenomena may happen to the TV
set and/or VTR.
To select the video input source
Each time you press a, the “A1” mark,“A2”
mark (or “DVD” mark when there is a DVD
P
B
/C
B
input), “A3” mark, and channel position
number appear and selected cyclically.
2 1
Y W R
Y W R
Y R L/MONO
COMPONENT
VIDEO OUTPUTS
AUDIO
OUTPUTS
W R R B Y
P
B
/C
B
P
R
/C
R
Y
W
R
B
Back
DVD (or another VTR)
VTR
VTR for recording
To video input
To audio inputs
To audio outputs
To
antenna
output
: Signal flow
: yellow (video/Y)
: white (audio L/MONO)
: red (audio R, P R /C R )
: blue (P B /C B )
Y W
W R Y
R
Video camera
To video
output
To audio
outputs
To S-VIDEO or VIDEO output
*

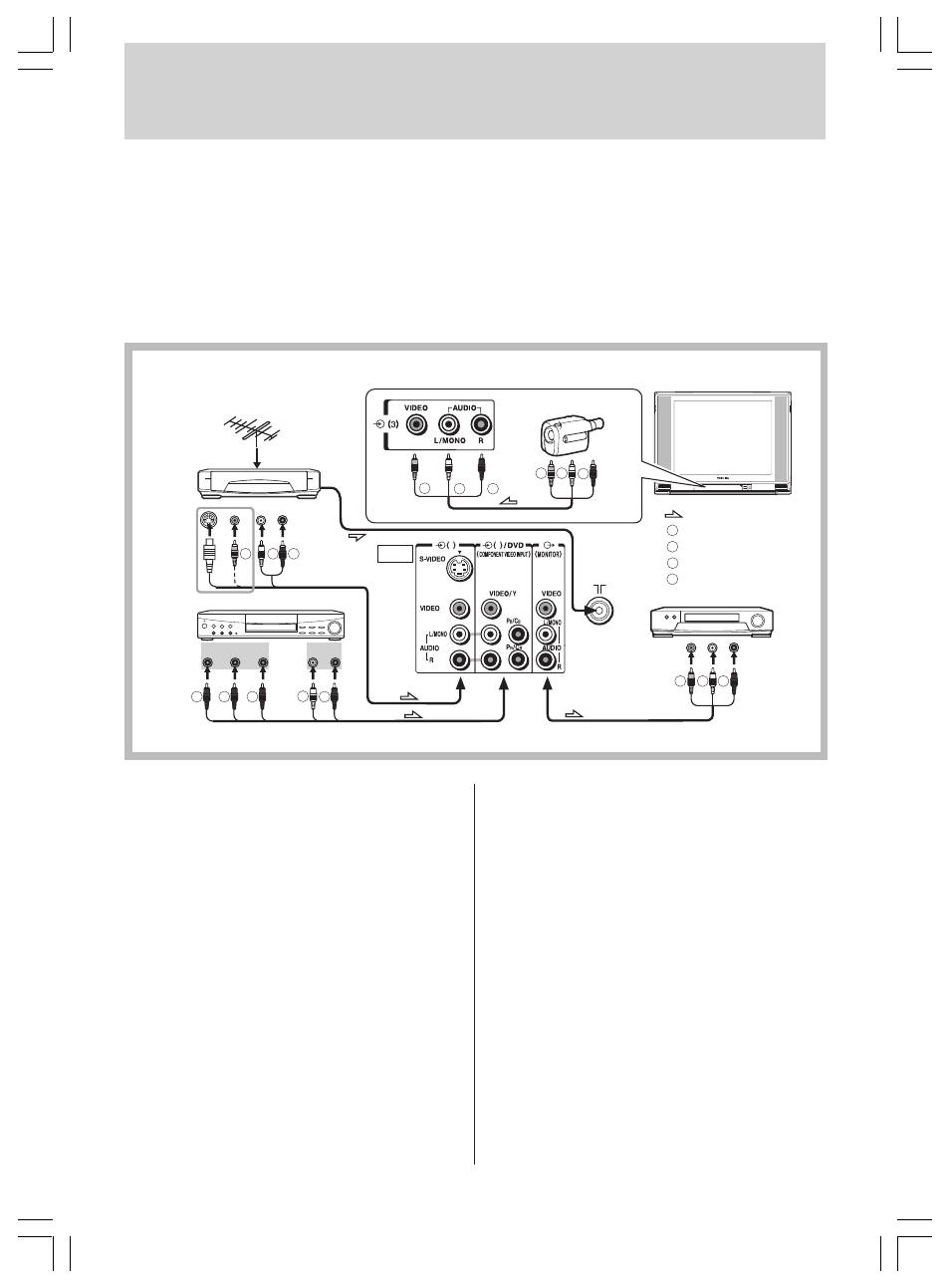

EXTERNAL EQUIPMENT CONNECTIONS
• You can connect video equipments such as a VTR and video camera to this TV and enjoy the
high quality picture. The front A/V terminal a (3) is convenient when hooking up video camera
or game equipment.
• The following describes how to use and connect the TV with other AV equipment. Refer to the
owner’s manual of the equipment to be connected as well.
• If your video equipment has an S-VIDEO output terminal, connect it to the S-VIDEO a (1) input
terminal (special S-VIDEO type) of the TV. If not, connect it to the video terminal (phono type).
• Connection cables are not supplied.
Caution: Do not plug in any power cords until you have finished connecting all equipment.
