Removing and Installing a Backplane in Modular Nest 9 or 21 Enclosure Page 29 of 34

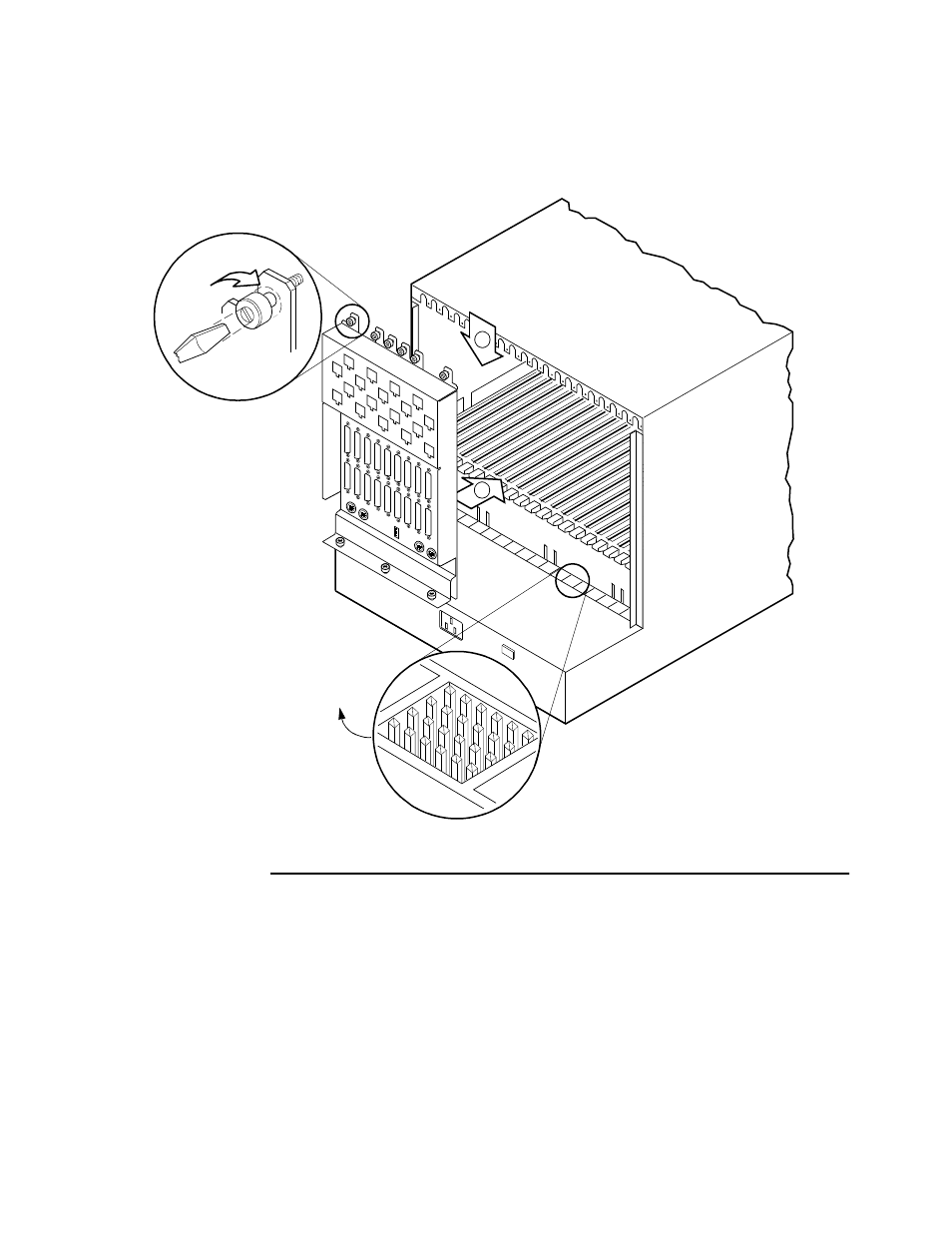

Figure 14. Removing a 326X Backplane
A
B
Avoid Bending
These Male Pins
Push and Turn in
Direction of Arrow
