Telenetics Sunrise Series Modular Nest - Manual (Page 21)

Part No. TEL–09949, Rev A
June 2001
Pre-Installation Information and Activities Page 21 of 34

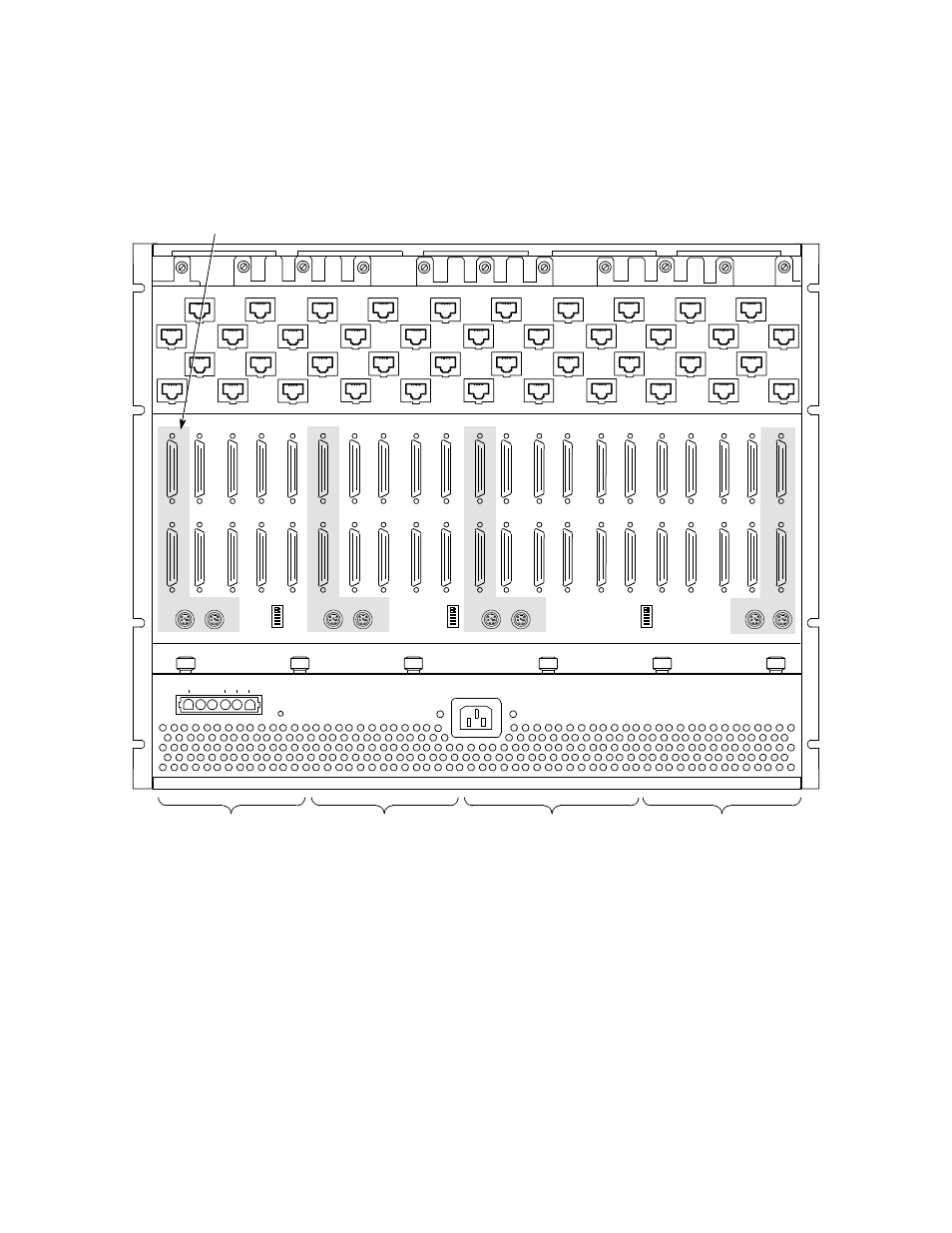

Figure 10. NC Port Locations, Bus Master Locations, and Groups
(21-Card Backplane)
COMM
Network Control Group 1 Network Control Group 4 Network Control Group 3 Network Control Group 2
+5V +12V -12V
AC POWER
NC Port and Bus Master Slots
Are within Shaded Areas
OUT
NC
MSTR
2
IN OUT
NC
MSTR
1 NC BUS NC
MSTR
2
IN OUT
NC BUS NC BUS NC
MSTR
2
IN OUT
