Network Options

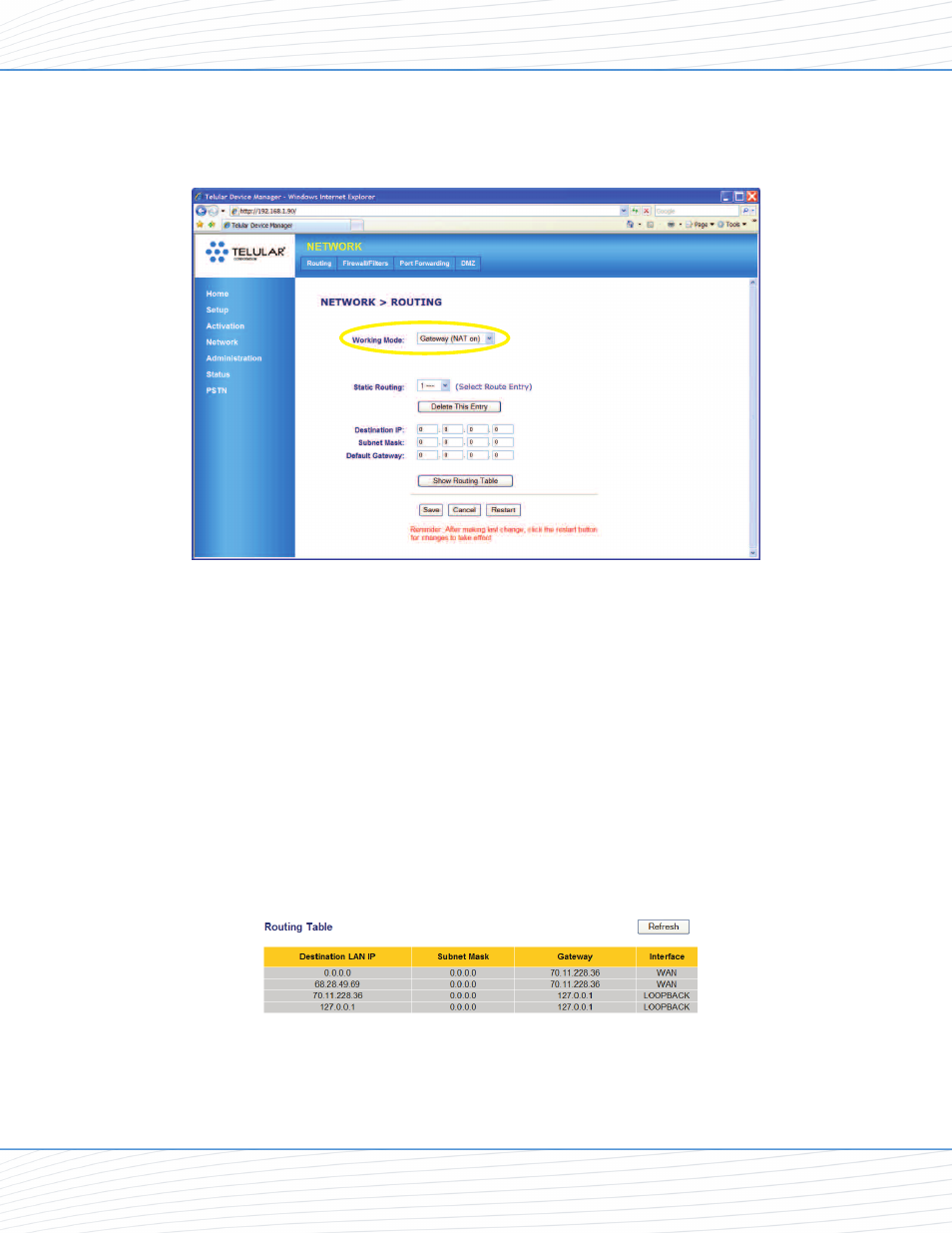

Network > Routing
Routing settings allow you to control the unit’s network routing configuration. There are
two primary options available, by selecting a Working Mode (1): Gateway (NAT on) and
Router (NAT off).
Gateway (NAT on): Select this option (above) only if you need to use a Network Access
Translator (NAT) to alter IP packets as they pass through a router or firewall. The following
options are available under this configuration:
●
Static Routing: Select a Route Entry number (1–20).
●
Destination IP: Enter a destination IP address for the selected Route Entry number.
●
Subnet Mask: Enter a subnet mask for the selected Route Entry number.
●
Default Gateway: Enter the IP address of the default gateway or router.
Repeat for as many Static Routing numbers you wish to set up. To see your currently
configured routes, click Show Routing Table.
11
