Toshiba CS3910BH User Manual
Page 9
8
D4134051A
(2)

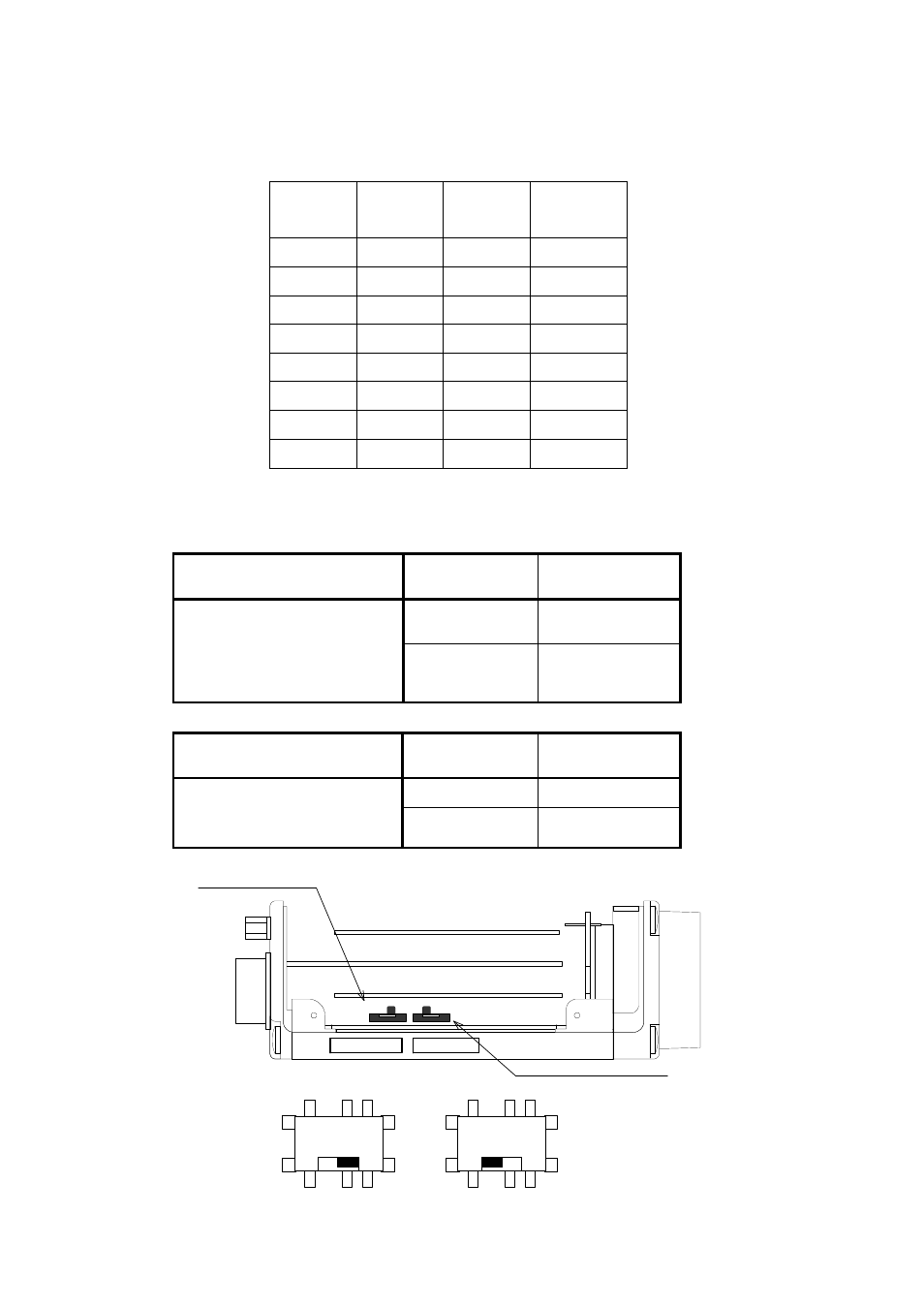

Shutter Speed setting
Internal DIP switch from 2 to 4)
Shutter speed is 1/15s fixed when Shutter mode is normal shutter.
SW2-2
SW2-3
SW2-4
Shutter
speed
OFF
OFF
OFF
1/30
ON
OFF
OFF
1/60
OFF
ON
OFF
1/125
ON
ON
OFF
1/250
OFF
OFF
ON
1/1000
ON
OFF
ON
1/2000
OFF
ON
ON
1/4000
ON
ON
ON
1/10000
（3）External sync setting(HD/VD）
(a)SW１
Function (indication)
Switch
selection
Function
selection
DATA
DATA OUT
CONNECTOR
External sync connector
selection
（DATA ⇔ DCIN）
DCIN
DC IN/SYNC
CONNECTOR
(b)SW2
Function (indication)
Switch
selection
Function
selection
IN
Input
External sync input/output
selection
（IN ⇔ OUT）
OUT
Output
HD･VD
connector selection
PROCESS
TIMING
CPU
REG
SW1
HD･VD IN / OUT selection
SW2
DATA ⇔ DCIN
ＩＮ ⇔ OUT
DC ＩＮ/SYNC Connector side
SW1
HD/VD IN side
SW2
