15

D4134051A

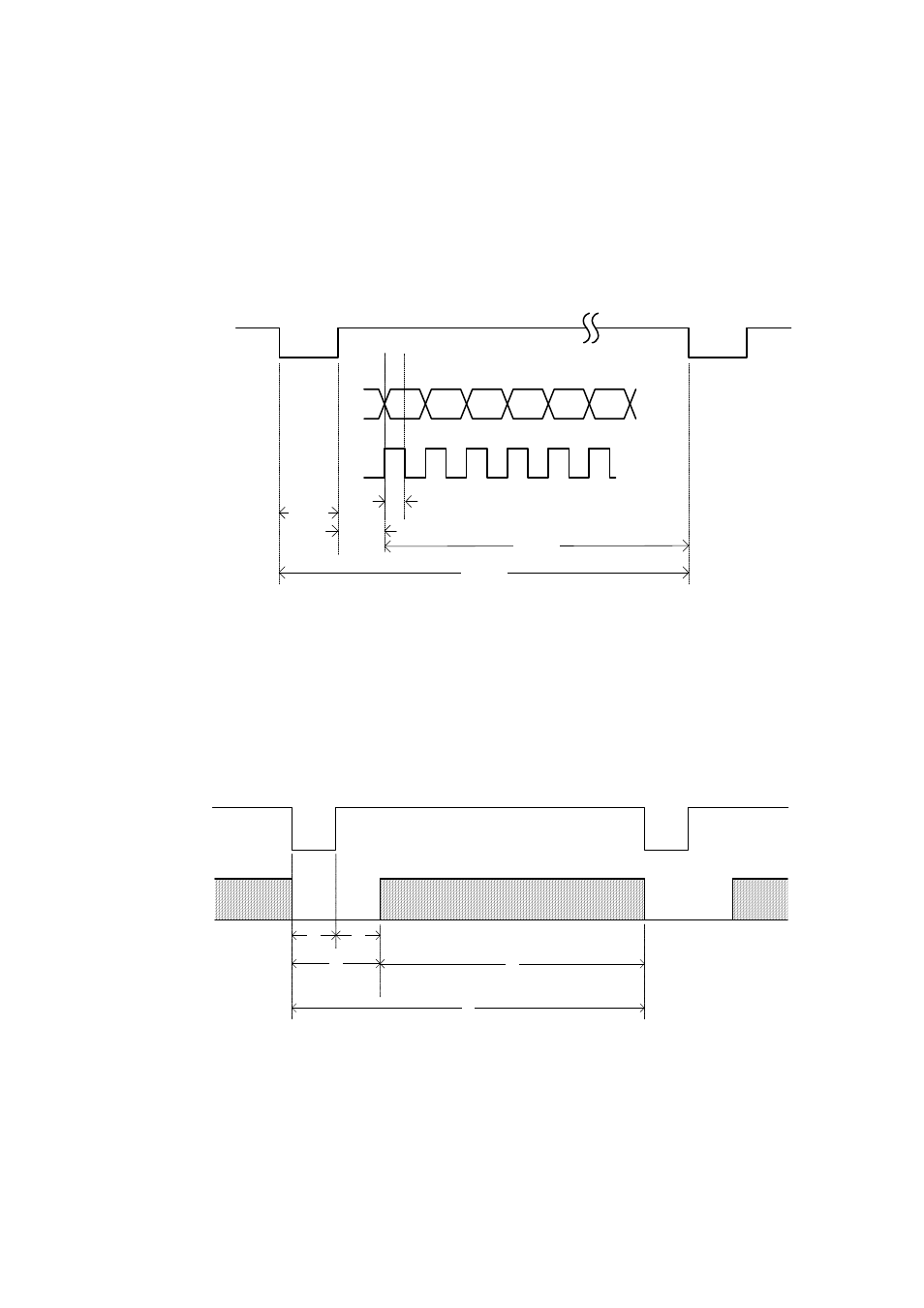

6. TIMING CHART

6-1. Digital output

EIA RS644 standard (LVDS)

Driver output voltage Plus/minus 350mV (Differential output) / 100-ohm

H Rate

Total clock counts:

1790CLK / 1H

DATA counts:

1392CLK / 1H

CLK

34.92ns

V rate phase: Same as one in analog timing-chart

V Rate

A=3H

B=3H

C=6H

D=1040H

E=1046H

CLK

DATA

HD

276CLK

1392CLK

1790CLK

17.5ns

122CLK

C

D

E

DATA

VD

A

B
