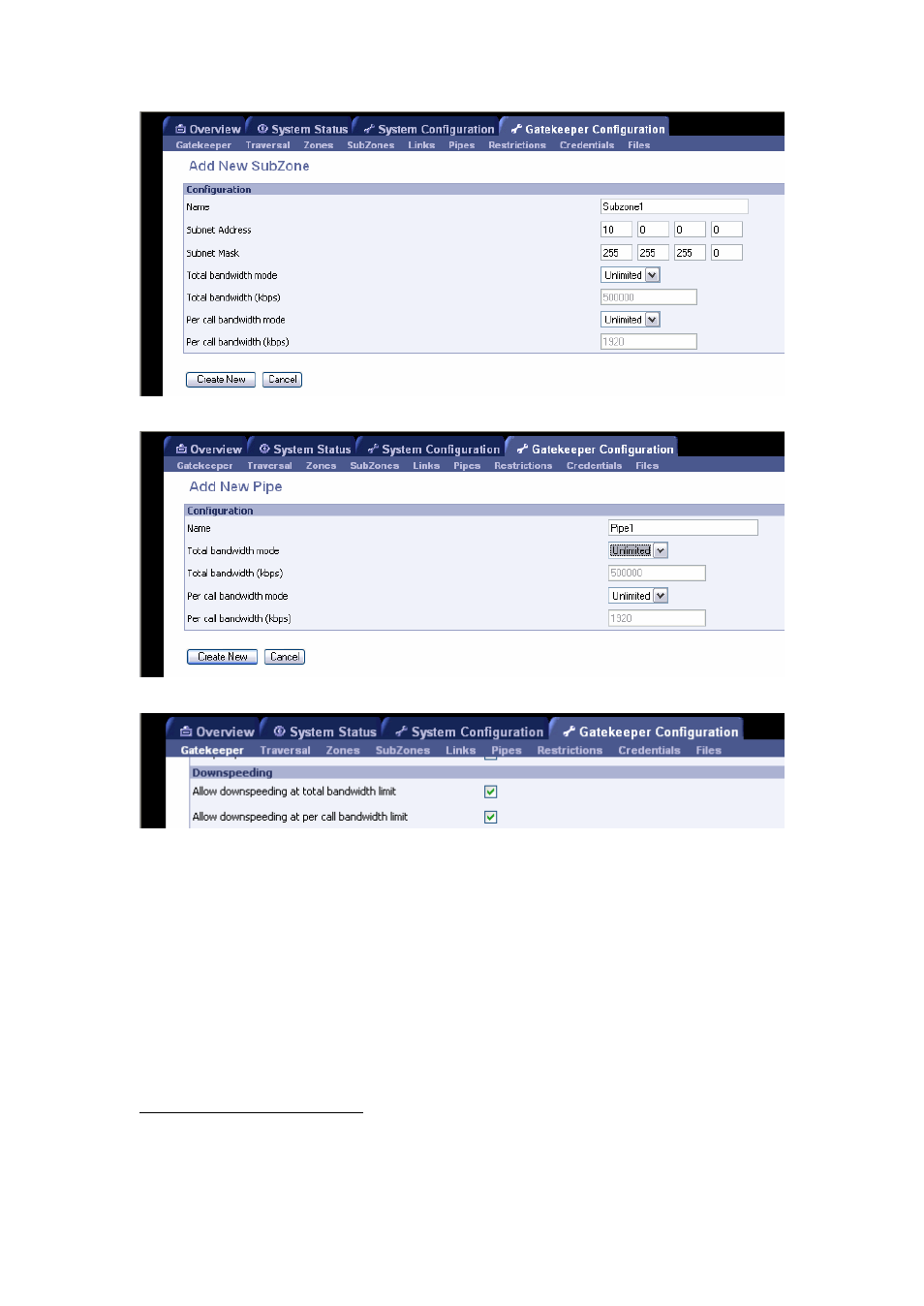

Figure 6 Configuration of a SubZone through the web interface
Figure 7 Adding a new Pipe through the web interface
Figure 8 Configuring the downspeeding parameters of the Gatekeeper
3.6.1 Bandwidth Control and Firewall Traversal
When a Border Controller and Gatekeeper are being used to traverse a firewall, an additional
zone and subzone come into use.
The traversal zone is used to represent the zone containing the Border Controller this
Gatekeeper is paired with. This zone is automatically added for you. The traversal subzone
represents the Gatekeeper itself. When an endpoint registers with the Gatekeeper and places
a traversal call, its media will be routed through the Gatekeeper
1
. The traversal subzone
allows you to control total and per call bandwidths passing through the Gatekeeper. Unlike
other subzones, no endpoints will ever be registered in this subzone.
1 TANDBERG MXP endpoints running F3 and later software can send their media directly to the
Border Controller, depending on the setting of xConfiguration Traversal Allow Media
Direct .
