Installation Instructions
PBM-501L

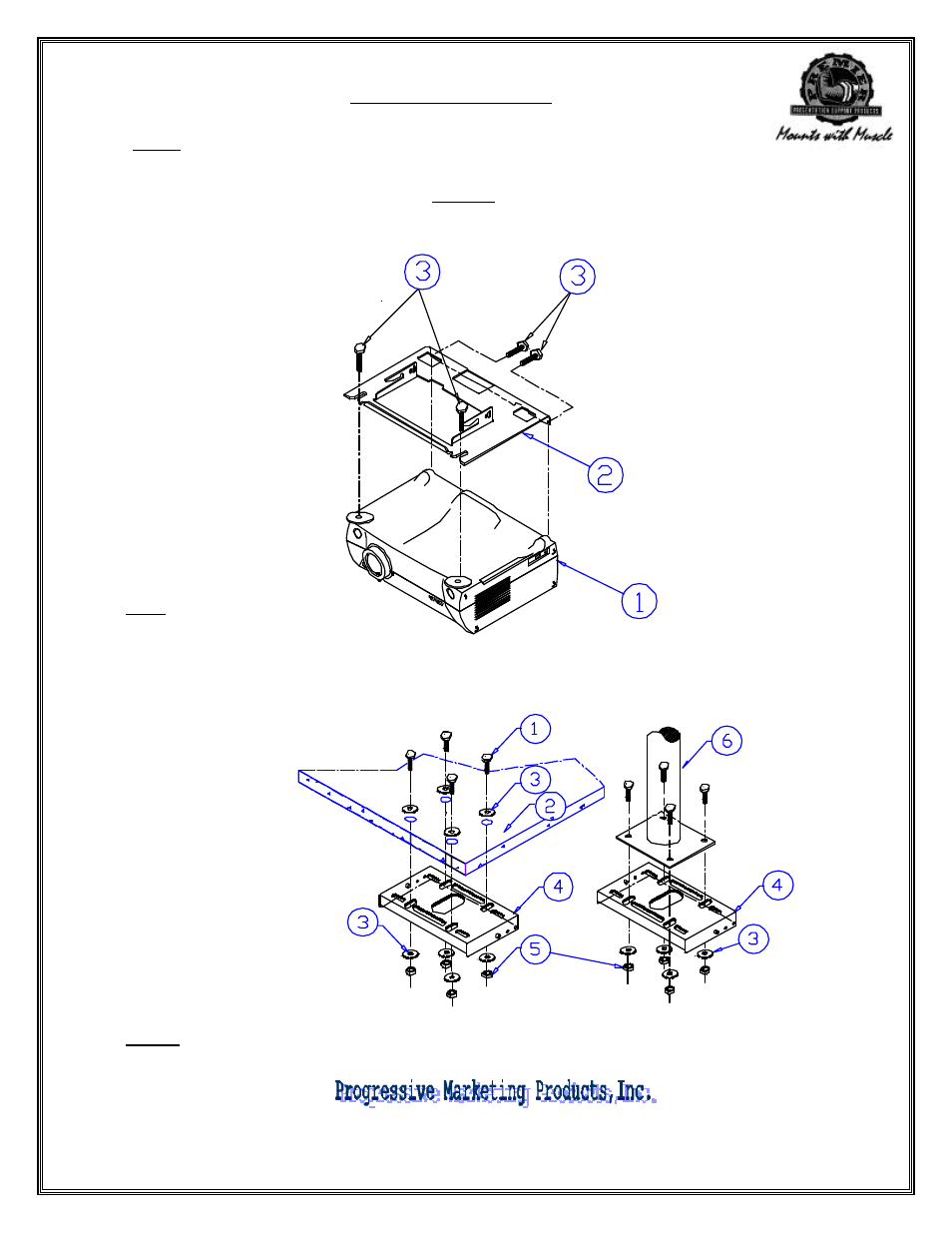

Step 1
Invert the projector and place it on a flat surface. Align the mounting bracket to the mounting holes o n the bottom and
back of the projector. The hinge pin slot opening on the bracket must face the lens of the projector. Secure the bracket
using the (4) 4mmx8mm Knurl knobs (supplied).See detail.
1.Toshiba Projector
2.PBB-501L
3.(4)4mmx8mm Knurl Knob
Step 2
Install the base box securely to the ceiling structure in accordance with proper commercial standards.
Use ( commercially available) suitable hardware depending on the installation requirements.
1.Bolts
2.Ceiling
3.Washer
4.Base Box
5.Nut Bolts
6.ASA-2446 lower tube
NOTE: If ASA-2446 adjustable height suspension adapter is a part of the installation, securely install the
adapter to the ceiling at this time (see detail above)
2980 Enterprise Street, Brea, Ca 92821 / Ph.(800)368-9700 Fax (800)832-4888
E-Mail: [email protected]:http://www.pmpi.com/ 12/97
