600X CompactFlash Card

Transcend Information Inc.

V1.0

51

Contiguous I/O Mapped Addressing

When the system decodes a contiguous block of I/O registers to select the CompactFlash Storage Card, the
registers are accessed in the block of I/O space decoded by the system as follows:

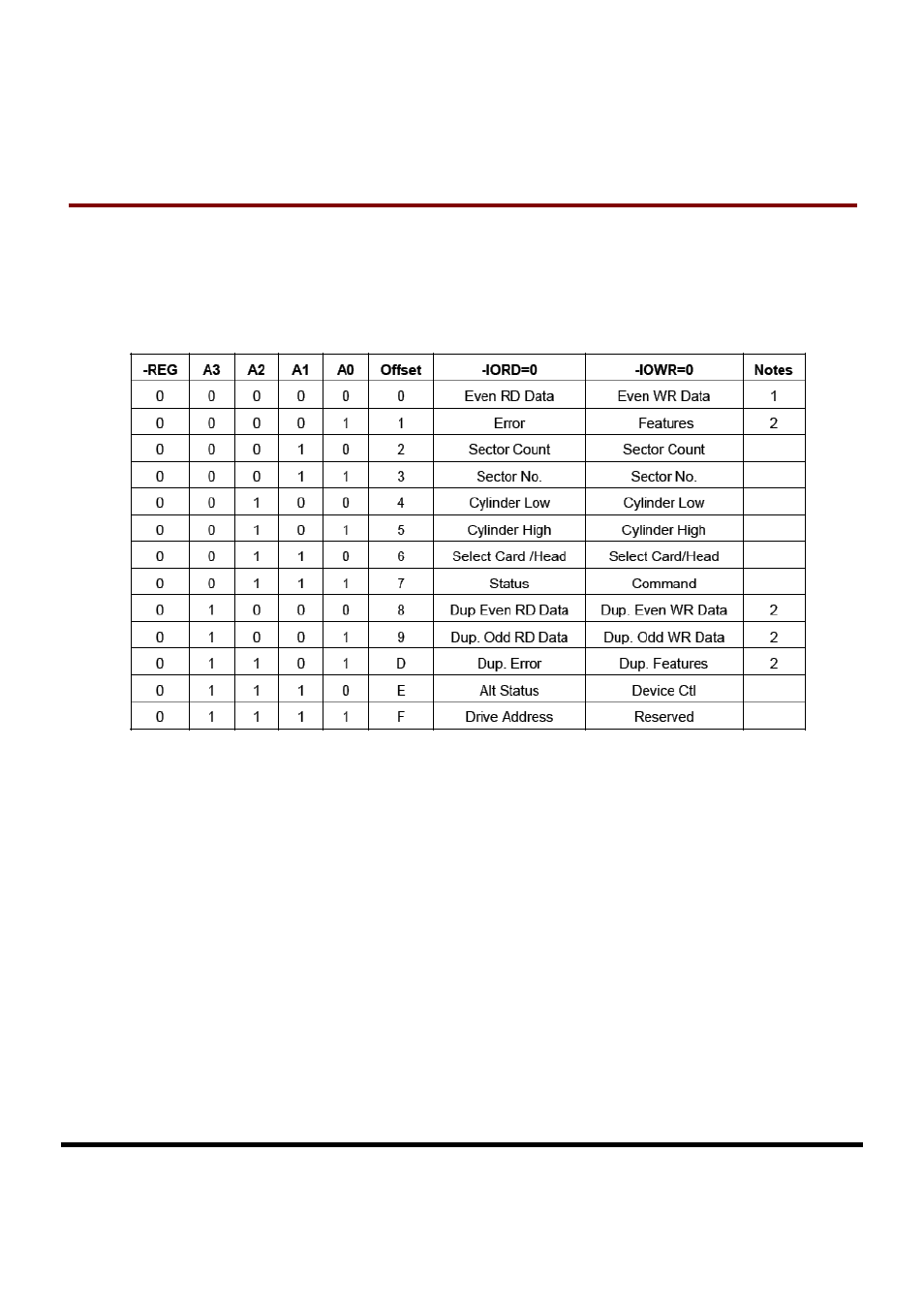

Table: Contiguous I/O Decoding
